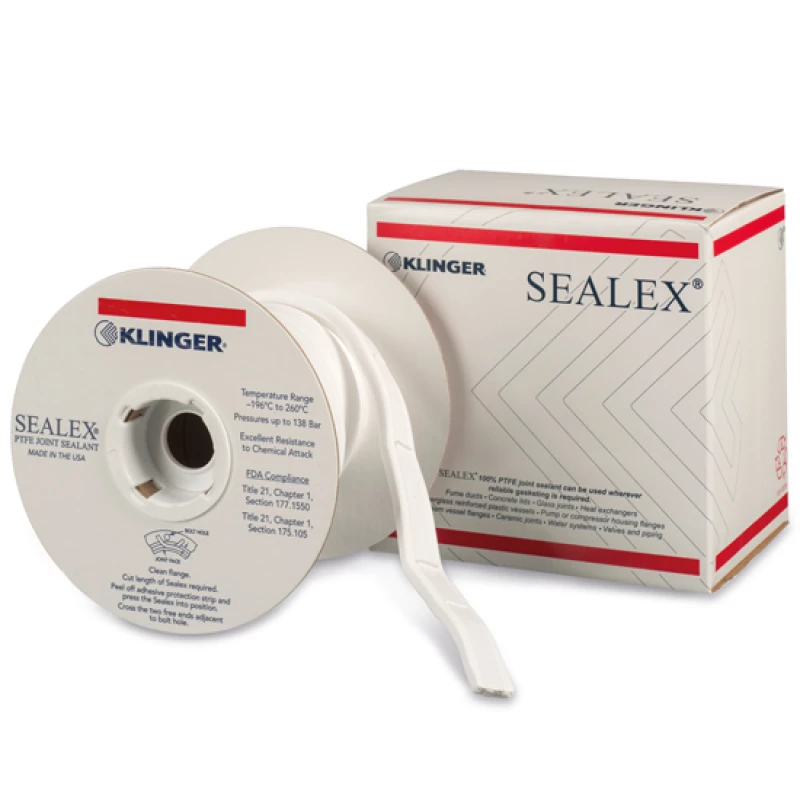

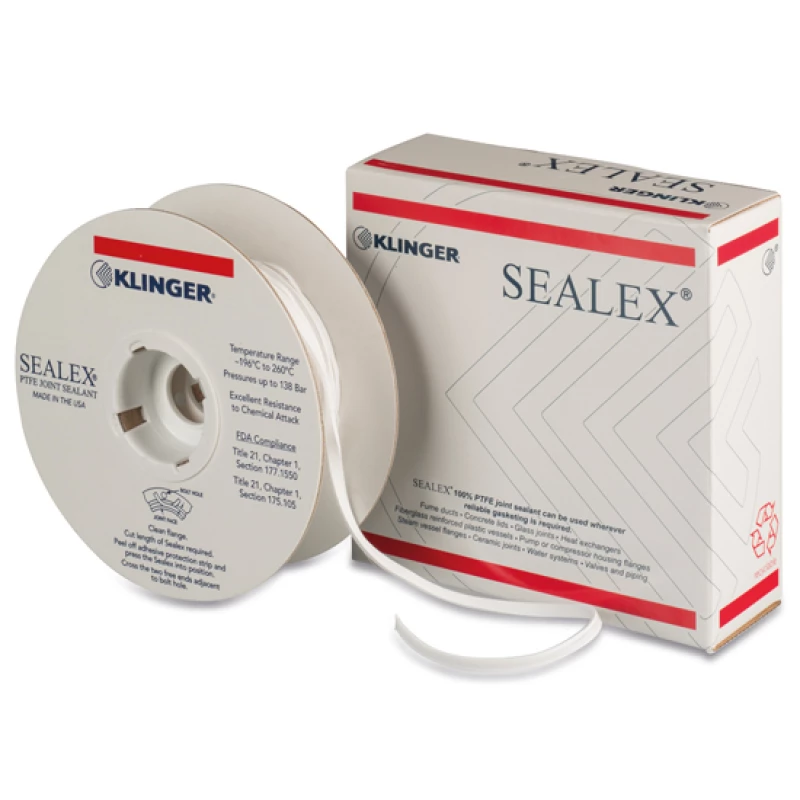

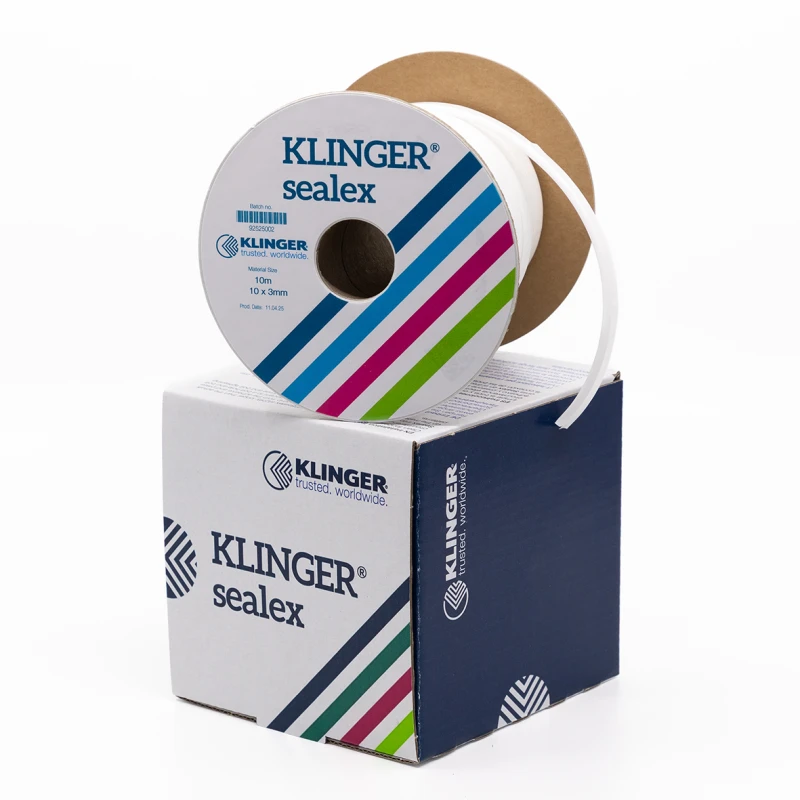

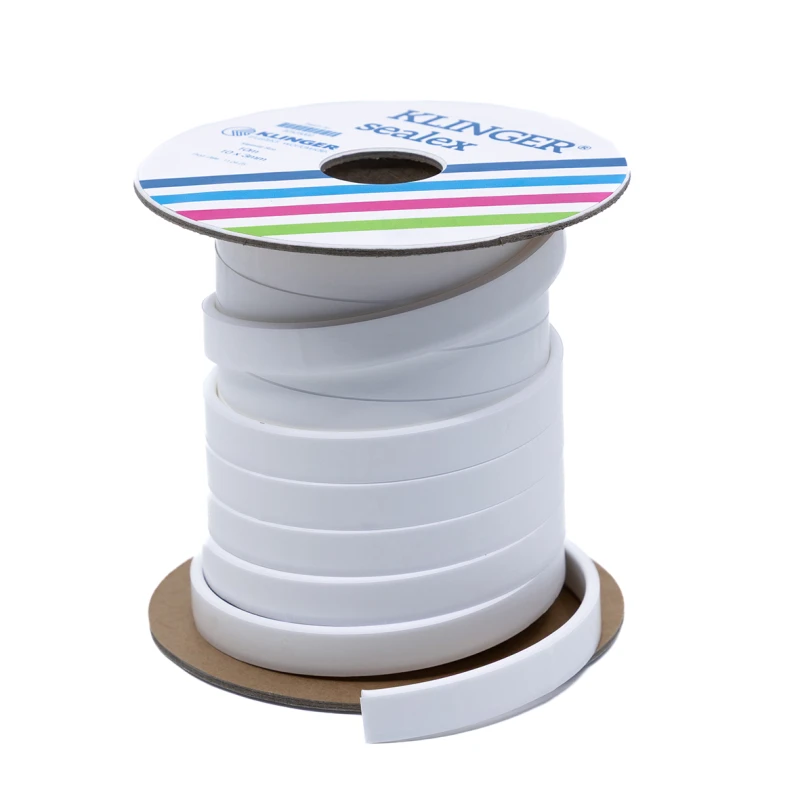

PTFE sealing tape | KLINGER Sealex
Expanded PTFE with adhesive backing
Suitable for: virtually all media in flange connections, where only low bolt loads are available
- Self-adhesive tape to facilitate mounting.
- High compressibility.
- Chemical resistance of PTFE.
- Resistant to creep and cold flow.
Urgency or questions about availability?
Specifications
| Type | KLINGER Sealex |
| Material | PTFE expanded with adhesive backing |
| Color | white on both sides, |
|
|
|
| Compressibility according to ASTMF36A | 60% |
| Springback according to ASTMF36A | 12% |
| Gas permeability according to DIN 3535/4 | < 0,1 ml/min. |
| Pressure resistance | > 100 bar. |
| Temperature range | -196ºC / +260ºC continuous. |
|
|
|
| Chemical resistance | see resistance list |
|
|
|
| Approved/tested by | DVGW VP403 |
| TA-Luft | |
| FDA | |
| EU 1935/2004 | |
| BAM | |
Contact
For more information about our PTFE gaskets, please contact us at:
