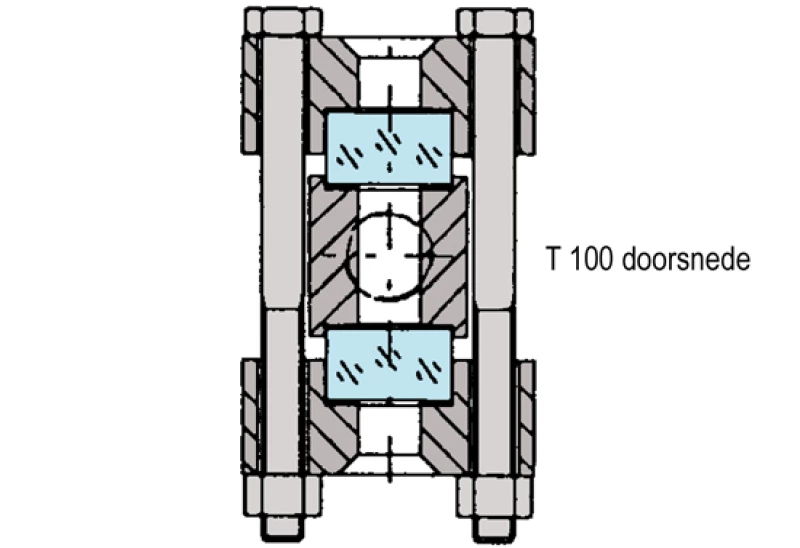

Steel KLINGER transparent level gauge | T 100-D
Flange connection PN 40
Suitable for: steam : max. 30 bar
- Equipped with the original KLINGER borosilicate glasses "extra hard".
- Resistant to high temperatures and extremely pressure and abrasion resistant.
Urgency or questions about availability?
Also available
- illumination: IP20/IP50
- non-frost blocks
Specifications
| Type | T 100-D |
| Material | Steel A 105 N |
| Pressure | max. 30 bar steam / PN100 (process) |
| Transparent glass | Hardened borosilicate, thermally prestressed, type B |
| Glass Protection | Mica |
| Gasket | Graphite |
| Bolt | ASTM-A 193 B7 |
| Nut | ASTM-A 194 2H |
| Flange connection | PN 40 otherwise on request |
|
|
|
|
To be specified when ordering
|
|
|
- pressure and temperature
|
|
|
- medium
|
|
|
- connection and spacing
|
|
Contact
For more information about sight glass devices, level gauges, gauge glass seals, and glass products, please feel free to contact:
