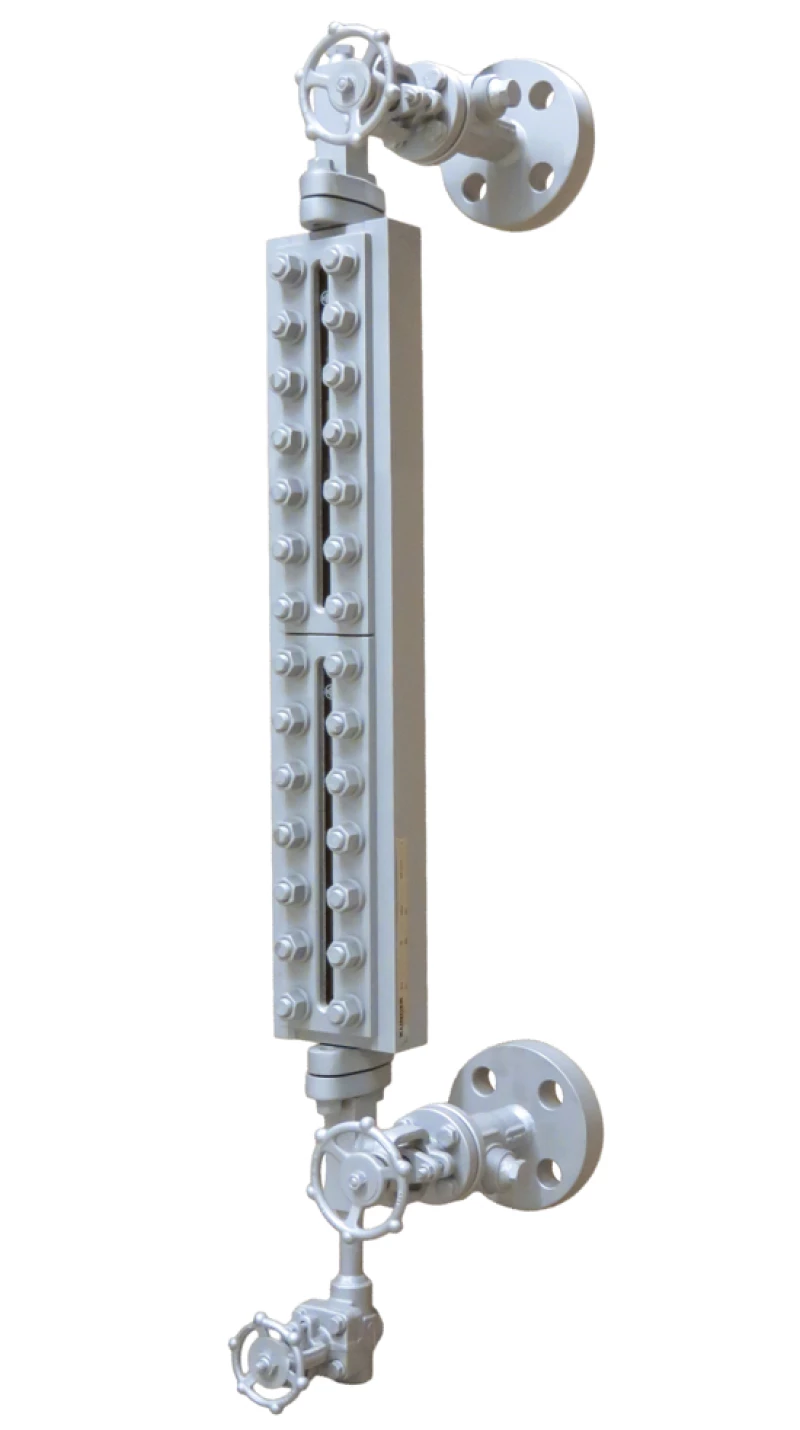

Steel KLINGER transparent level gauge | T 85-RAV
Flange connection DIN or ANSI
Suitable for: steam (85 bar)
- Robust, low-maintenance and reliable.
- Equipped with the original KLINGER borosilicate glasses "extra hard".
- Glass exchange can take place in the plant.
- Extremely pressure and abrasion resistant.
- Resistant to high temperatures.
Urgency or questions about availability?
Also available
- With lighting.
To be specified when ordering
- pressure and temperature
- medium
- connection and spacing
Specifications
| Type | T 85-RAV |
| Material |
Steel A 105 N |
| Pressure | Max. 85 bar |
| Transparent glass | Hardened borosilicate, thermally prestressed, type B |
| Glass Protection | Mica |
| Gasket | Graphite |
| Bolt | ASTM A193 B7 |
| Nut | ASTM A194 2H |
|
|
|
| Flange connection | DIN or ANSI, on request |
Contact
For more information about sight glass devices, level gauges, gauge glass seals, and glass products, please feel free to contact:
