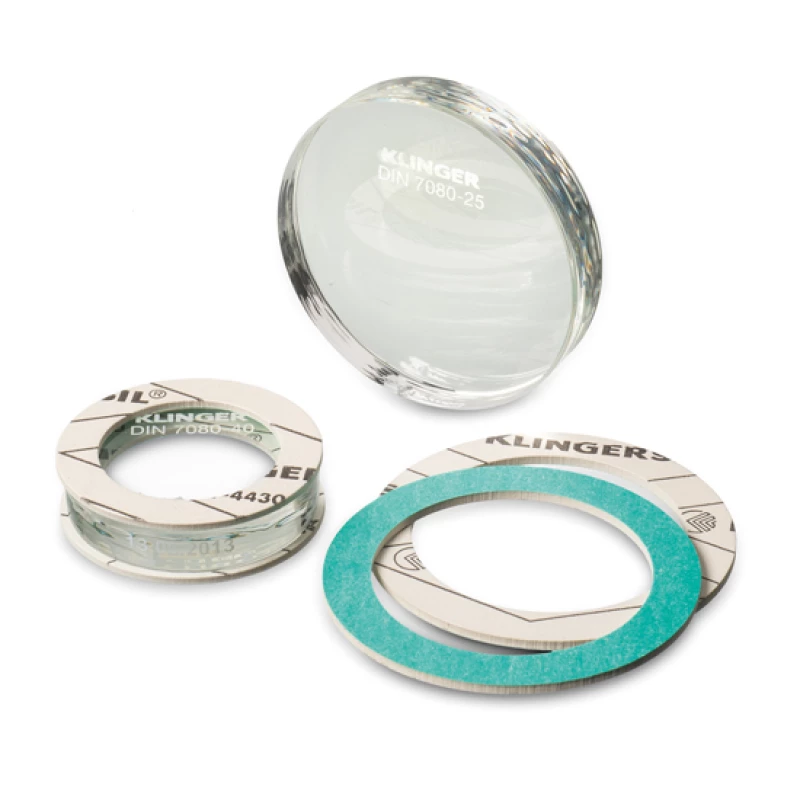

Borosilicate round sight glass | KP-73
Thermal prestressed
Suitable for: steam and process applications, furnaces, silos and boilers
- Packing unit includes: glass and 2 gaskets.
- Directly mountable.
Urgency or questions about availability?
Also available
- glasses with different sizes
Specifications
| Type | KP-73 |
| Material | Borosilicate glass, thermally pre-stressed. |
|
|
|
| Bending strength | > 160 N/mm² |
| Coefficient of expansion | 20/300 < 4,7. 10-6K-1 tested according to DIN 52328 |
| Distortion temp. | tg = 550ºC, tested according to DIN 52324 |
| Resistant to alkaline | Lye class 2, tested according to ISO 0675 |
| Acid resistance | Acid class 1, tested according to DIN 12116 |
|
|
|
| Temperature | -273ºC to 300ºC |
|
|
|
| According to | Ö-Norm M 7353/DIN 7080 |
Contact
For more information about sight glass devices, level gauges, gauge glass seals, and glass products, please feel free to contact:
