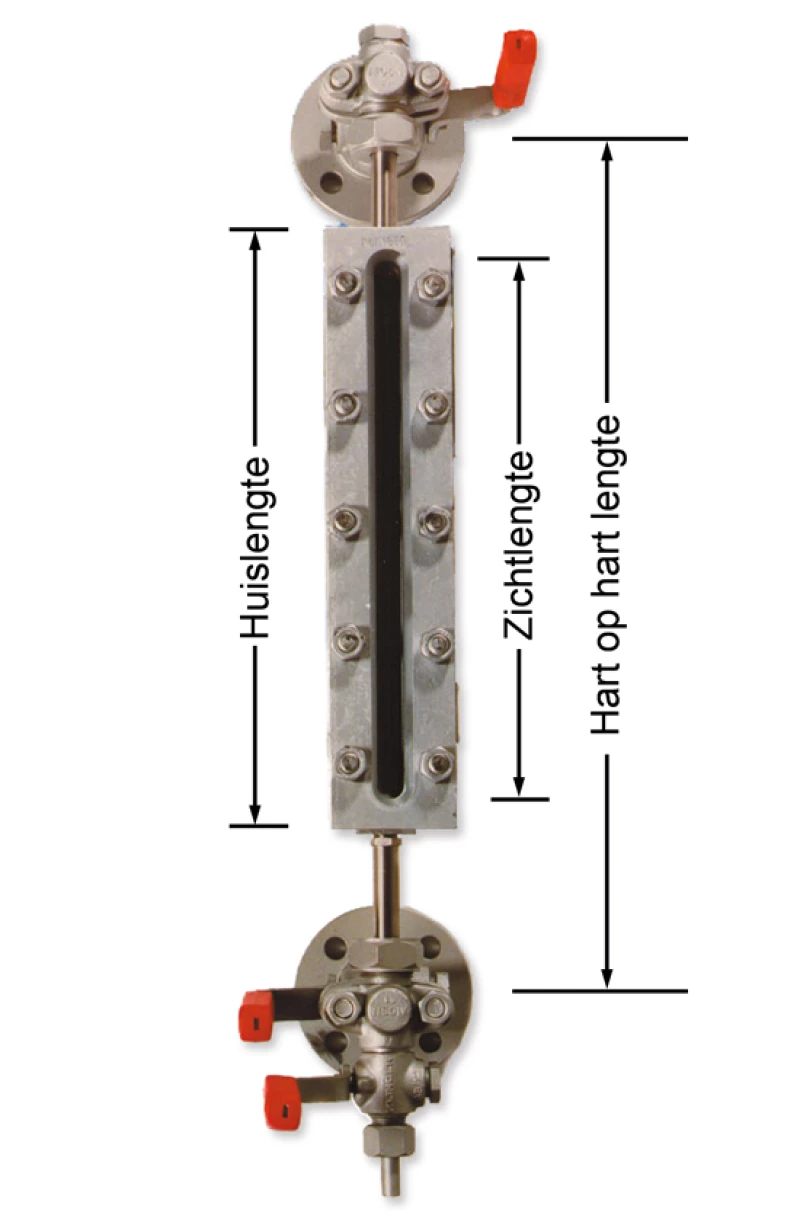

Steel KLINGER reflex level gauge | R 100-D

Suitable for: water, liquid gases, low-pressure steam (22 bar max.), glycol, ammonia

Clear light/dark contrast, clear level reading, easy glass change, left as well as right model available (easy to convert).
Flange connection DN 20/DN 25 standard.
Other connections on request.

Additional information

Type	R 100-D
Material	Steel A 105 N
Steam	Design pressure 22 bar, working pressure18 bar
Pressure class	ANSI 600 lbs/PN 100 (process)

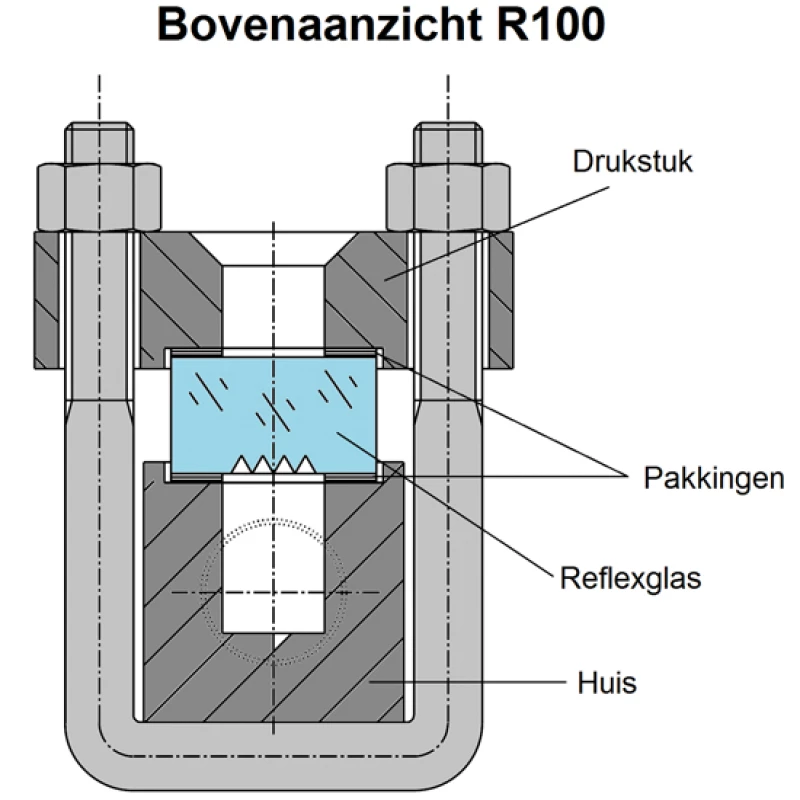

Reflex glass	Borosilicate, thermally prestressed, type B
Seal	Graphite
U-bolt	ASTM 193-B7
Nut	ASTM 194-2H

Connection	Flange connection PN 40

Temperature	-20ºC to 400ºC
