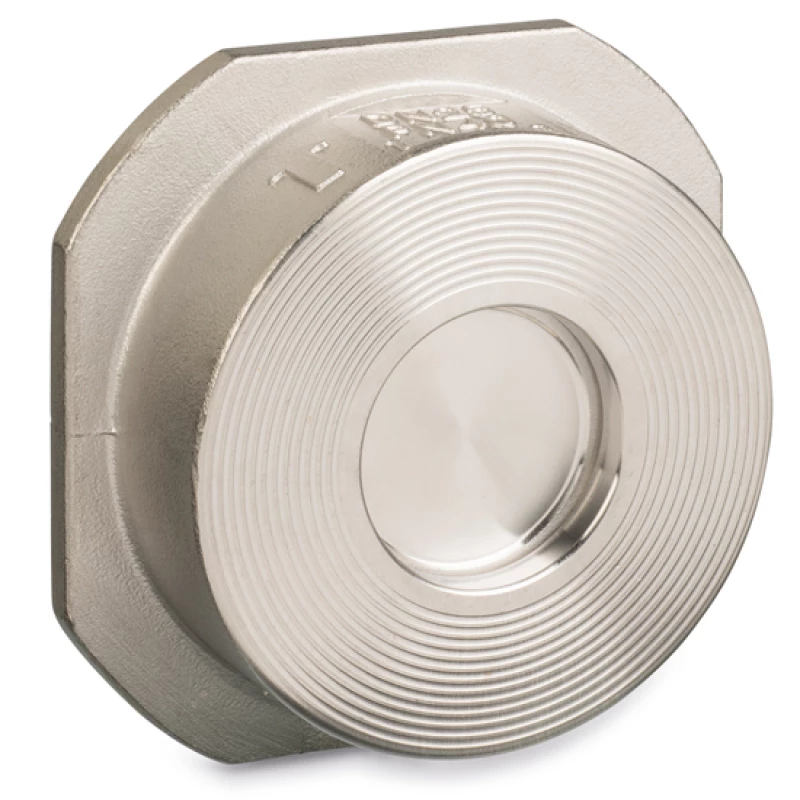

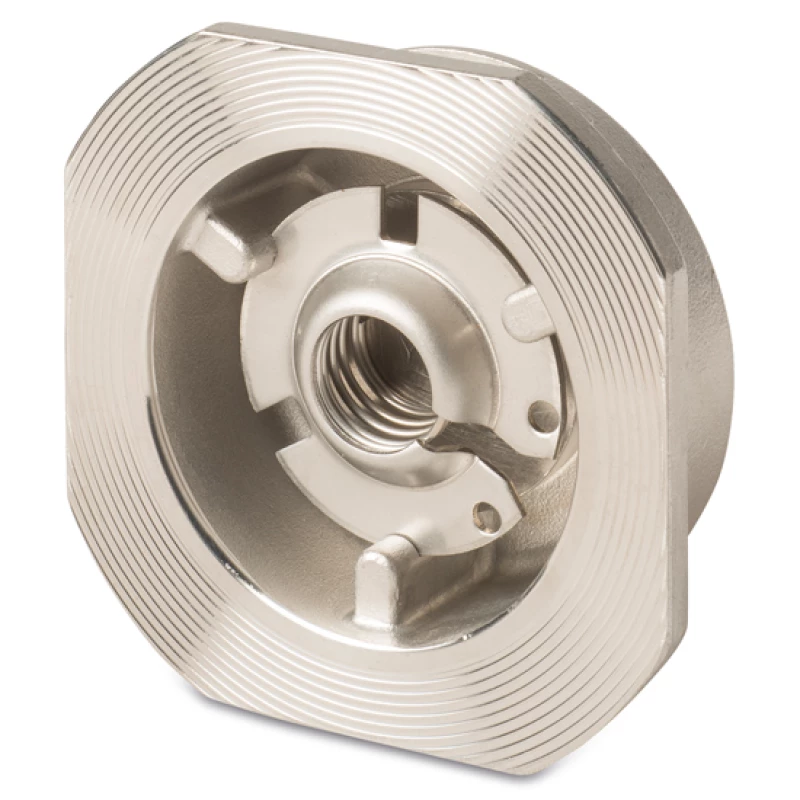

Stainless steel waver type check valve | KP-5500
For flanges of PN 10/40 and ANSI 150/300 lbs.
Suitable for: liquids, gases and steam
- Universally applicable.
- Saturated steam up to 10 bar.
- Can be mounted in any position.
- Very low pressure loss.
Urgency or questions about availability?
Options
- ATEX-model
Specifications
| Type | KP-5500 |
| Material | AISI 316 STAINLESS STEEL |
| Pressure class | PN 40 |
| ANSI 300 lbs | |
| Disc | AISI 316 STAINLESS STEEL |
| Seat | AISI 316 STAINLESS STEEL |
| Spring | AISI 316 STAINLESS STEEL |
|
|
|
| Face to face | EN558-1 series 49 |
|
|
|
| Temperature | min. 0ºC to max. 260ºC |
|
|
|
| PED Catagory | DN15 to DN50 - SEP art. 3, par. 3 |
| DN 65 to DN100 - II | |
