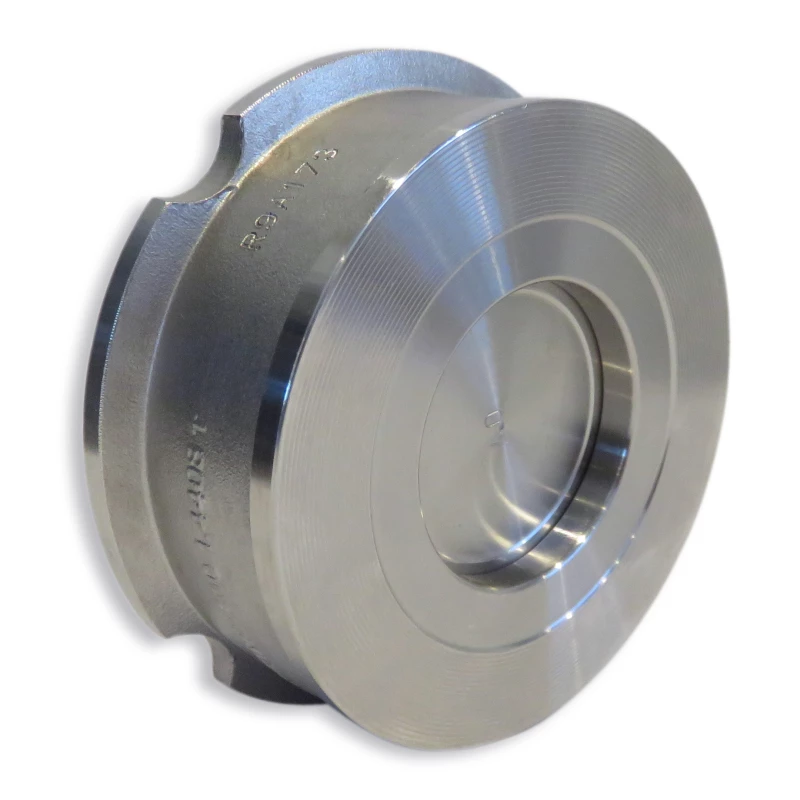

stainless steel dish check valve ChemValve CSD | KP-5507
For flanges PN 10/40 and ANSI 150/300 lbs.
Suitable for: liquids, gases and steam
- High quality industrial check valve
- Long service life due to guidance of the valve in the body with guide ribs
- Secured spring cover for optimal safety
- Can be mounted in any position
- Very low pressure loss
Urgency or questions about availability?
Options
- Larger sizes up to DN 350 on request.
Specifications
| Type | KP-5507 |
| Material | RVS 1.4408 |
| Pressure class | PN06 / PN40 see table |
| ANSI 150 lbs / ANSI 300 lbs see table | |
| Disc | Stainless steel 1.4404 to DN100 ; stainless steel 1.4408 DN125 to DN20 |
| Seat | RVS 1.4408 |
| Spring | RVS 1.4401 |
| Spring locking cap | RVS 1.4401 |
|
|
|

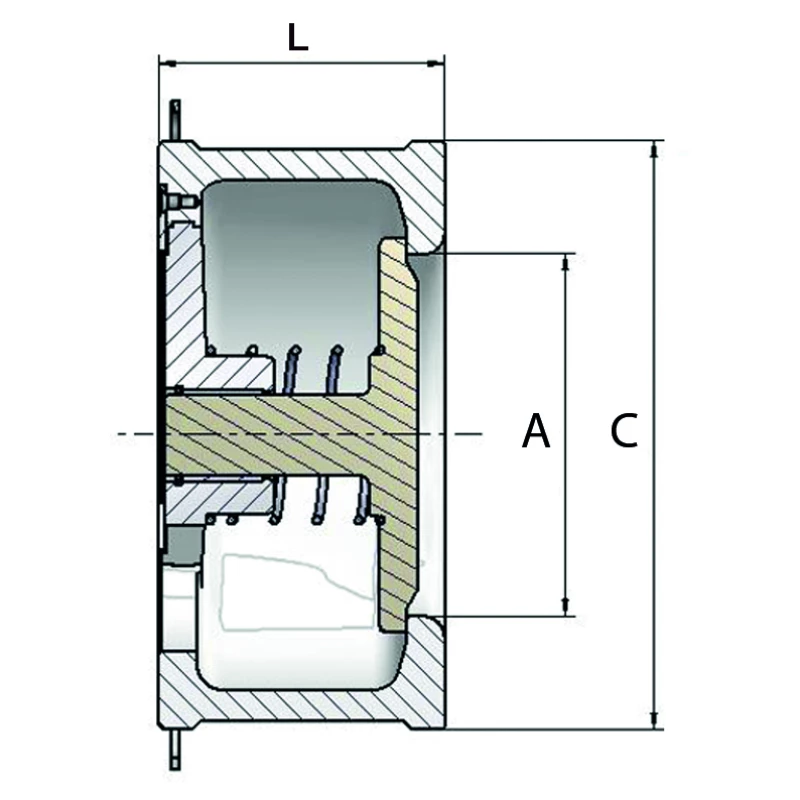

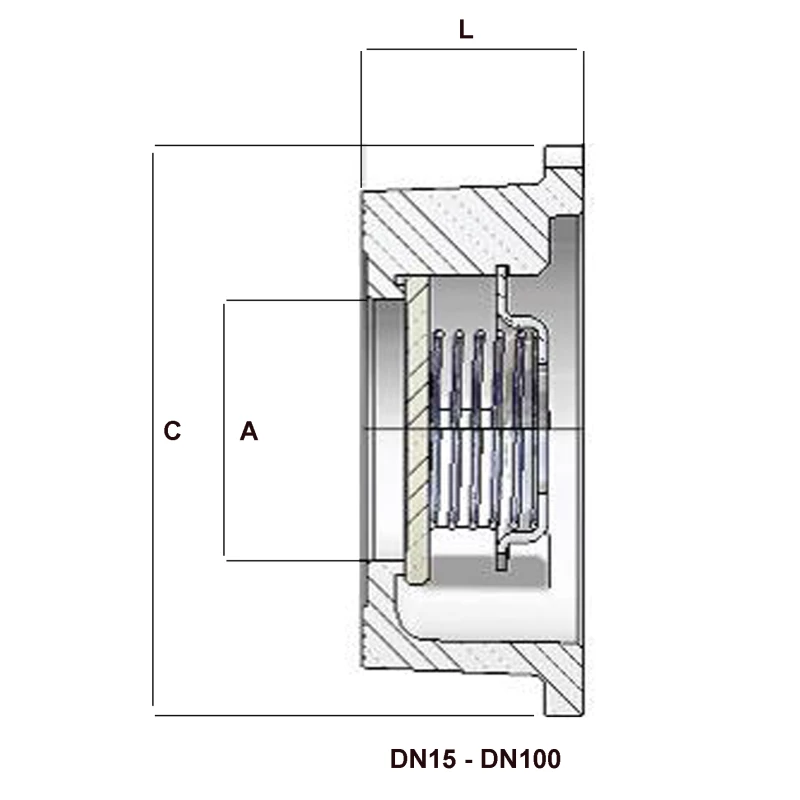

| Face to face | EN558-1 series 49 |
|
|
|
| Temperature | min. -50ºC to 300ºC max. |
| Option spring in Hastelloy up to max 400ºC or Nimonic up to 500ºC | |
|
|
|
| PED Catagory | DGRL 97/23 EC fluid group 1 |
| Density | according to EN12266-1 rate D for metal / metal sealing and for option with PTFE sealing |
| Option EPDM, NBR or Viton sealing according to EN12266-1 rate A | |
|
|
|
|
Do not apply as an overflow, safety valve or vacuum breaker
|
|
