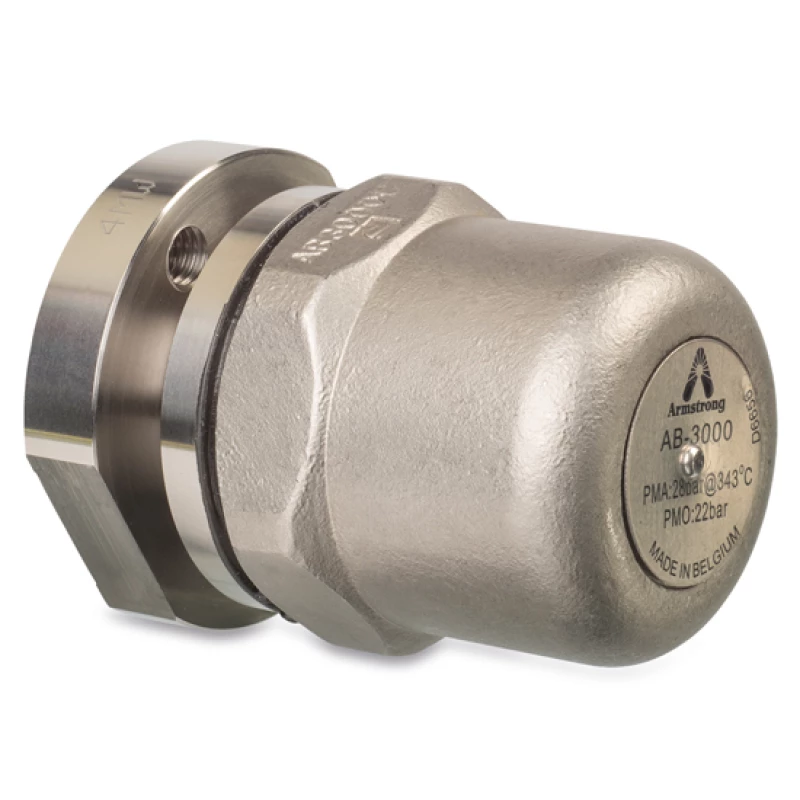

Stainless steel Armstrong thermostatic bimetallic steam trap | AB 3000
360º universal connection
Suitable for: tracing and venting and in some cases dewatering
- By means of universal connector connection positionable in any position.
- Discharges condensate below saturated steam temperature.
- Has very high venting capacity during startup.
- Thermo-chemically hardened valve for longer service life.
- With integrated filter.
- Dismountable housing.
Specifications
| Type | AB 3000 |
| Material | RVS 304 |
| Cap | RVS 304L |
| Disc | Chrome Steel 440F, Boronized |
| Seat | RVS 303 |
| Working pressure max. | 22 bar |
| Maximum back pressure | 99% of the inlet pressure |
| Connections | Suitable for universal connector |
| For connections see Type of universal connectors | |
| Temperature | Max. 343ºC |
