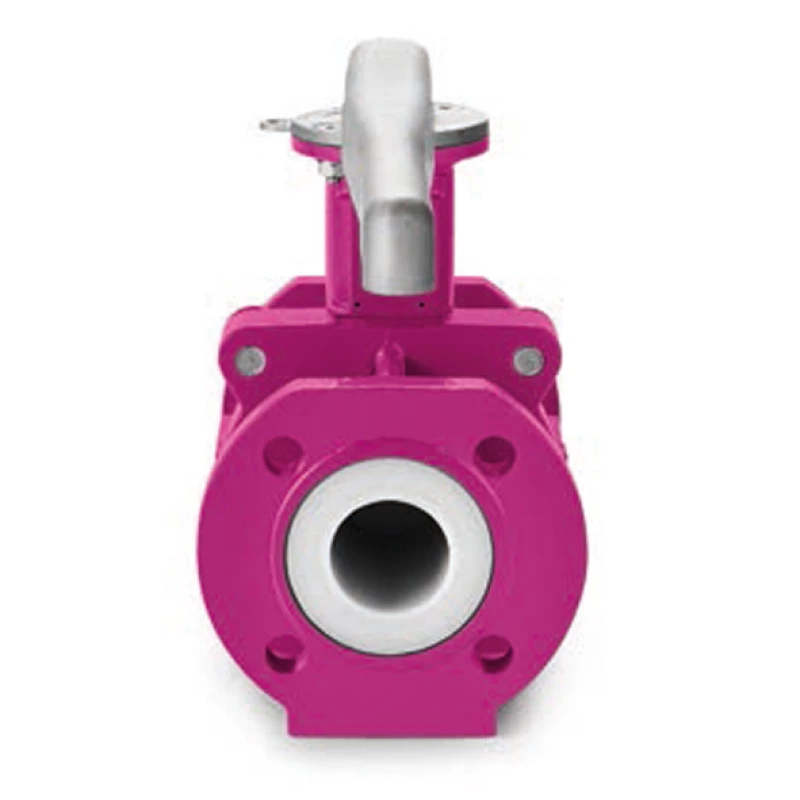

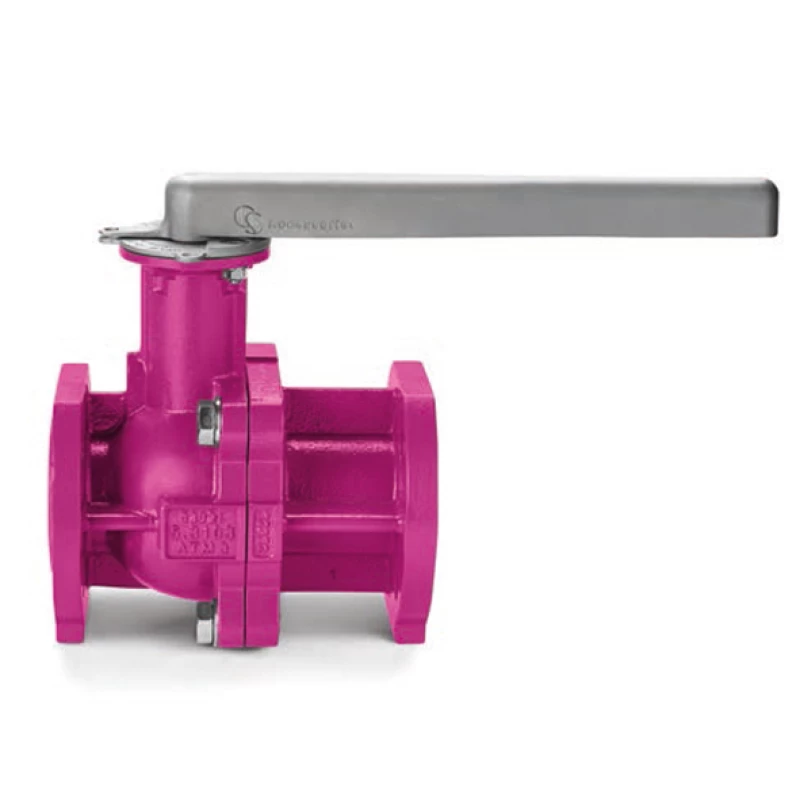

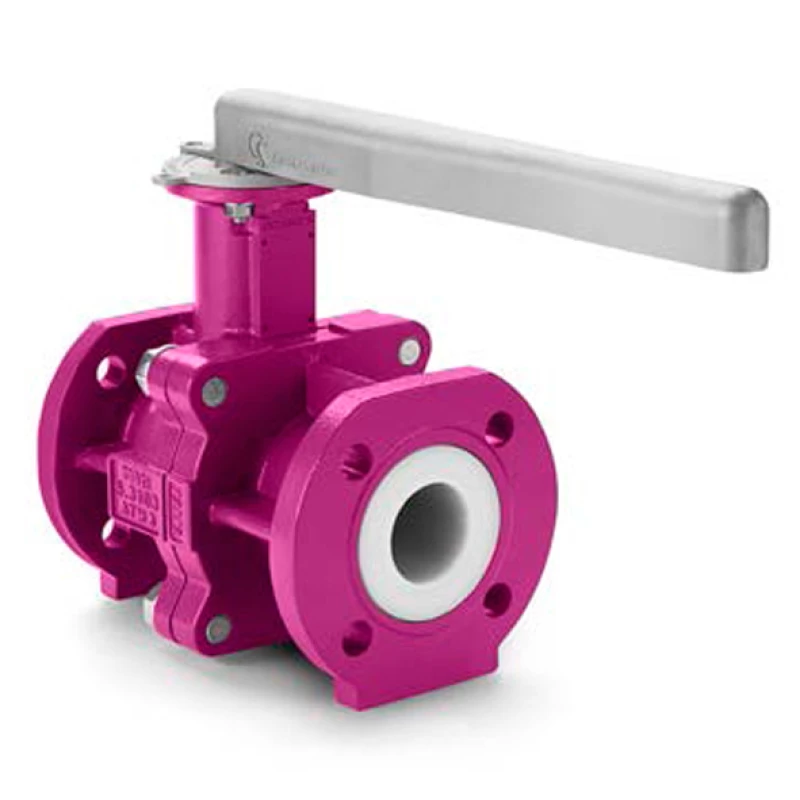

PFA clad ductile iron ball valve Chemvalve CSB | KP-2560

Suitable for: acids, alkalis, corrosive/aggressive media and food applications

Long construction length (EN 558 Gr. 1).
Extra safety provided by double labyrinth spindle seal with spring-loaded chevron rings (maintenance-free).
Unique patented "true float" connection between ball and spindle.
Housing and ball and spindle fitted with high-quality PFA cladding.
Minimal "dead space" between housing and ball.
Swiss quality product (produced entirely in our own factory).
TA luft and ISO 15848-1 certified.
Housing provided with epoxy coating (120μm according to ISO 12944-5 C3M).
Features ISO 5211 top flange for easy mounting of a control unit or spindle extension.
Suitable for vacuum applications.
PFA lining and PTFE seals conforming to EC 1935/2004 & FDA.

Additional information

video ChemValve PFA lined ball valve

Additional information Chemball CBS

Urgency or questions about availability?

Type	KP-2560
Material	Nodular cast iron 5.3103 / EN-GJS-400-18-LT PFA lined
Pressure class	PN 16
Ball / Spindle	Stainless steel 1.4404 / PFA clad
Handle	STAINLESS STEEL
Div.elements	PTFE
Spindle seal	PTFE chevron
Upholstery	PFA
Coating	Epoxy coating 120µm

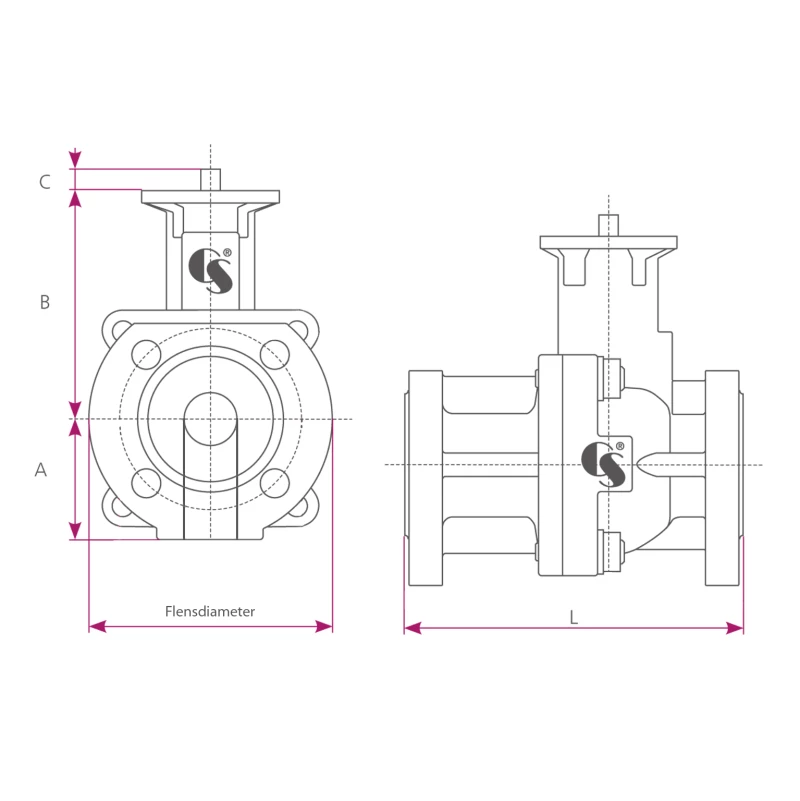

Face to face	EN558-1 series 1

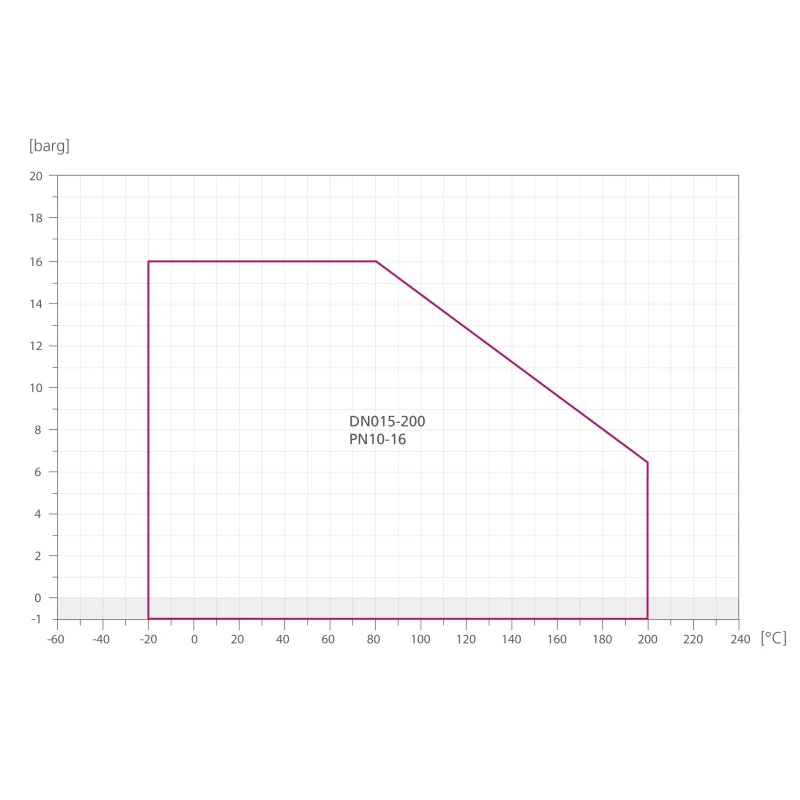

Temperature	-20°C to +200°C

Certification according to standard	PED 2014/68/EU
	ATEX 2014/34/EU
	Food (EC) No. 1935/2004 \| FDA
	TA-Luft \| ISO 15848-1
	Density EN12266-1 rate A
