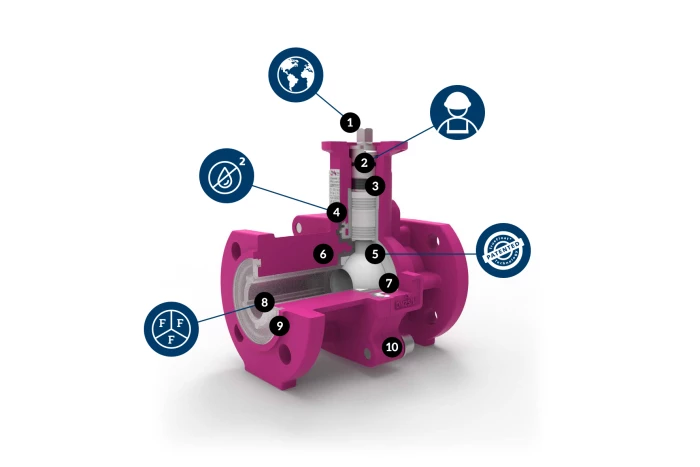

Smart & Maintenance friendly design maintenance-free seal and bearing with cartridge system for simple maintenance.
Adaptive sealing system waver type springs guarantee a constant inlet pressure on the spindle = seal.
Safety 2 Labyrinth seal and double chevron stuffing box gasket for leak-free and guaranteed safe sealing.
Patented TrueFloat® Technology Flexible, metal spindle and ball joint equipped with 1-piece PFA lining.
Durable seal large ball seats guarantee a leak-free seal.
Minimal dead space prevents lagging of medium and residue.
Contoured Lining length grooves allow for better medium flow.
High quality PFA Lining PFA lining manufactured and applied in our own production according to the high quality standards.
External Corrosion Protection 120μm epoxy coating according to ISO 12944-5 C3M.

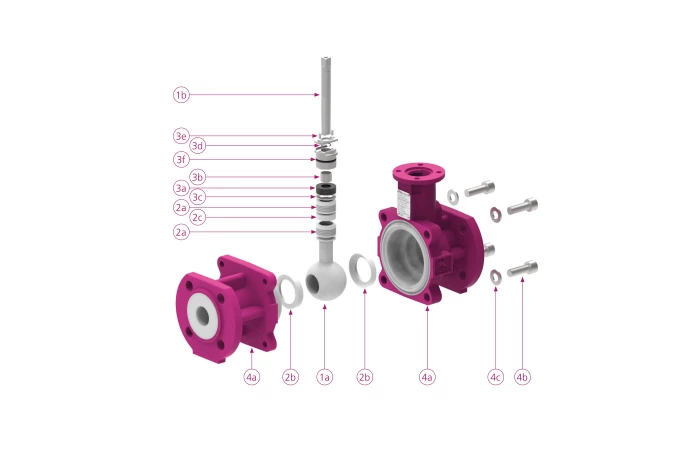

1a - Ball - PFA/1.4404
1b - Spindle - 1.4404
2a - Chevron gasket - PTFE
2b - Ball seal - PTFE
2c - Shim ring - PTFE
3a - Dish springs - Carbon Steel
3b - Spindle guided bushing - PTFE/Steel
3c - Printer - 1.4301
3d - Spring-lock ring - 1.4301
3rd - Locking plate & Bolts - 1.4404
3f - Bayonet Closure - 1.4404
4a - Housing - PFA/5.3103
4b - House bolts - Stainless Steel
4c - Washers - Stainless Steel
Suitable for: acids, alkalis, corrosive/aggressive media and food applications.
