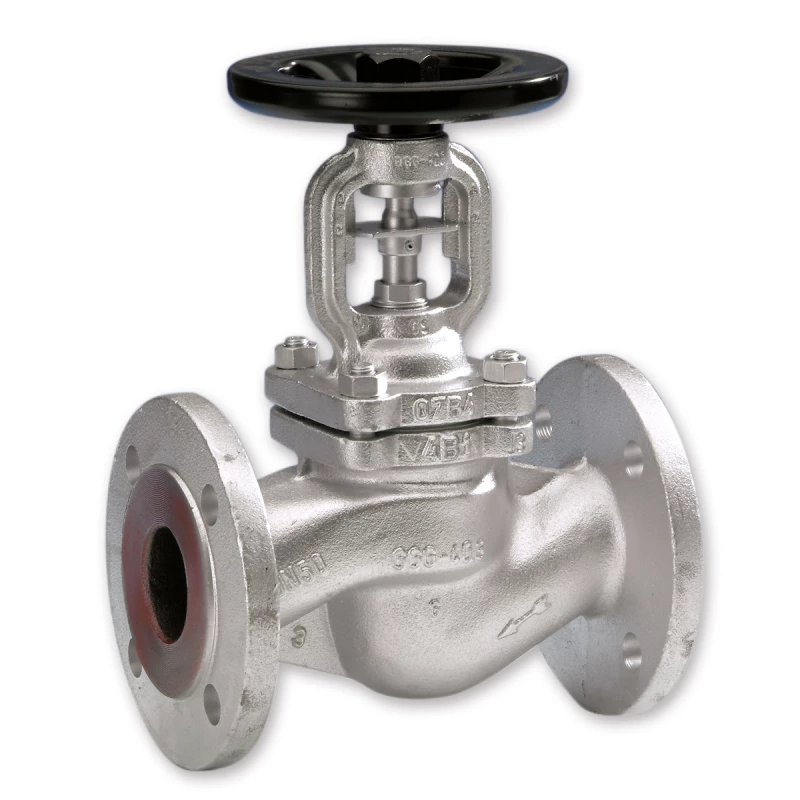

Nodular cast iron Globe valve with bellows | KP
Flange connection PN 16
Suitable for: cold and hot water, steam, hydrocarbons, gas, air and thermal oil (max. 350°C)
- Maintenance-free.
- Very good protection against atmospheric leakage.
- Position indication.
- Threaded sleeve with lubricating nipple.
Urgency or questions about availability?
Options
- as a control valve: with parabolic valve
Specifications
| Type | KP-862 |
| Material | Nodular cast iron EN-GJS-400-18-LT |
| Pressure class | PN 16 |
| Top part | Nodular cast iron EN-GJS-400-18-LT |
| Handwheel | DN15 to DN100 sheet steel |
| DN125 and larger cast iron | |
| Seat | Stainless steel X20Cr13 |
| Disc | Stainless steel X20Cr13 |
| Spindle | Stainless steel X20Cr13 |
| Bellows | Stainless steel X6CrNiTi18-10 |
| Cover gasket | Graphite with stainless steel insert |
| Gland packing | Graphite |
| Face to face | EN 558-1 series 1 |
| Connection | PN 16 EN1092-2 |
| Temperature | -10°C to +350°C |
