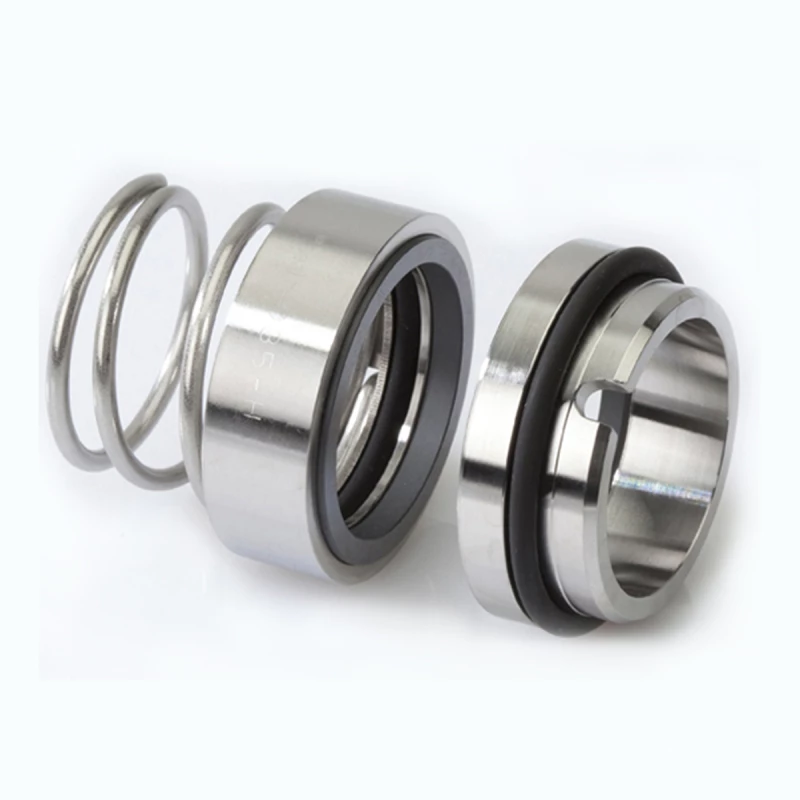

Single Latty seal (u1) | U 1112 BU6V
Running surfaces carbon/silicon carbide, direction of rotation dependent
Suitable for: relatively clean, slightly abrasive, aggressive media
- This type of seal is direction of rotation dependent and equipped with a conical non-fouling spring.
Overhaul in our own seal overhaul workshop possible.
Options
- O-rings: PTFE sheathed (M5), Kalrez (K)
To be specified when ordering
- O-rings: FPM (V) or EPDM (E)
- rotation direction
Specifications
| Type | U 1112 BU6V |
| Material | AISI 316L |
| Rotary part | Cabbage (B) |
| Idle part | Silicon carbide (U6 = DIN Q1) |
| O-rings | FPM (V), option EPDM (E) |
|
|
|
| Max. pressure | 10 bar |
| Max. temperature | 180ºC |
| Max. speed | 10 m/s |
| P.V. factor | 50 |
|
|
|

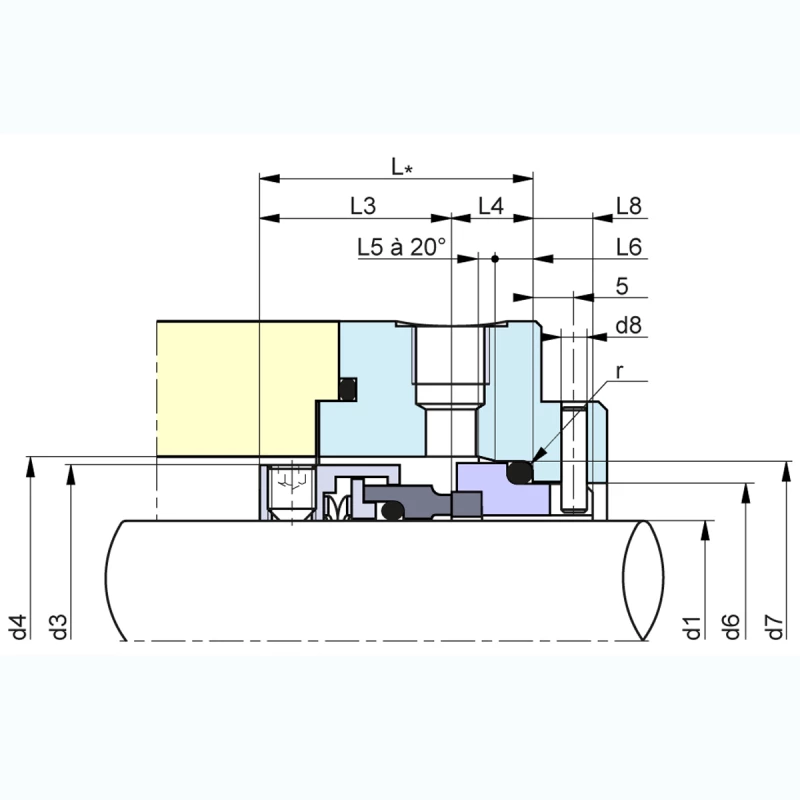

| Dimensions | according to DIN 24960. |
