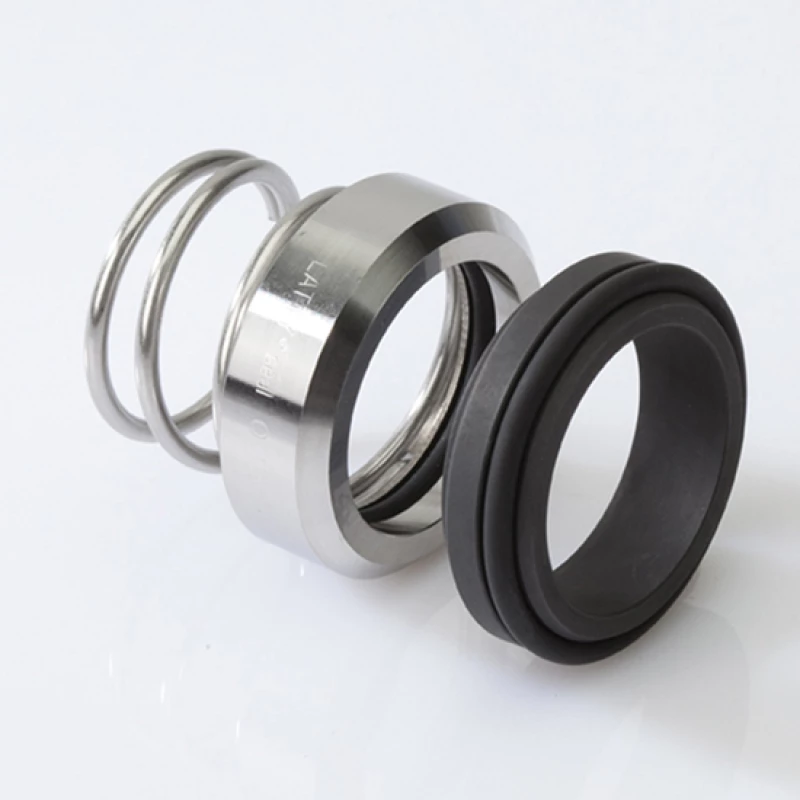

Single Latty seal (u1) | U 1000 G2BV
Treads stainless steel/coal, direction of rotation dependent
Suitable for: clean, slightly aggressive substances
- This type of seal is direction of rotation dependent and equipped with a conical, non-fouling spring.
To be specified when ordering
- rotation direction
- quality O-rings: FPM (V) or EPDM (E)
Specifications
| Type | U 1000 G2BV |
| Material | AISI 316L |
| Rotary part | spec.stainless steel(G2) |
| Idle part | Cabbage (B) |
| O-rings | FPM (V), option EPDM (E) |
|
|
|
| Max. pressure | 10 bar |
| Max. temperature | 180ºC |
| Max. speed | 10 m/s |
| P.V. factor | 50 |
|
|
|

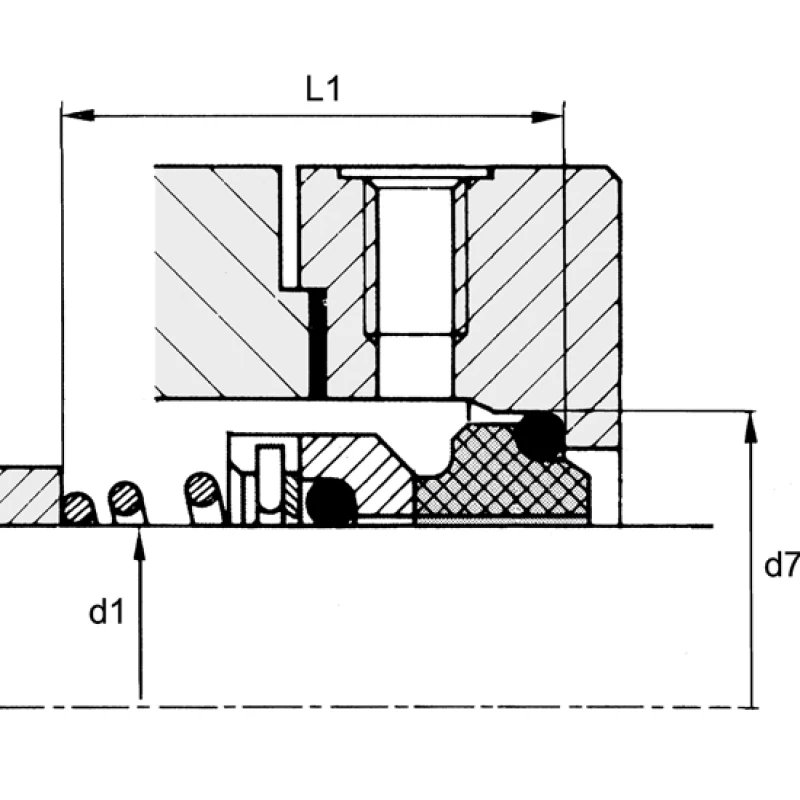

| Dimensions | according to DIN 24960 |
