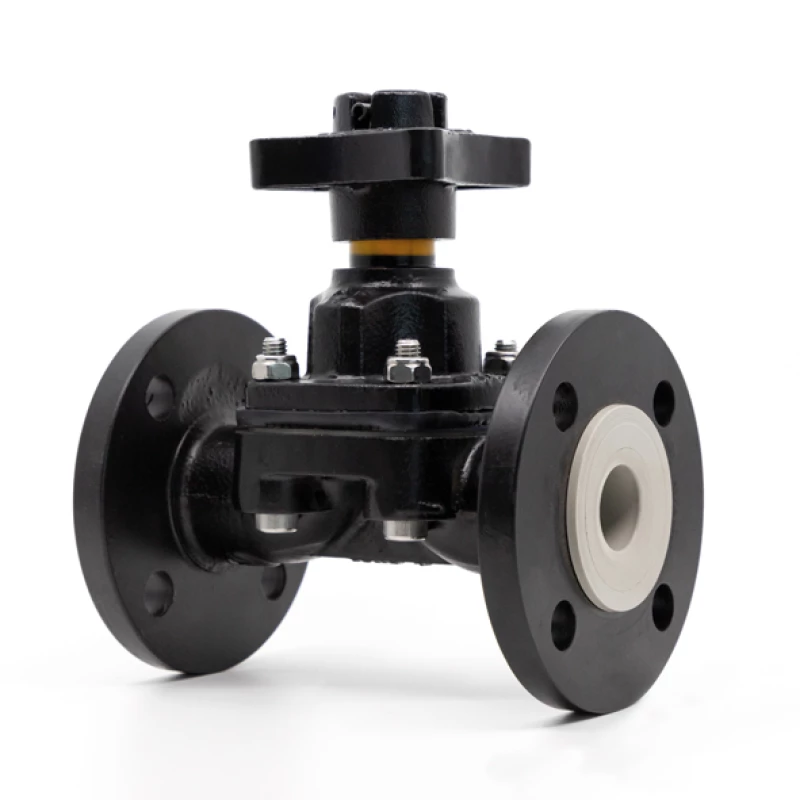

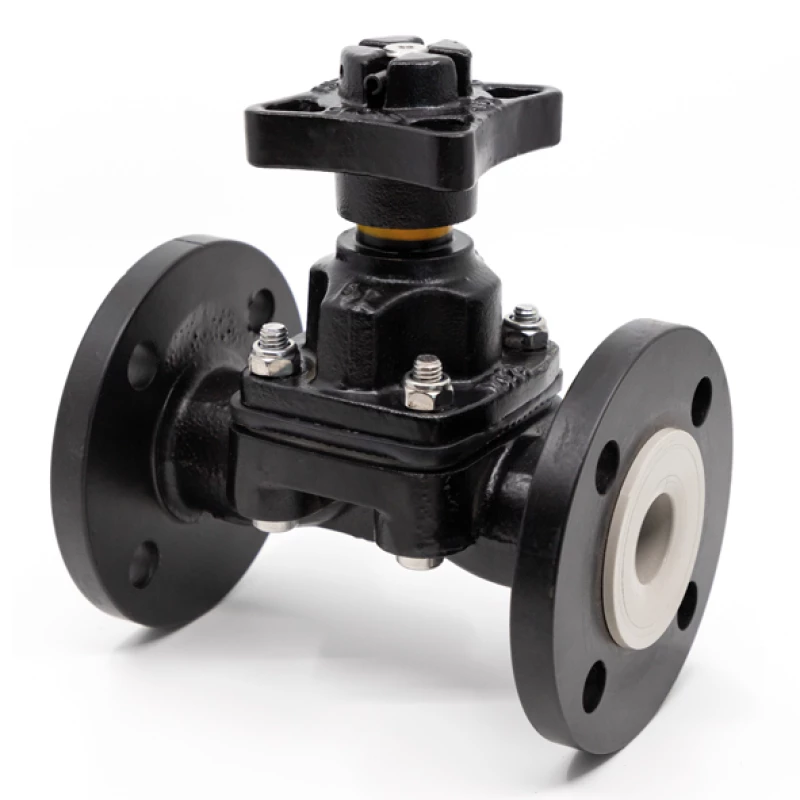

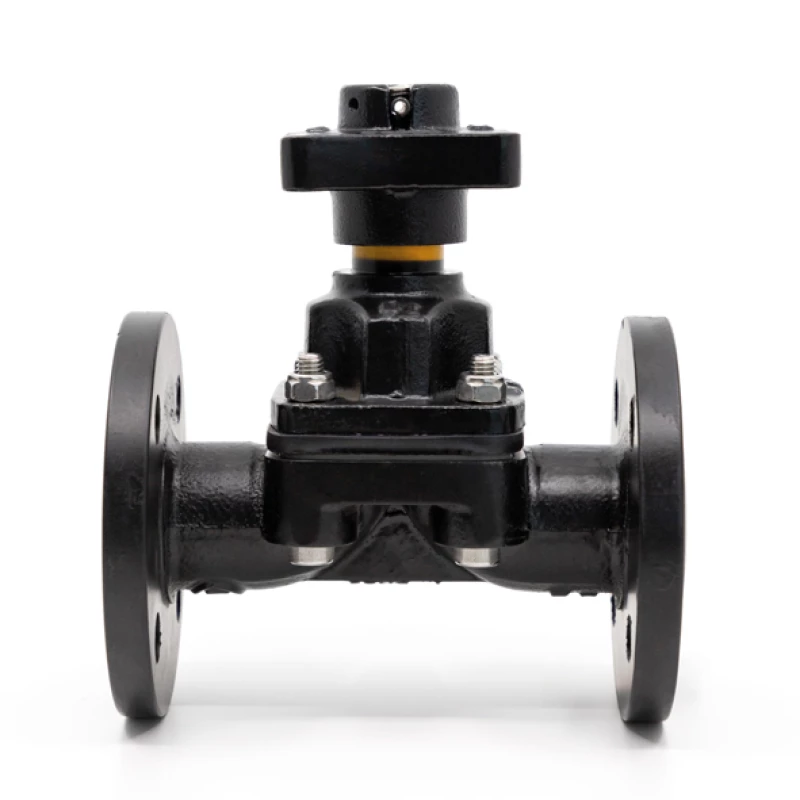

Nod. cast iron diaphragm valve | KP-9337
Flange connection PN 10 / PN 16
Suitable for: aggressive and corrosive liquids, gases and chemicals.
- Handwheel adjustable
- Clear open/close indication
- Diaphragms fully interchangeable with other manufactured products
- Renowned manufacturer
- Leakage class A : "bubble tight "
- Low maintenance
- EPDM membrane with PTFE coating
Urgency or questions about availability?
DN32, DN65 and DN125 on request.
Options
- With pneumatic or electric operation
- with spindle extension
- with lock locking device
- with chain wheel operation
- with hard rubber lining
Specifications
| Type | KP-9337 |
| Material | Ductile iron ASTM A395 60-40-18 with PFA lining |
| Pressure class | PN10* |
| Top part | DN15& DN20 steel ASTM A216 gr WCB |
| DN32 and DN65 cast iron ASTM A126 CI B | |
| other ductile iron ASTM A395 60-40-18 | |
| Diaphragm | EPDM with PTFE lining |
| Handwheel | Cast iron ASTM A126 CI B |
| Spindle | ASTM 304 STAINLESS STEEL |
|
|
|

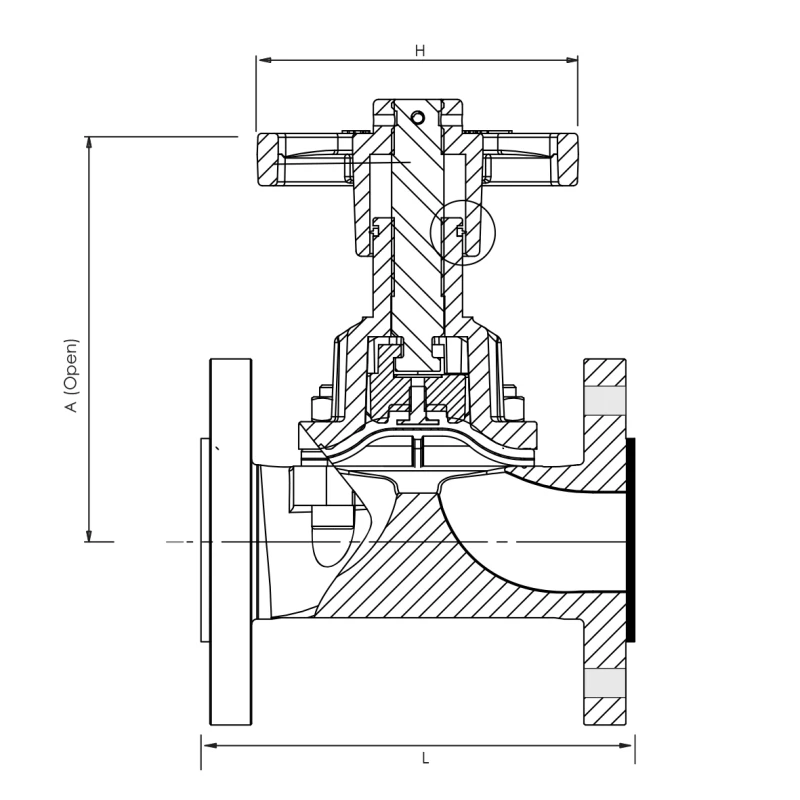

| Face to face | EN558-1 series 1 |
| Connection | EN1092-1 PN16 |
|
|
|
| Temperature | 175°C max |
|
|
|
|
* DN150 max. 7 bar
|
|
