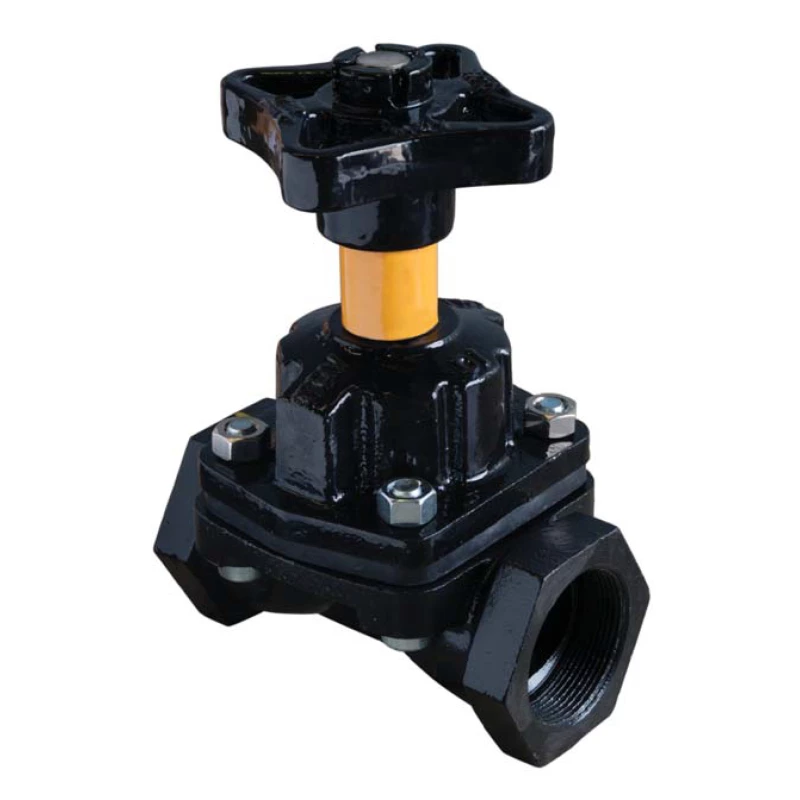

Nod. cast iron diaphragm valve - KP-9332

Nod. cast iron diaphragm valve | KP-9332

Nod. cast iron diaphragm valve | KP-9332
Nod. cast iron diaphragm valve | KP-9332
gallery slider left
gallery slider right

Threaded connection BSP PN 10

Suitable for: cold and hot water, oil, gas, nitrogen, air (depending on diaphragm selection)

  • Handwheel adjustable
  • Clear open/close indication
  • Diaphragms fully interchangeable with other manufactured products
  • Renowned manufacturer
  • Leakage class A : "bubble tight "
  • Low maintenance
Specifications
Nod. cast iron diaphragm valve | KP-9332
Nod. cast iron diaphragm valve | KP-9332
Previous series Next Series
1.1/4" on request.

Options

  • With other diaphragmPTFE/EPDM, Butyl rubber, Neoprene etc.
  • locking device
  • spindle extension

Specifications

Type KP-9332
Material Nodular cast iron ASTM A395 60-40-18
Pressure class PN16
Top part 1/2" and 3/4" steel ASTM A216 gr WCB
other ductile iron A395 60-40-18
Handwheel cast iron ASTM A126 CI B
Spindle ASTM 304 STAINLESS STEEL
Connection EN1226-1 BSP-P female thread
Temperature EPDM diaphragm 140°C max
Natural rubber Diaphragm 100°C max
