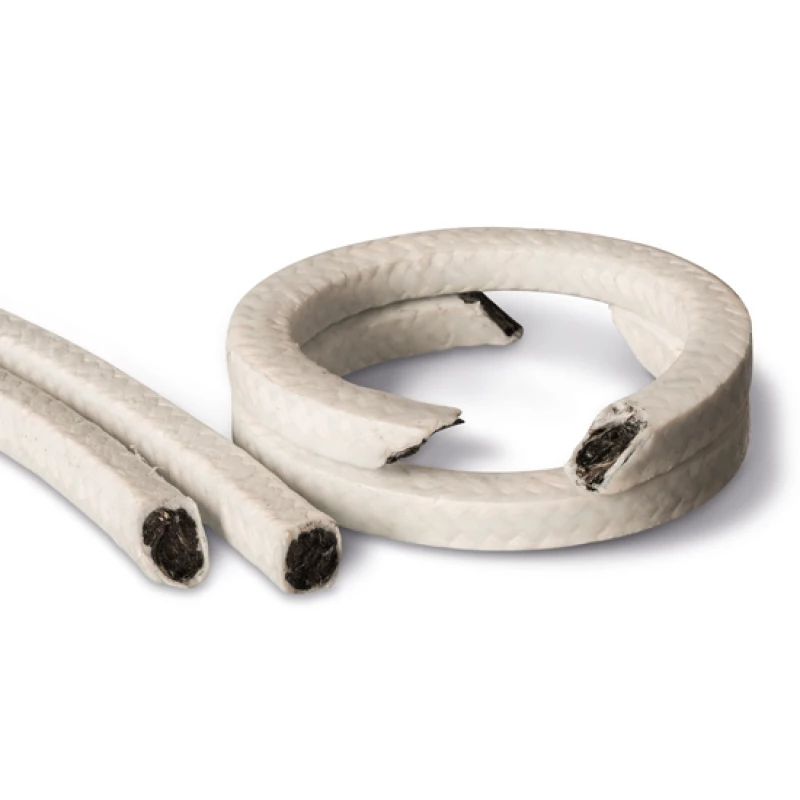

PTFE/graphite gland packing | Lattyflon 3260 LM
Core of braided carbon wires impregnated with PTFE, sheath of braided PTFE yarn impregnated with PTFE.
Suitable for: solvents, alkalis, acids and oils
- Because of its construction, this is the gasket for control valves with high pressure and temperature combinations.
- This gasket has the control effect of PTFE, but does not have the disadvantages of a 100% PTFE gasket.
Urgency or questions about availability?
Also available
- different lengths or pre-pressed rings
Specifications
| Type | Lattyflon 3260 LM |
| Material | Carbon wire core with PTFE sheath, impregnated with PTFE |
|
|
|
| *Max. temperature | 300°C |
| *Max. pressure | 300 bar |
| *Max. speed | 1 m/s |
| _Ph range | 0 - 14 |
|
|
|
| * possible at the same time | 280°C _70 bar |
| 200°C 200 bar | |
|
|
|
| Approved/tested by | BAM approval for use with gaseous oxygen 11-1147/2010 E |
| TÜV TA-LUFT VDI 2440 | |
| Nuclear PMUC 17-0042 | |
Contact
For more information about our gland packings , please contact:
