PTFE/graphite gland packing | Lattyflon 3265 LM

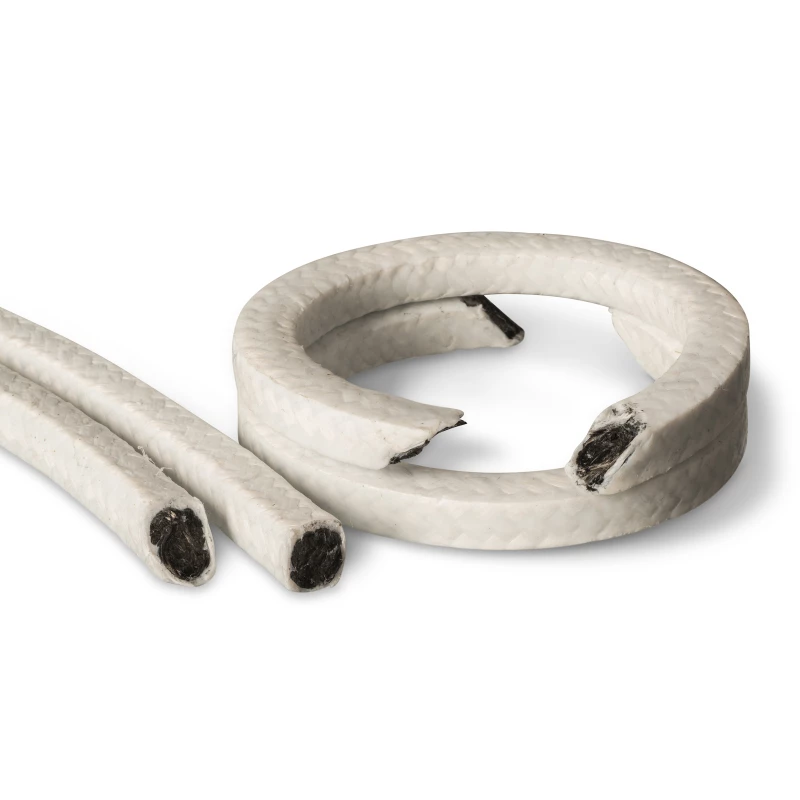

Core of braided carbon wires impregnated with PTFE and corrosion inhibitor, sheath of braided PTFE yarn impregnated with PTFE.
Suitable for: almost all media in (control) valves
- Due to its construction, this is the gasket for control valves with high pressure and temperature combinations.
- This gasket has better control performance (hysteresis) than PTFE, but does not have the disadvantages of a 100% PTFE gasket.
- Suitable for TA-luft / low emission applications.
- With bottom and top ring of e.g. Lattygraf 6995 NG suitable for a pressure/temperature combination of 285 °C at 80 bar.
Urgency or questions about availability?
Also available

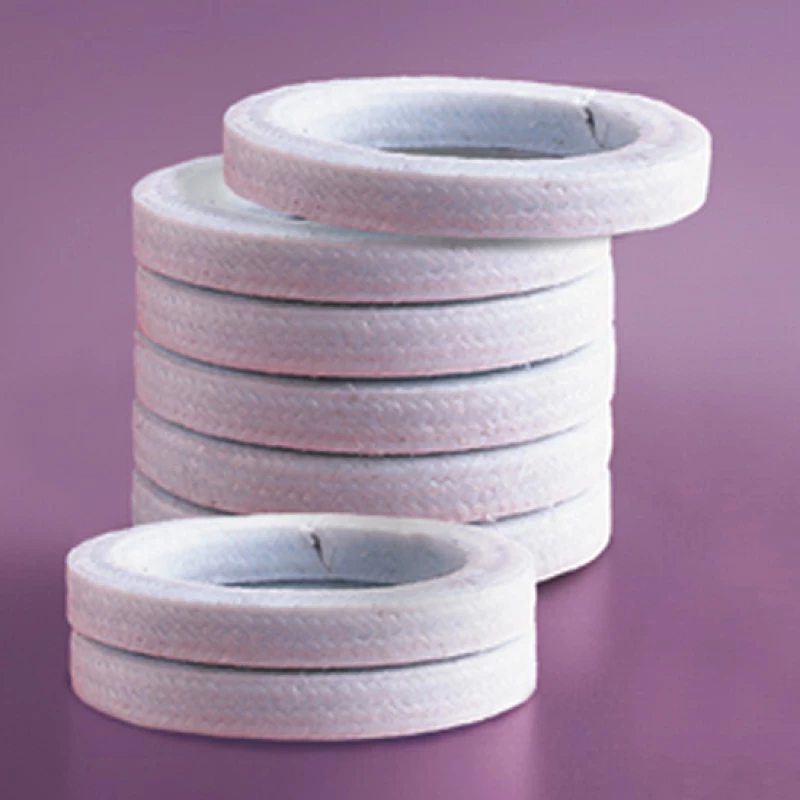

- different lengths or pre-pressed rings
Specifications
| Type | Lattyflon 3265 LM |
| Material | Carbon core braided and impregnated with PTFE and corrosion inhibitor, with braided and impregnated PTFE jacket |
|
|
|
| *Max. temperature | 300°C |
| *Max. pressure | 300 bar |
| *Max. speed | 1 m/s |
| _Ph range | 0 - 14 |
|
|
|
| * possible at the same time | 280°C _70 bar |
| 200°C 200 bar | |
|
|
|
| Approved/tested by | BAM approval for use with gaseous oxygen 21020513-E |
| TÜV TA-LUFT requirements according to VDI 2440 | |
| ISO 15848-1, Class BH emission requirements. | |
