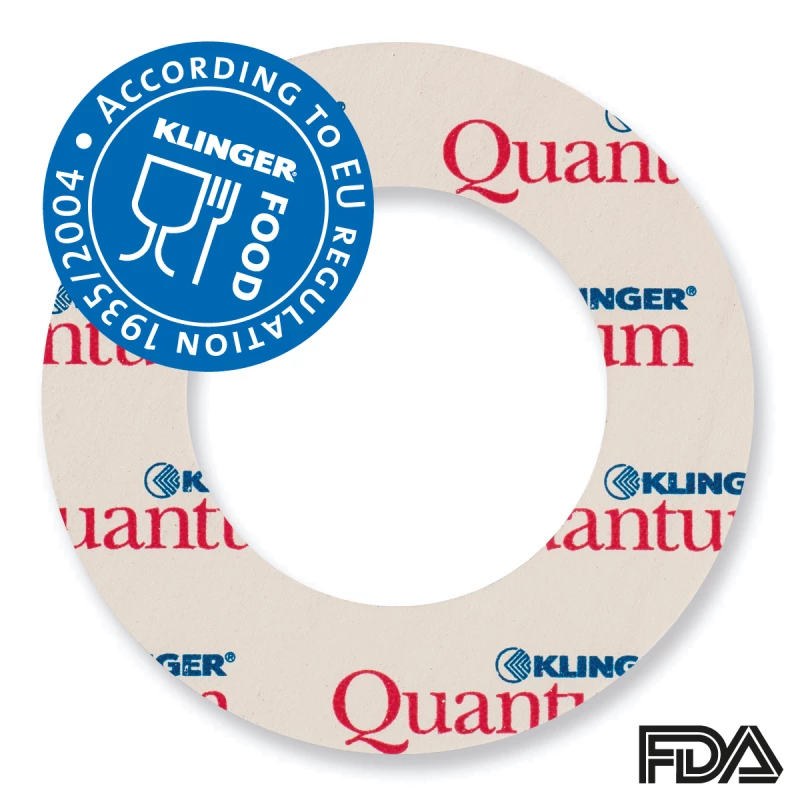

Food seals | KLINGER® Quantum FDA / EC 1935

Suitable for: food and pharmaceutical industry

The production of these seals - in a designated clean room - uses equipment adapted specifically for the food and pharmaceutical industries.
All seals are packaged individually and marked for full traceability.
KLINGER^®Quantum is the first fiber reinforced gasket using only HNBR rubber. Through a unique manufacturing process developed specifically for this purpose, this material can be applied to higher temperatures than any other fiber reinforced gasket on the market.
High durability with low gas permeabilities despite high temperatures.

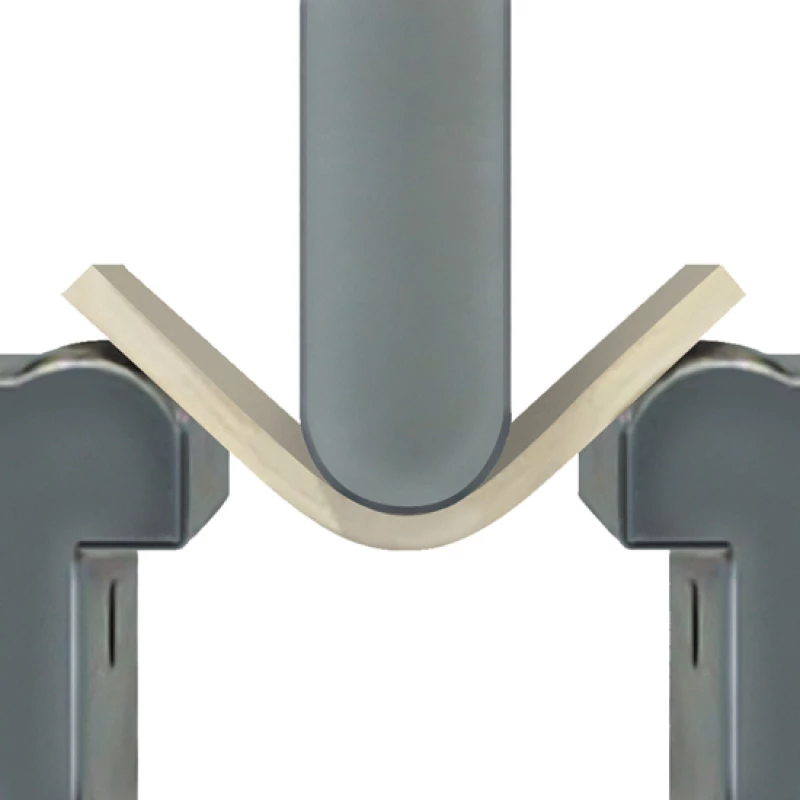

Highest residual flexibility after temperature exposure, see image bending test after 240 hours at 200 ºC.
High creep resistance and high surface pressure resistance.
Highly universal medium resistance.

Additional information

Product certifications (including EU 1935 and FDA)

Chemical resistance

Datasheet Klinger Quantum

Urgency or questions about availability?

Type	KLINGER^® Quantum FDA / EC 1935
Material	HNBR rubber matrix, fiber reinforced.
Color	off-white on both sides, printed on one side

Compressibility according to ASTM F36J	10%
Springback according to ASTM F36J	> 50%
Pressure resistance according to DIN 52913(2mm, 300ºC)	28 N/mm²
Gas permeability according to DIN 28090-2	< 0,02 mg/s.m.

Sealing factors 2 mm thick leakage class 0.1 mg/sxm
ASTM Y	15 MPa
ASTM m	5
D0701 pgm;min 25ºC	22 MPa
D0701 pgm;max 25ºC	158 MPa
D0701 pgm;max 100ºC	68 MPa
D0701 pgm;max 200ºC	39 MPa
D0701 pgm;max 300ºC	32 MPa
D0701 Cg	1,3

Pressure/Temperature Graph
Area 1	Normally with adequate surface pressure, it can be applied without problems.
Area 2	Get advice for critical applications.
Area 3	Seek advice.

DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
