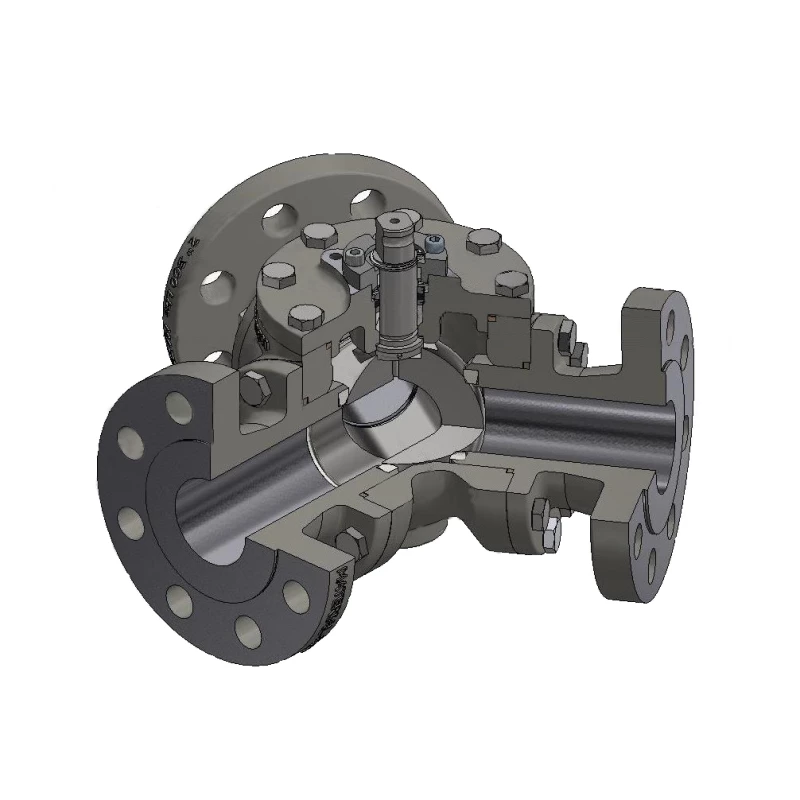

Stainless steel Pekos 3-way ball valve | KP-2522 - Y

Suitable for: water, oil, air, gases and hydrocarbons

Anti-static, spindle resistant to "blow-outs.
Full bore suitable for piggable pipe system.
Spindle seal with TA-Luft approval.
Equipped with top flange according to ISO 5211 for easy mounting of a control unit or spindle extension.

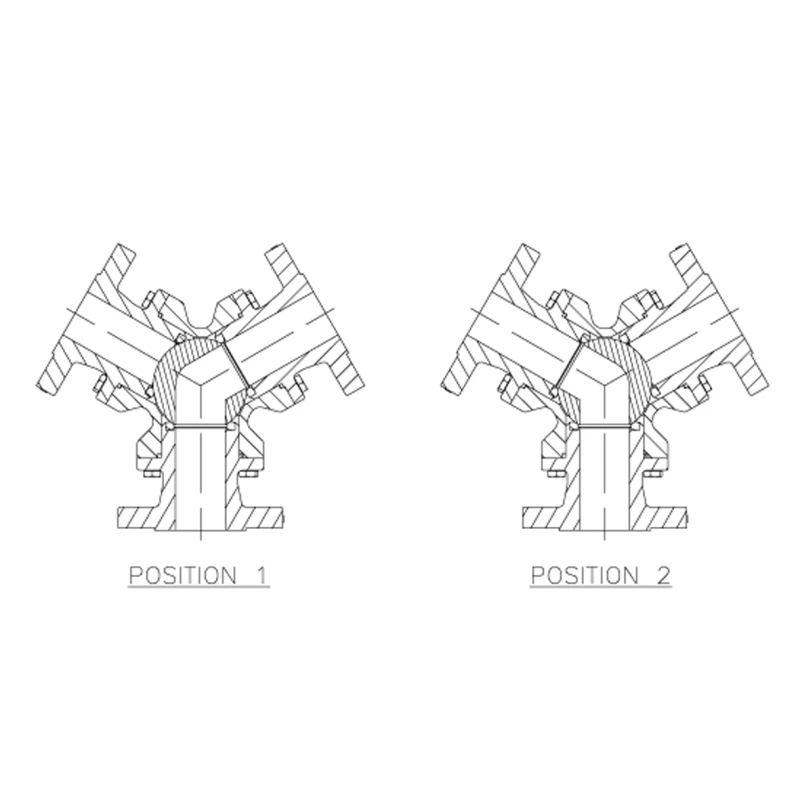

Standard with 120º opening.
ATEX 94/9/EC.
SIL 3IEC61508.

Urgency or questions about availability?

*Advice with worm gearbox

ANSI 150# or 300# flange connection
4-way ball valve with T, L or X bore
3-way ball valve straight 180 degrees model
PN40 model for DN25 to DN100
complete with pneumatic or electric operation, see automation set Pekos 3-way ball valve

Specifications

Type	KP-2522 - Y
Material	Stainless steel GX5CrNiMo19-11-2/RS 1.4408
Pressure class	PN16
Bullet	Stainless steel GX5CrNiMo19-11-2/ stainless steel 1.4408
Spindle	Stainless steel X5CrNiMo17-12-2 stainless steel 1.4401
Handle	WCB
Div.elements	PTFE
Spindle seal	PTFE
Connection	EN 1092-01
Temperature	-10°C to +220°C (pressure and temperature dependent
