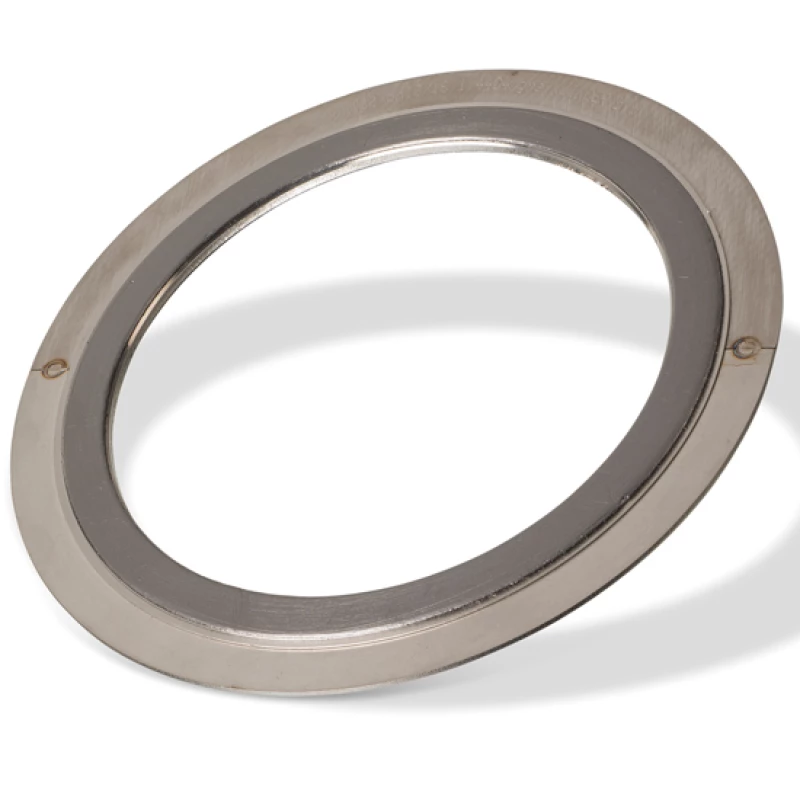

AISI 316 L carrier with graphite overlay, DIN standard

Suitable for: steam, oil, hydrocarbons and many chemicals.

  • This gasket is suitable for high pressure and temperature.
  • Can be fabricated into an easily handled gasket in any size.

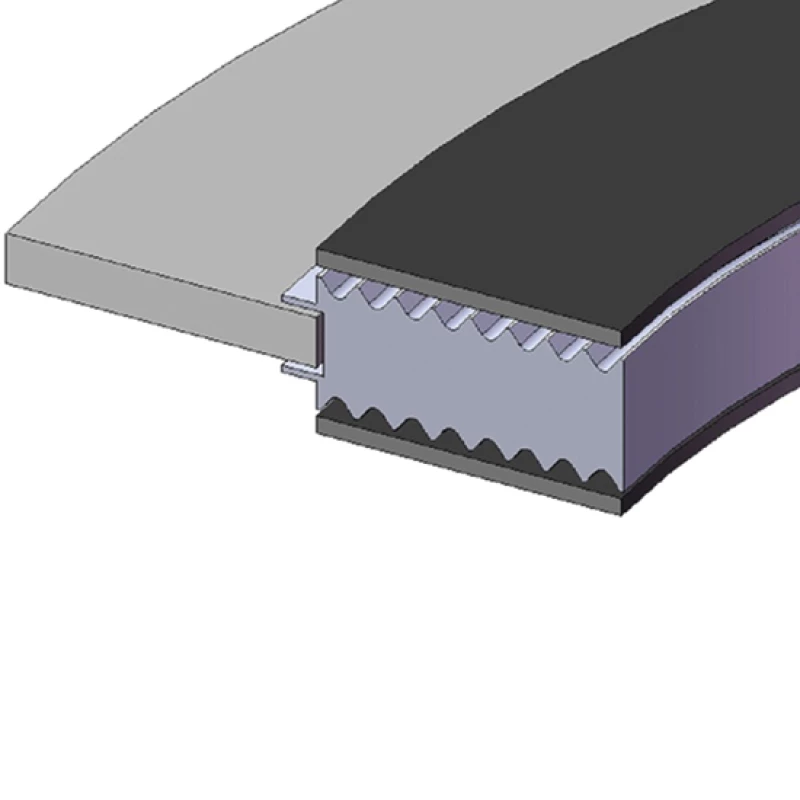

  • The type 109 CA is similar to the type 109 LA in terms of application, however, the tread depth is only 0.2 mm in the center and evenly deepens to 0.4 mm towards the sides.
Specifications
Downloads
Stainless steel/Graphite KLINGER Maxiprofiel DIN | MM 109
Stainless steel/Graphite KLINGER Maxiprofiel DIN | MM 109
Previous series

To be specified when ordering

  • model, sizing, pressure class and material

Also available

  • other materials, non-standard dimensions and/or loose elements from our own factory

Specifications

Type MM 109
Material 316L/Graphite
Max. temperature 450º-600ºC*
Max. pressure 250 bar
*depending on specific application.
Standard thickness metal 3 (or 4) mm
Standard thickness edition 2x 0.5 mm
Density of graphite 0.7 (alternative 1.0 with AS) gr/cm³
Explanation *As a metal, 316L (1.4404) is the most common, but 321, 304, Cst, Monel, Inconel, Titanium and others are also possible.
*Same for the overlays, e.g. PTFE, Softchem, KLINGERSIL and mica (max. temp. up to 900ºC).
DIN dimensions suitable for flanges according to EN1092
ANSI dimensions suitable for flanges according to B16.5 (≤24") or B16.47A or B (> 24")
