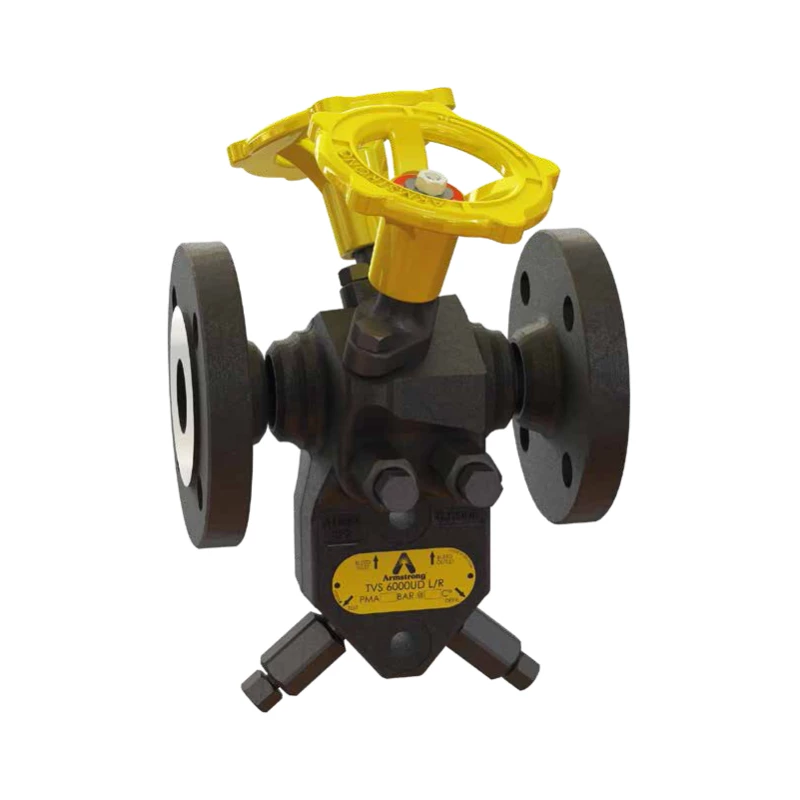

forged steel Armstrong trap valve station | TVS 6000
terminal block for mounting steam traps

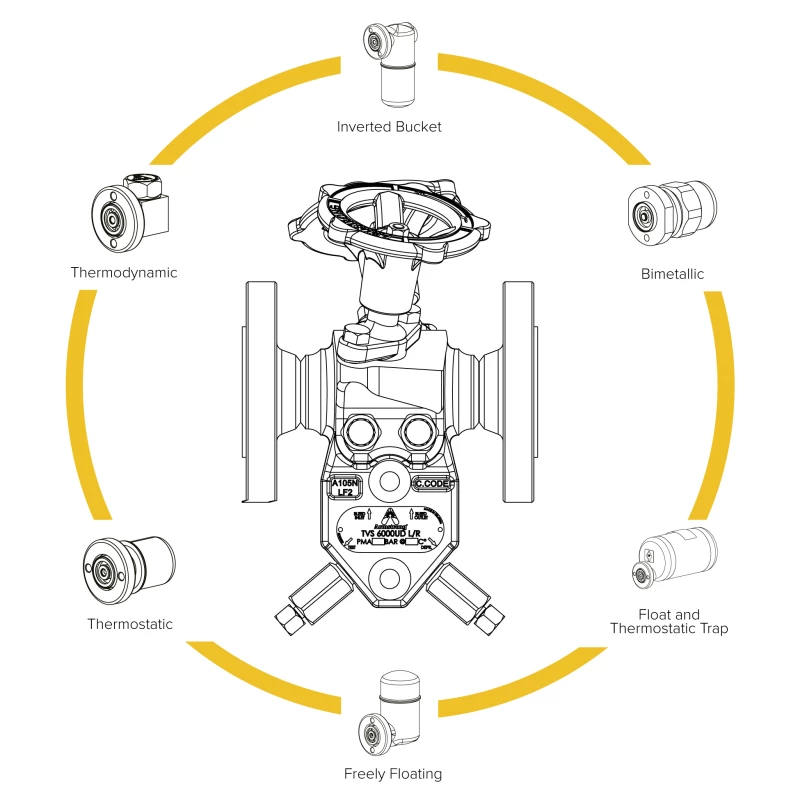

Suitable for: type 2000, AB-3000, SH2600, CD-3300 and WT type
- Double Isolation & bleed.
- Efficient and space-saving.
- Integrated filter, in-block valves (plunger), drain and test valve.
- Universal for all types.
- Quick installation of steam trap or replacement by fixing with 2 bolts.
- Sealing by spiral wound gasket.
- Flow direction left-right and right-left.
Urgency or questions about availability?
Also available
- ANSI flanges, other flange connections on request.
Specifications
| Type | TVS 6000 |
| Material | ASTM A350LF2 |
| Handwheels | Cast Iron |
|
|
|
| Connections | NPT thread, socket weld or flange connection |
Contact
For more information about our trap valve stations, please contact us at:
