EPDM suction/Delivery hose - Lilaring (CHS)

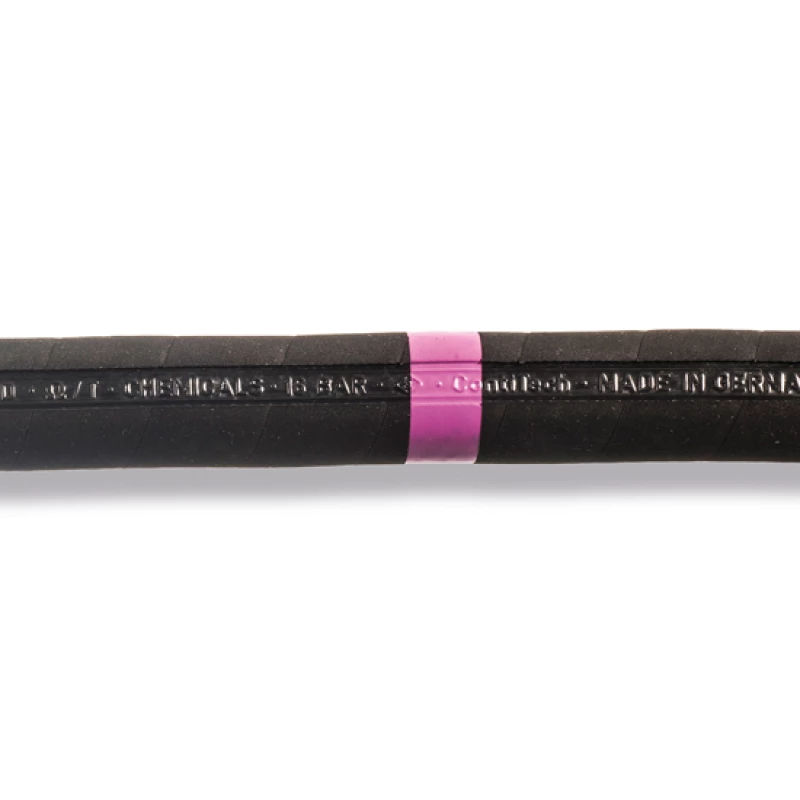

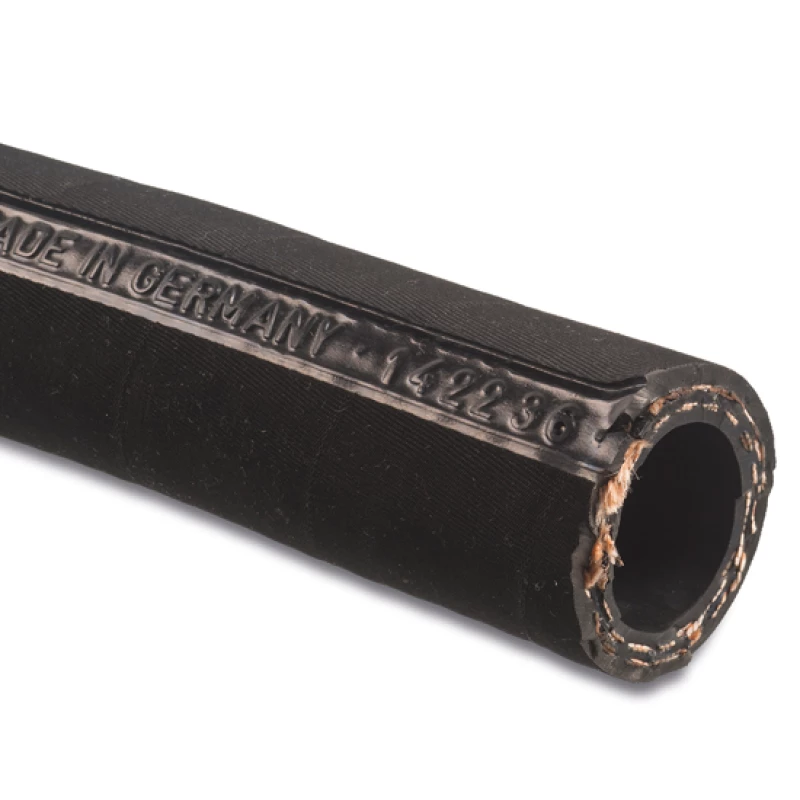

EPDM suction/Delivery hose | Lilaring (CHS)

EPDM suction/Delivery hose | Lilaring (CHS)
EPDM suction/Delivery hose | Lilaring (CHS)
gallery slider left
gallery slider right

Anti-static

Suitable for: Chemicals, acids, alkalis, saline solutions, alcohol, polar solvents, acetates, aldehydes, esters, ketones, phenol, hot water (cooling water) and non-oil hot air.

  • Highly flexible hose for 75% of all industrial chemicals.
  • This loading and unloading hose is resistant to virtually all known solvents and chemicals.
  • Standard : DIN EN 12115; TRbF 131, part 2.
  • Electrically conductive mounting via inner and outer wall without metal penetration.
  • Not suitable for aliphatic, aromatic, halogenated hydrocarbons, fuels, petroleum, chlorides, ethers and tar oils.
Specifications
Downloads
EPDM suction/Delivery hose | Lilaring (CHS)
EPDM suction/Delivery hose | Lilaring (CHS)
Previous series Next Series

Specifications

Type Lilaring (CHS)
Material
Inner wall EPDM, black seamless smooth, electrically conductive
Exterior wall EPDM, electrically conductive, ozone and UV resistant
Inlagen Textile and galvanized steel spiral
Pressure class See table
Temperature from -40º to +100°C
