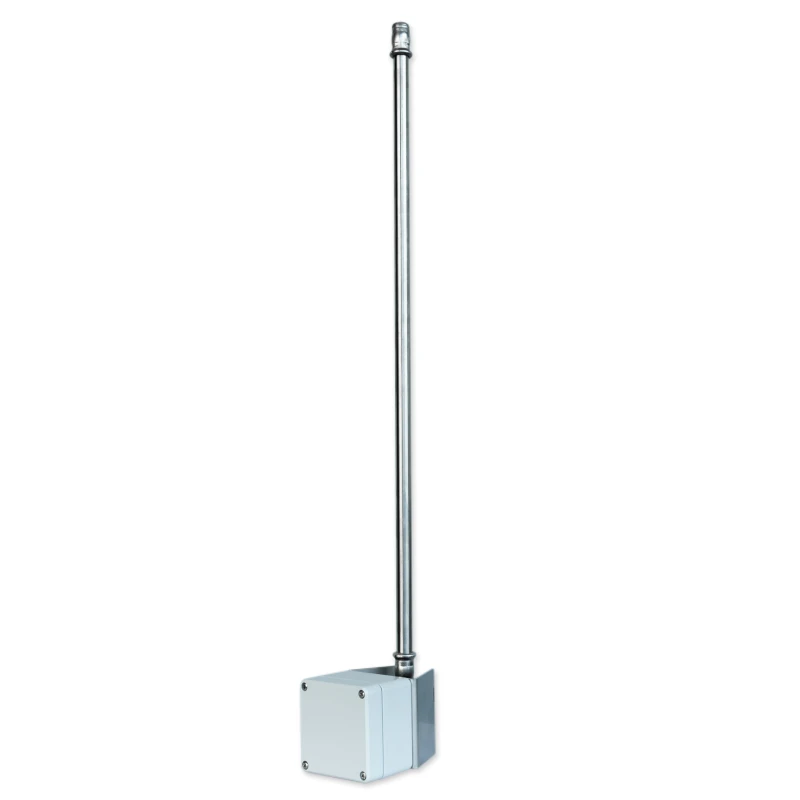

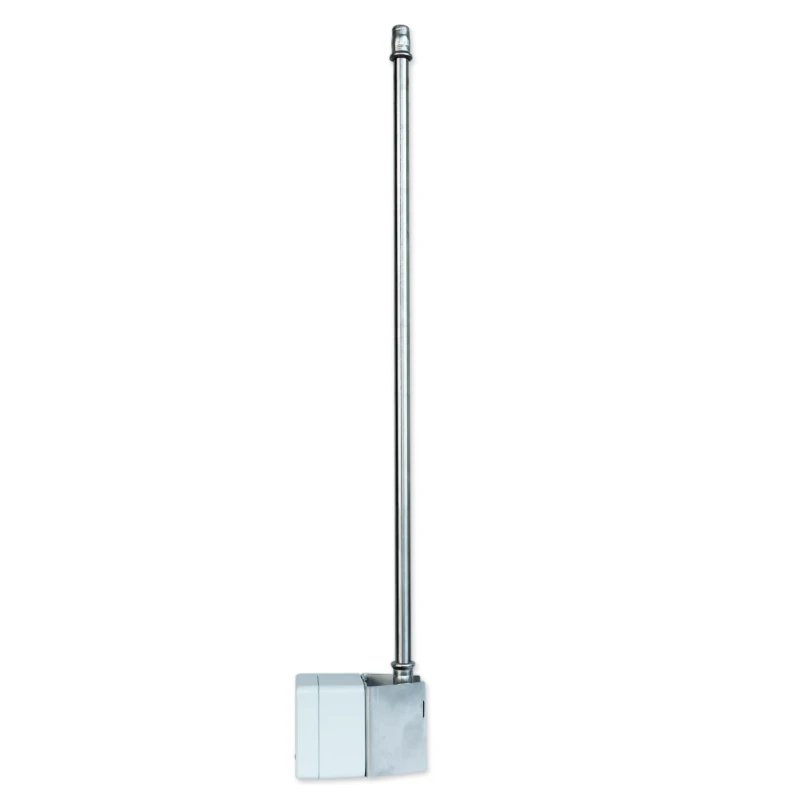

KLINGER Transmitter | KT-S / KT-I / KT-D
4-20mA output signal
Suitable for: Remote level reading. The transmitter is mounted along the entire length of the Magnetic level gauge
- Deployable from -50ºC to +350ºC
- With or without HART, Profibus, Fieldbus
Urgency or questions about availability?
Also available
- suitable for HART protocol
- suitable for Profibus
- suitable for Fieldbus
- stainless steel 316 housing
- LCD display (also with optical control)
- Output signal in Ohms or Volts
- Connection M20 x 1.5 ; 1/2" or 3/4" NPT
- Higher accuracy: +/- 2.5 or 1 mm
- Terminal box mounted on top
- IP68 enclosure
Specifications
| Type | KT-S / KT-I / KT-D |
| Material | Measuring tube made of stainless steel 316 / terminal box coated aluminum |
| System | 2-wire |
| Nutrition | 8 - 35 VDC |
| Output signal | 4-20 mA |
| Error indication | In accordance with NAMUR NE43 - 3.5 or 23mA |
| Connection | M16x1.5 |
| Measurement length | Maximum 5.5 meters |
Contact
For more information about sight glass devices, level gauges, gauge glass seals, and glass products, please feel free to contact:
