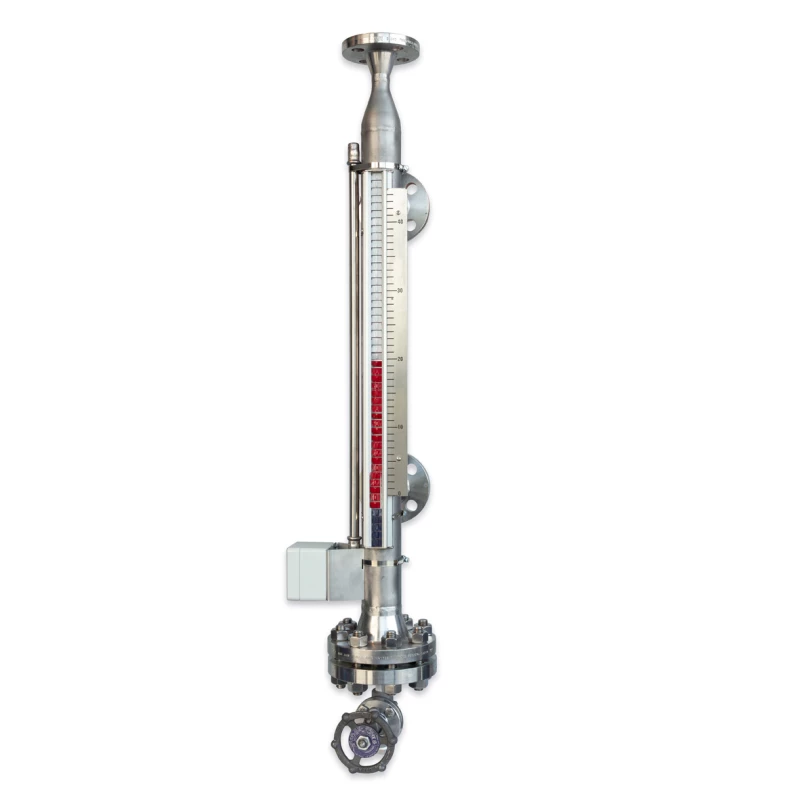

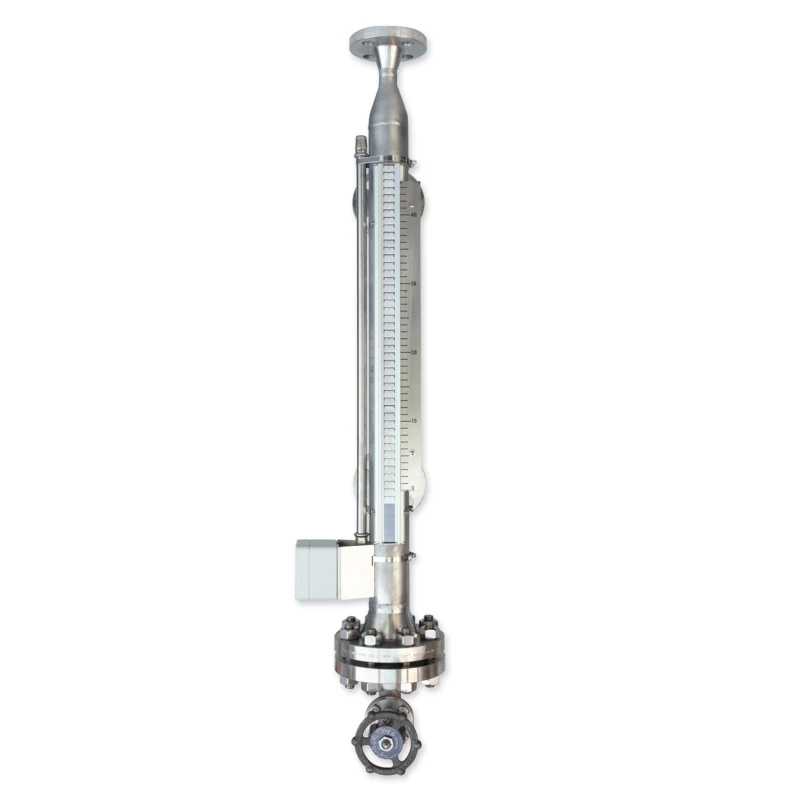

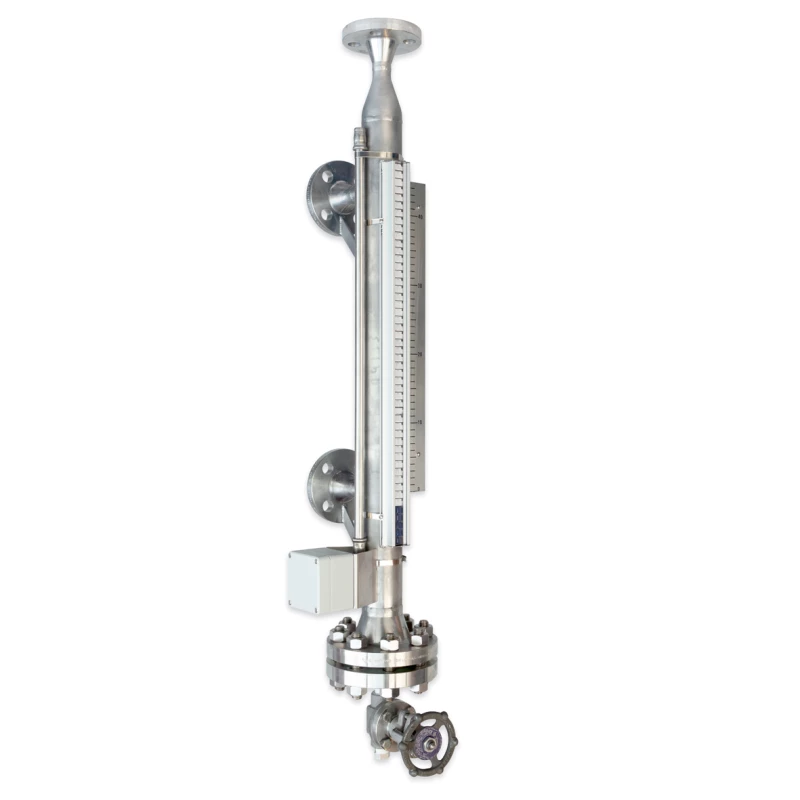

KLINGER Magnetic level gauge | MLG
up to 200 bar working pressure
Suitable for: standard applications, oil, water and also toxic, aggressive, explosive liquids and liquids with very high (+400ºC) or very low (-196ºC) temperature. Level indicator for steam boilers (up to 120 bar).
- Various connection options and designs.
- Increased safety (no leaks).
- Expandable with magnetic switches, transmitters and Non-frost blocks.
- Robust display, resistant to vibration.
- Very clear reading.
Urgency or questions about availability?
Options
- Magnetic switches, transmitters,
- Special materials possible, such as Alloy 825, Titanium, Hastelloy, Sanicro 28, Monel, PP, PVDF, UPVC, PTFE/PFA coated.
- Top mounted for mounting on a tank.
- Float provided with ECTFE (max 150°C) or PFA coating (max 270°C).
To be specified when ordering
- pressure and temperature
- connection and center-to-center distance
- medium and specific gravity medium (SG)
Specifications
| Type | MLG |
| Material | AISI 316L or 1.4401/1.4404 |
| Flanges | AISI 316L or A 105 N |
| Float | AISI 316/ stainless steel 1.4571, Titanium, Hastelloy |
| Display | Aluminum or 316 stainless steel or Polycarbonate |
| Design | According to EN13445 or ASME VIII div. 1 |
|
|
|
| Approvals | Lloyds, ATEX, AOTC, TÜV, SA, CEGB, BASEEFA, CSA |
