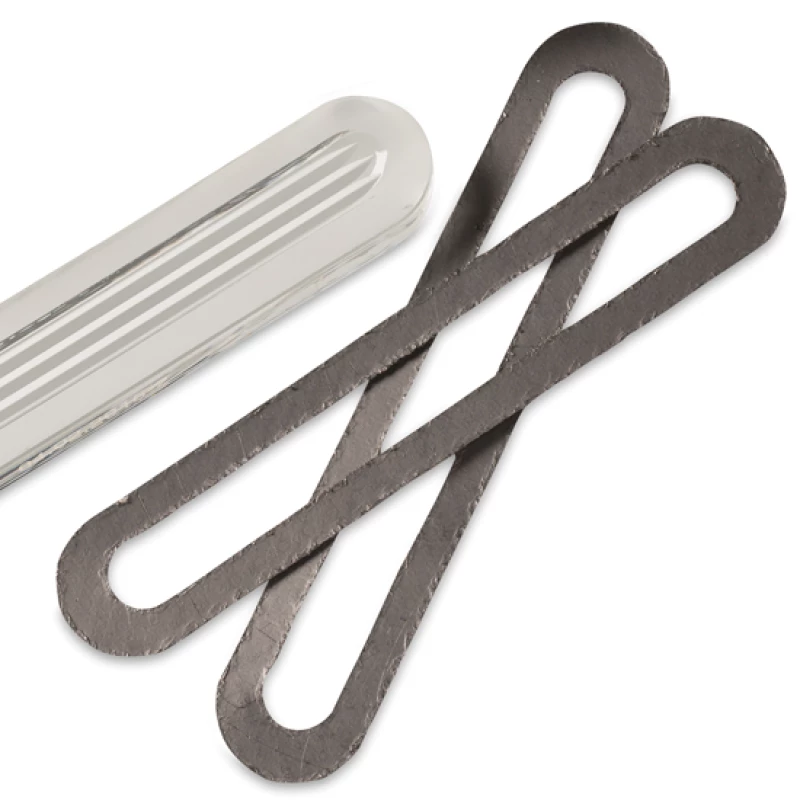

Graphite level gauge gasket PSM B/AS | A and B

Suitable for: steam, hot water and thermal oil

Additional information

Resistance seals

Type	A and B
Material	KLINGER PSM/B/AS
Color	black/grey

Compressibility according to ASTMF36A	35%
Springback according to ASTMF36A	20%
Pressure resistance according to DIN 52913(2mm)	48 N/mm²
Gas permeability according to DIN 3535/4	<0,8 ml/min

Chemical resistance	see resistance list

Approved/tested by	DIN DVGW 88.03e 052
	BAM O2
	"Fire-safe" according to BS 5146
	BL Wien
