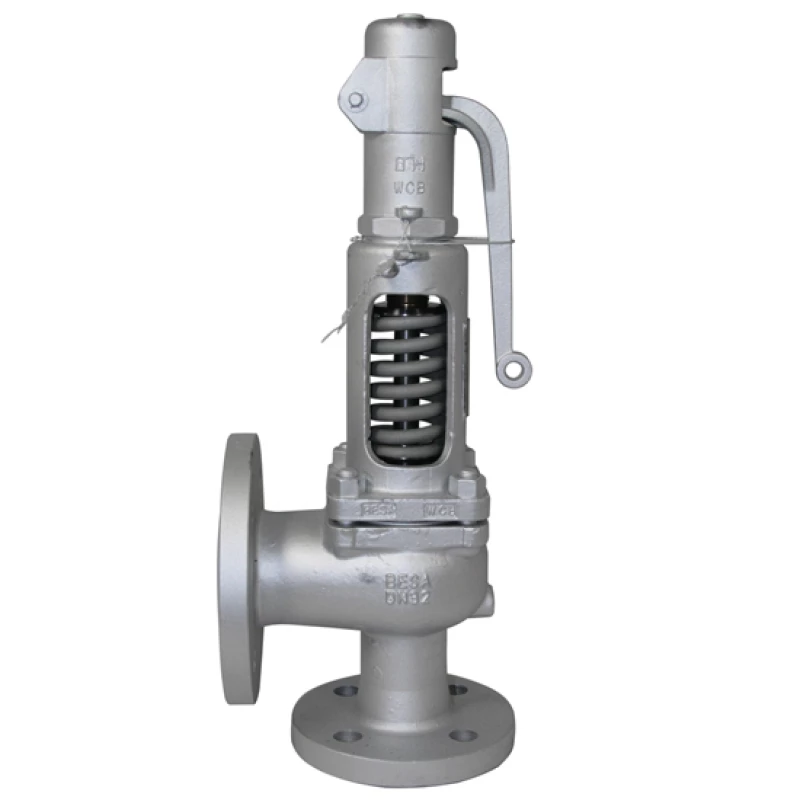

Steel spring safety valve Besa | KP-2008C
High lifting, flanged connection
Suitable for: liquid, steam and non-corrosive gases
- Series 242-C
- Full bore and full opening guarantee the greatest possible capacity and thus maximum safety.
- Each spring safety valve is adjusted and tested separately.
Specifications
| Type | KP-2008C |
| Material | Steel ASTM A216 WCB - EN 1.0619 |
| Pressure class | PN 40 |
| Cap | Steel ASTM A216 WCB - EN 1.0619 with valve lifter (not gas tight) |
| Cap seal | Asbestos-free |
| Disc | STAINLESS STEEL ASTM 420 - EN 1.4028 |
| Seat | STAINLESS STEEL ASTM 316 - EN 1.4401 |
| Spindle | STAINLESS STEEL ASTM 430F - EN 1.4104 |
|
|
|
| Connection | Flange connections, Inlet PN40, Outlet PN16 |
| Temperature | -20 to + 425ºC |
|
|
|
| Other possibilities | Threaded connection (GAS NPT), Bellows, Gas tight cap, |
| without/with valve lifter, PTFE nozzle | |
|
|
|
|
*See table below
|
|
