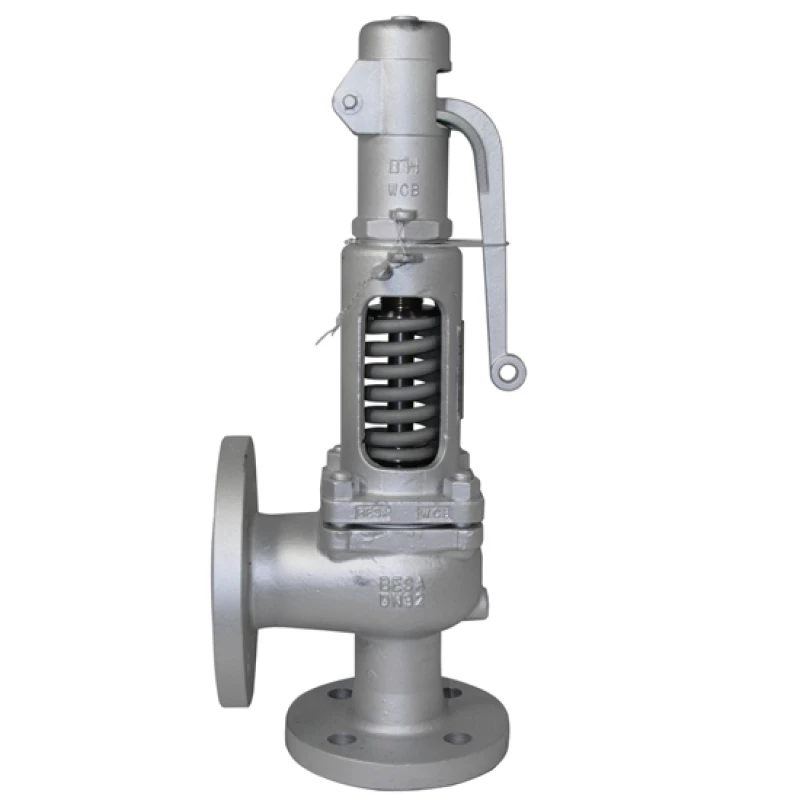

Cast iron spring safety valve Besa | KP-2008G
High lifting, flanged connection
Suitable for: liquid, steam and non-corrosive gases
- Series 242-G
- Full bore and full opening guarantee the greatest possible capacity and thus maximum safety.
- Each spring safety valve is adjusted and tested separately.
Urgency or questions about availability?
Specifications
| Type | KP-2008G |
| Material | Cast Iron G250 |
| Pressure class | PN 25 |
| Cap | Cast iron GS450/10 |
| Cap seal | Asbestos-free |
| Disc | STAINLESS STEEL ASTM 420 - EN 1.4028 |
| Seat | STAINLESS STEEL ASTM 316 - EN 1.4401 |
| Spindle | STAINLESS STEEL ASTM 430F - EN 1.4104 |
|
|
|
| Connection | Flange connections, Inlet PN25, Outlet PN16 |
| Temperature | -10 to +300ºC |
|
|
|
| Other possibilities | Threaded connection (GAS NPT), Bellows, Gas tight cap, |
| without/with valve lifter, PTFE nozzle | |
|
|
|
|
*See table below
|
|
Contact
For more information about our pressure reducing devices, temperature regulators, and safety valves, please contact us at:
