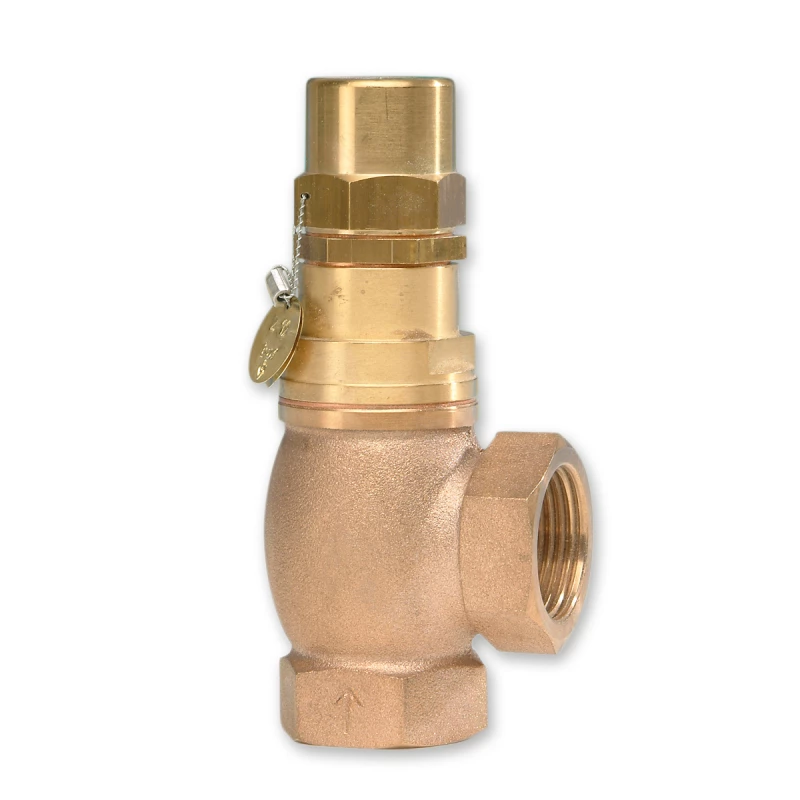

Bronze overflow/overpressure valve | KP-2051

Suitable for: (hot) water, neutral liquids, air and non-corrosive gases

Type	KP-2051
Material	Bronze CuSn5Zn5Pb2-C
Pressure class	PN 20
Disc	Brass with PTFE valve ring
	from 1.1/4" bronze CuSn5Zn5Pb2-C
Seat	Bronze CuSn5Zn5Pb2-C
Spindle	Brass CuZn39Pb3
Cap	up to 1" Brass
	1.1/4" to 2" Bronze
Spring	Stainless steel X10CrNi18-8
Connection	BSP female thread EN1226-1

Temperature	max 220ºC

Setting *)	standard spring 2 to 12bar / adjusted to 6bar
* Optional 12 to 20 bar
