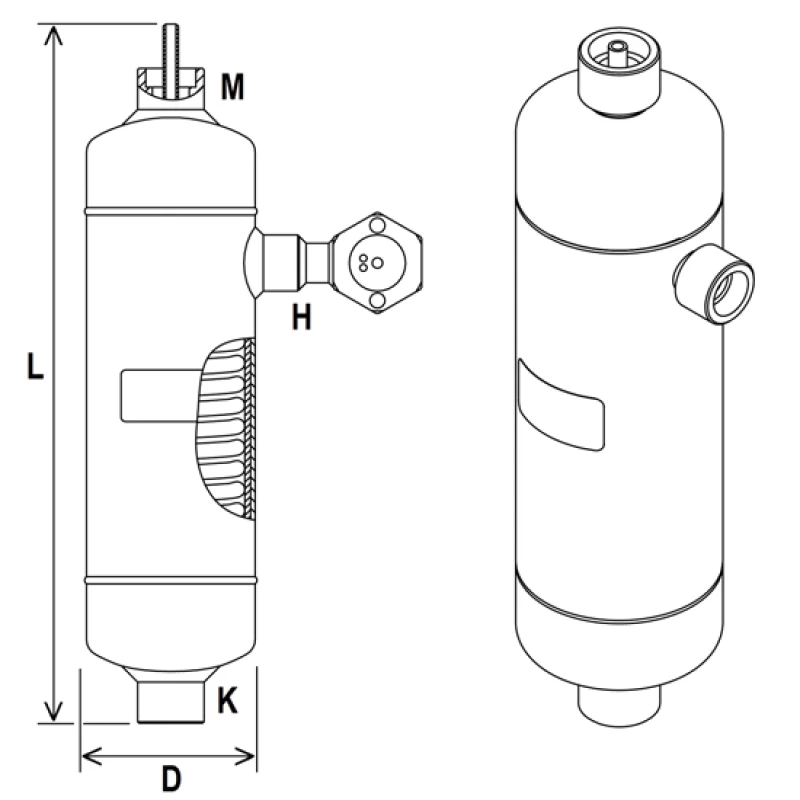

Stainless steel / Steel Armstrong Thermosyphon Mixer | MTS 300 / 500
with SW connections
Suitable for: application where two condensate streams with mutual temperature differences cause water hammering. Due to the thermosyphon effect, this Thermosyphon mixer is self-regulating. For proper selection, application and installation, please contact KLINGER BV.
- Mixes condensate of different temperatures.
- Maintenance-free and not sensitive to dirt.
- Prevents water hammer.
Urgency or questions about availability?
Specifications
| Type | MTS 300 / 500 |
| Material | RVS 304L |
| Internals | RVS 316L |
| Spiral | RVS 316L |
| Tag label | Aluminum |
| Connection hot (H) | RVS 304L |
| Connection mixed (M) | RVS 304L |
|
|
|
| Design pressure max. | 20 bar |
| Design temp. | 250 0C |
| Steam pressure | Max 20 bar @ 232 °C |
|
|
|
|
Minimum temperature difference 3 degrees Celsius.
|
|
|
|
|
| Also available | With welded-on universal connector. |
| with thermalstatic vent bucket. | |
|
|
|
| Capacity | MTS300 - 300 kg/h maximum |
| MTS500 - 500 kg/h maximum | |
|
|
|
