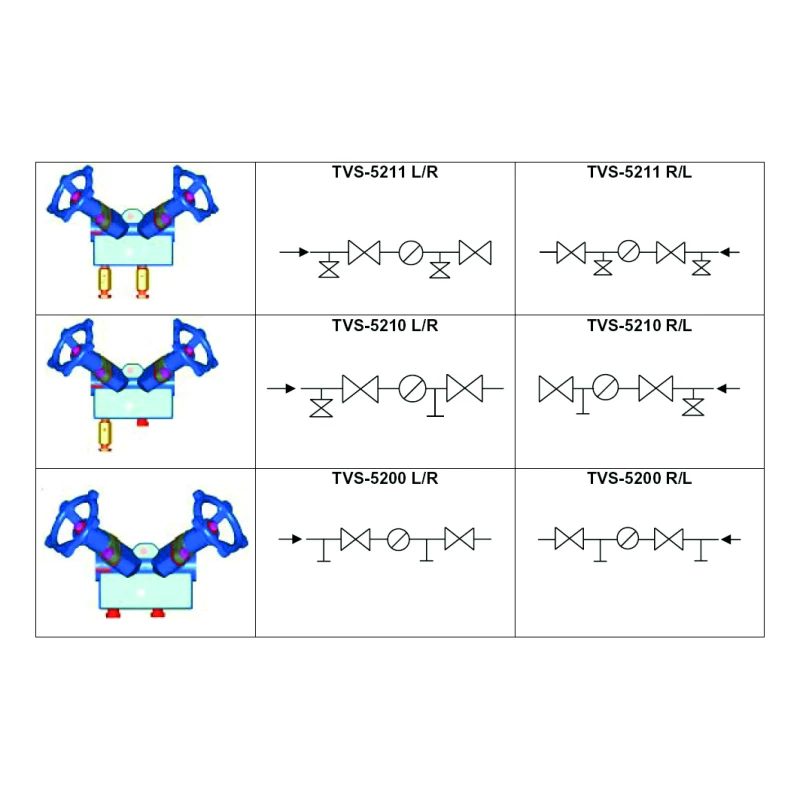

Steel Armstrong trap valve station | TVS 5000
terminal block for mounting steam traps
Suitable for: type 2000, AB-3000, CD-3300 and WT type
- Efficient and space-saving.
- In-block valves (plunger), drain and test valve.
- Universal for all types.
- Quick installation or replacement by fixing with 2 bolts.
- Sealing by spiral wound gasket.
- Flow direction left-right and right-left.
Urgency or questions about availability?
Also available
- BSP Threaded connection
- single in-block valve
Specifications
| Type | TVS 5000 |
| Material | Steel A350 LF2 |
| Handwheels | Cast Iron |
| Coating | High-temperature resistant silicone coating |
|
|
|
| Connections | 1/2" or 3/4" BSPT, NPT or socket weld connection |
