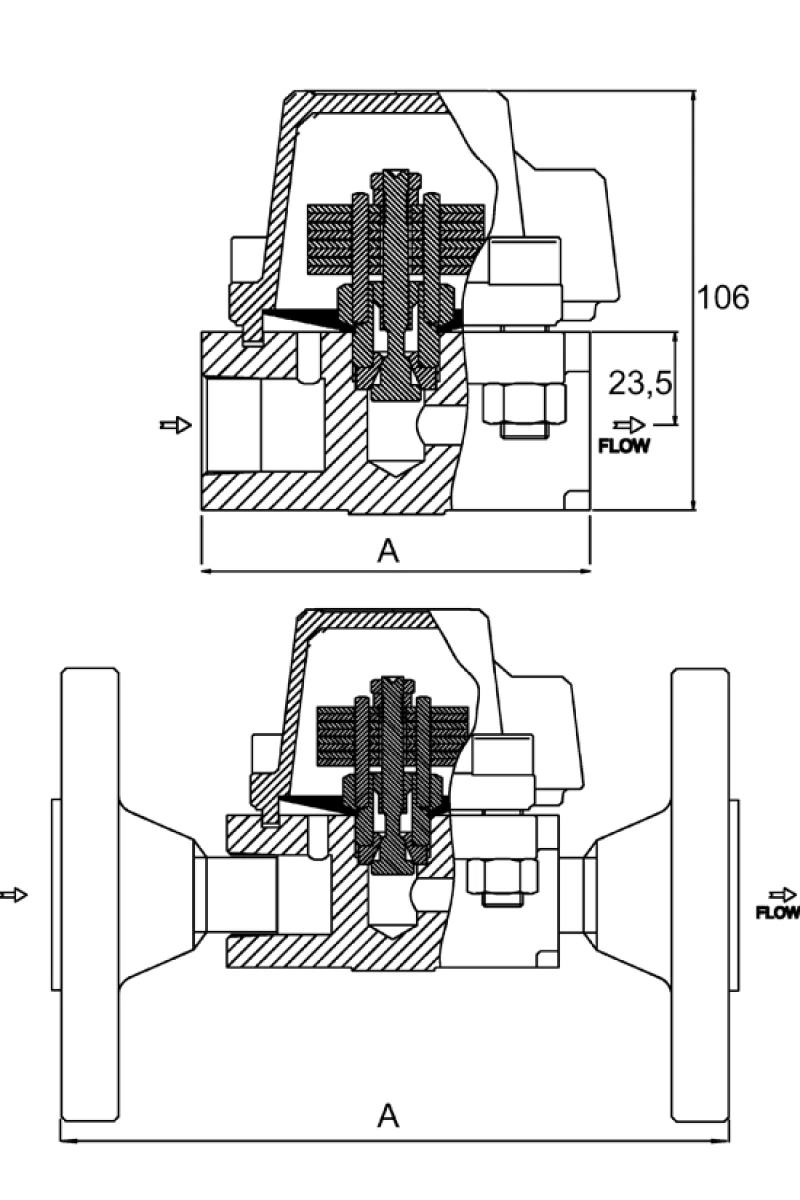

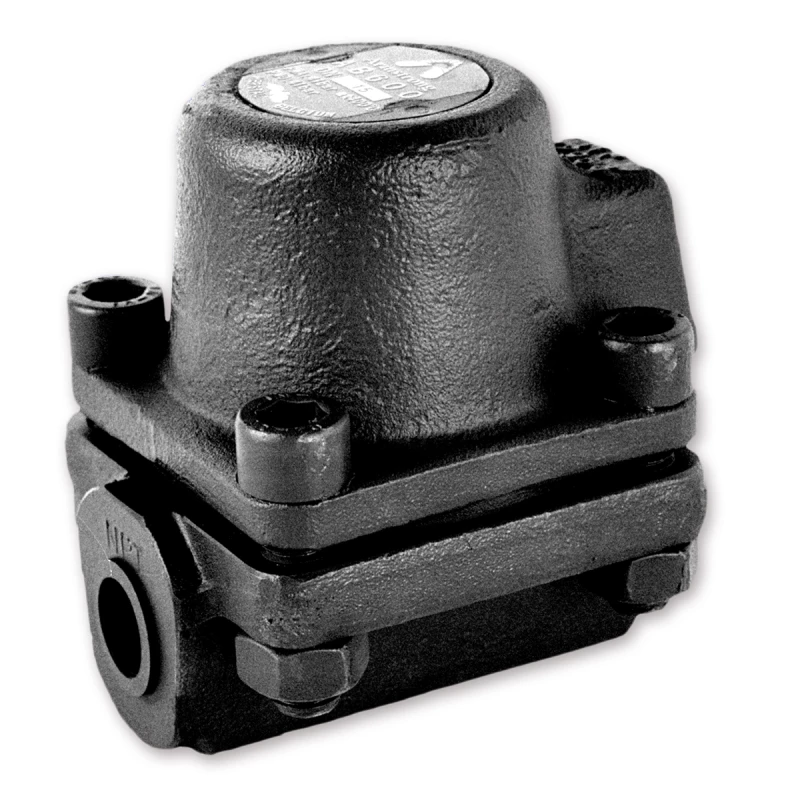

Steel Armstrong thermostatic bimetallic steam trap | AB-600
with integrated filter
Suitable for: dewatering of superheated steam
- Discharges condensate below saturated steam temperature.
- Has very high venting capacity during startup.
- Can also be used as an air vent.
- Coated bi-metal for reduced dirt adhesion.
- Titanium valve and seat for longer service life.
Also available
- stainless steel housing
Specifications
| Type | AB-600 |
| Material | Steel ASTM A105 |
| Disc | Titanium |
| Seat | Titanium |
| Working pressure max. | 41 bar |
|
|
|
| Connections | BSPT or NPT thread, weld (SW) and EN or ANSI flange |
|
|
|
| Temperature | max. 399ºC |
