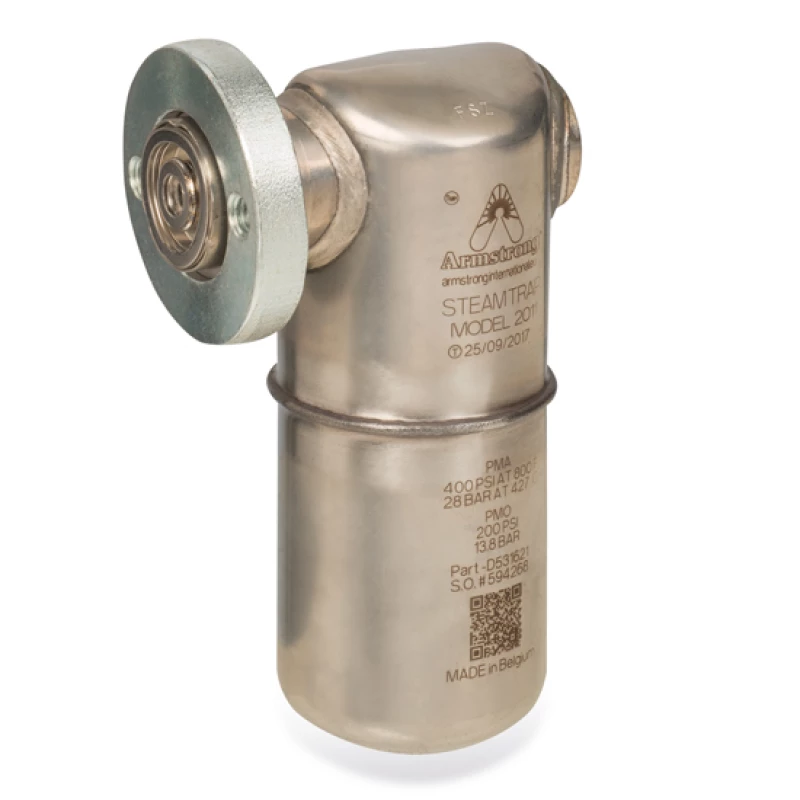

Armstrong stainless steel inverted bucket steam trap | 2000 Series
360º universal connection
Suitable for: dewatering, tracing and process applications by means of the universal connector connection, the steam trap can be placed in any pipe position regardless of the flow direction
- Discharges condensate directly, no condensate back up.
- Maintenance-free and not sensitive to dirt.
- Resistant to water hammer.
- Frost Resistant.
Specifications
| Type | 2000 Series |
| Material | RVS 304L |
|
|
|
| Internals | RVS 304 |
| Valve and seat | hardened chrome steel 440F |
| Working pressure max. | type 2010 14 bar |
| type 2011 28 bar | |
| type 2022 45 bar | |
| Backpressure | up to 99% of inlet pressure |
|
|
|
| Connections | suitable for Universal connector |
| for connections see Type of universal connectors | |
| Temperature | max. 427ºC |
|
|
|
| Also available | different valve passage |
| Insu suit insulation for the 2010 and 2011 | |
| "Pop-drain" automatic drain for the 2011 | |
Contact
For more information on our inverted bucket steam traps, please contact us at:
