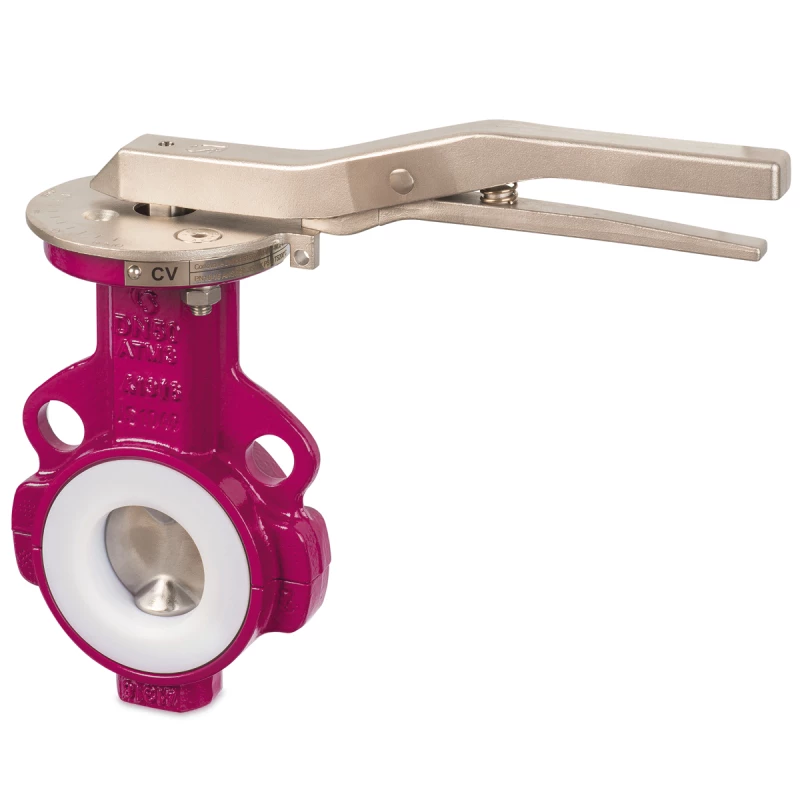

TFM lined butterfly valve | KP-1015

Suitable for: sealing or regulating corrosive liquids, abrasive media, slurry or powder.

Excellent corrosion resistance due to 3mm thick TFM liner and stainless steel or PFA lined disc.
Unique sealing system and spherical design.
Medium only comes in contact with liner and disc.
Externally painted with epoxy coating.
Food EN1935/2004.
TA-luft.
EX.

Urgency or questions about availability?

Selecteer een uitvoering

Specifications

Type	KP-1015
Material	Nodular cast iron EN-JS 1049 with TFM lining
Pressure class	PN 10
Disc	up to DN 200 duplex stainless steel 1.4469
	DN 250 and larger stainless steel 1.4404
Handle	STAINLESS STEEL
Seat	TFM Dyneon with silicone rubber backup ring
Face to face	EN 558-1 series 20

Mounting flange
Operation	ISO 5211
Connection	Mounting between flanges DIN PN10

Temperature	PN10 / -20°C to 200°C according to P/T diagram

Optional
Disc	PFA clad / polished stainless steel / Hastelloy C22 / Titanium
Seat	TFM-C Dyneon Anti Static
Backup ring	FPM
ATEX model	Disc UHMWPE coated
Larger dimensions	Lining UHMWPE

DIN PN 16 and ASME B16.5 class 150 flanges
