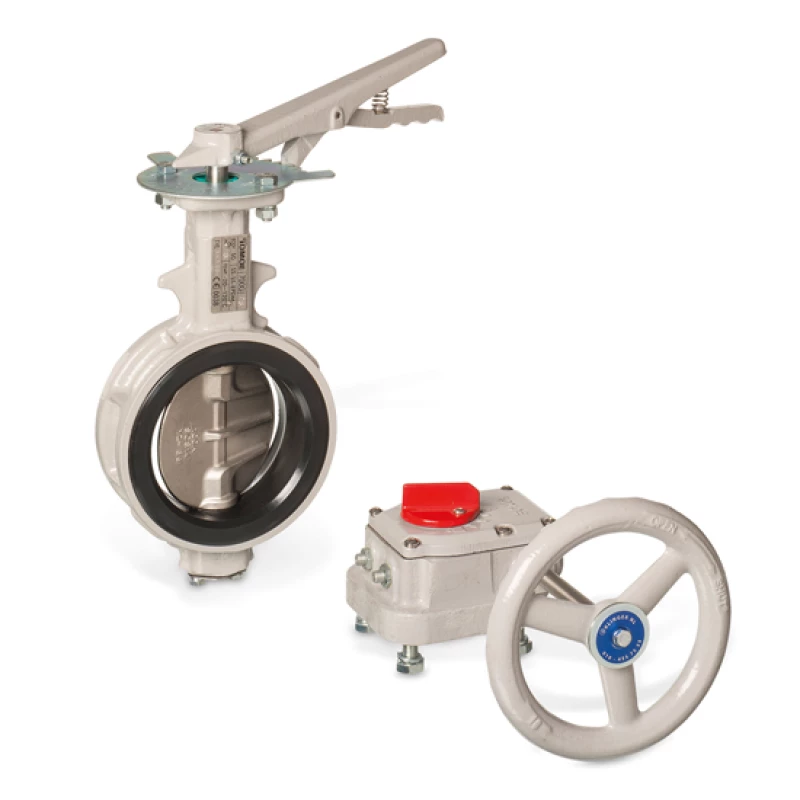

Nodular cast iron heavy duty Tomoe butterfly valve | KP-1066

Suitable for: heavy duty application in chemical and process industry, high velocity and vacuum conditions

Wafer type butterfly valve for flanges PN10, PN16 or ANSI 150#.
Low operating torque, perfect sealing and long lifetime due to cosine curve seat.
High Kv value due to pantented cosine curve seat, large bore diameter and profiled disc.
Excellent leaktight sealing perfomance.
Tomoe Series 731P.
Equipped with top flange according to ISO 5211 for easy mounting with an actuator.
Pressure class: PN 16.

Note: For pneumatically operated butterfly valve, see: Automation kit Tomoe butterfly valves with Air Torque actuators.

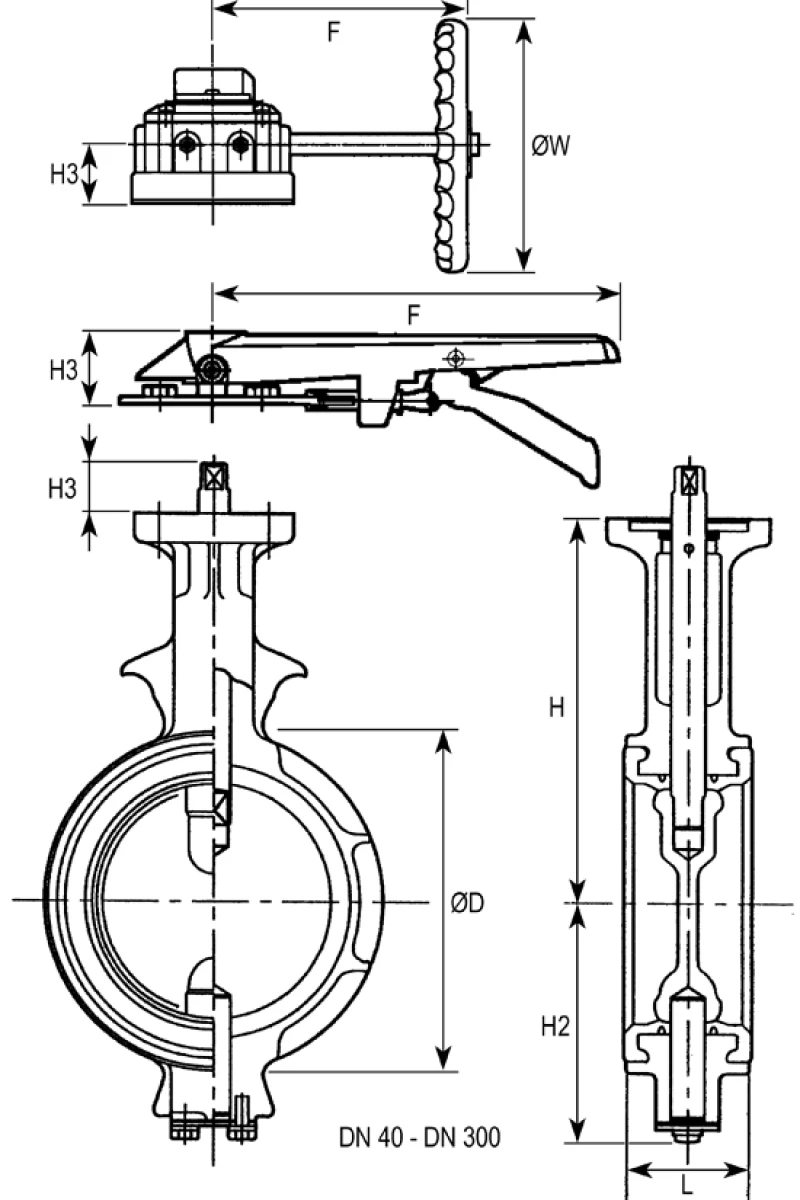

Specifications

Type	KP-1066
Material	Nodular Cast Iron EN-GJS-450-10 (with epoxy coating)
Pressure class	PN 16
Disc	STAINLESS STEEL EN 10213-4
Shaft	Stainless steel X20Cr13
Seat	EPDM or NBR, vulcanized to the body
Handle	ductile iron
Gearbox	Cast iron, stainless steel wormshaft and cast iron hand wheel.
Face to face	EN558-1 series 20
Flow rate	liquid up to 6m/sec.

Temperature	NBR -10 to 80ºC
	EPDM -20 to 120ºC

Maximum working pressure	16 bar

Also available in model for 20 bar.
