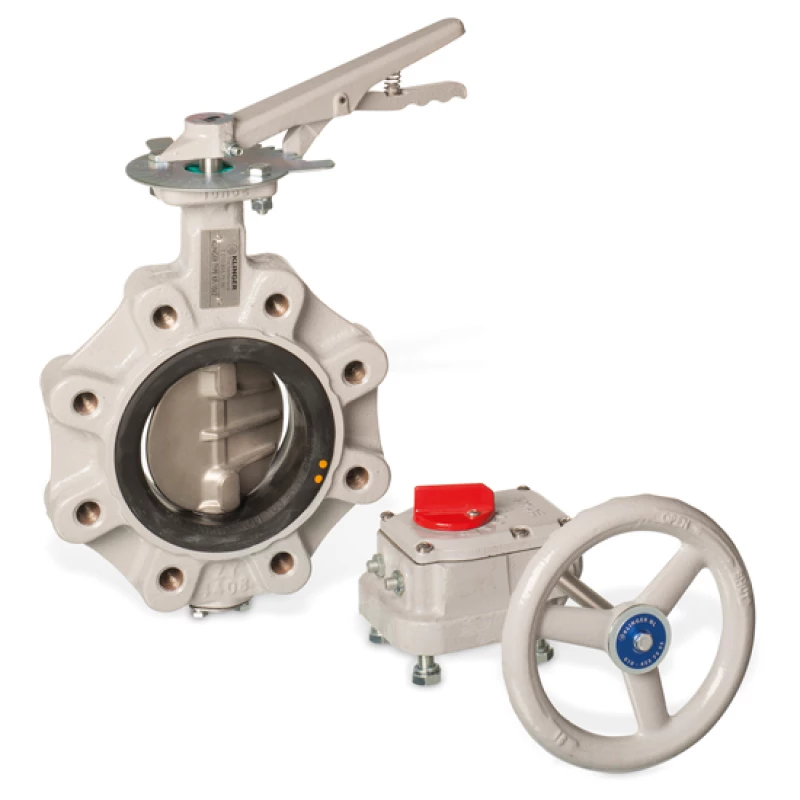

Nodular cast iron Tomoe butterfly valve | KP-1062

Suitable for: general application in chemical and process industry

Wafer lug type with threaded holes for flanges PN10 or PN16 or ANSI 150#.
Low operating torque, perfect sealing and long lifetime due to cosine curve seat.

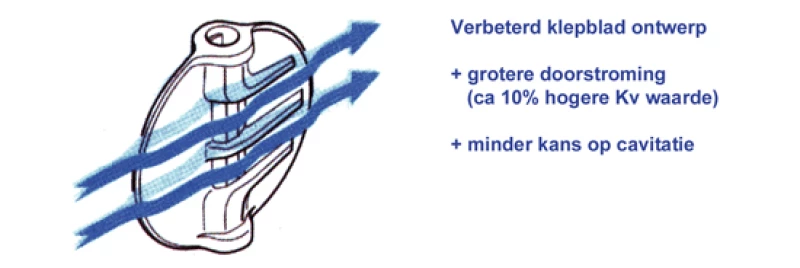

High Kv value due to pantented cosine curve seat, large bore diameter and profiled disc.
Excellent leaktight sealing perfomance.
Equipped with top flange according to ISO 5211 for easy mounting with an actuator.
Tomoe Series 704G.

Additional information

Installation instructions Tomoe butterfly valves

Urgency or questions about availability?

Note: For pneumatically operated butterfly valve, see: Automation kit Tomoe butterfly valves with Air Torque actuators.

Type	KP-1062
Material	Nodular Cast Iron EN-GJS-450-10 (with epoxy coating)
Pressure class	PN16 DN40 to DN200
	PN10 DN250 and larger
Disc	DN40 to DN300 stainless steel EN 10213-4 grade Grade GX5CrNiMo19-11-2 (AISI 316) from DN350 stainless steel EN 10212-4 Grade X5CrNi18-10 (AIS304) option AISI 316
Shaft	Stainless steel EN 10088-3 X46Cr13 (AISI 420)
Seat	EPDM, Hi EPDM or NBR
Handle	ductile iron
Gearbox	Cast iron, stainless steel wormshaft and cast iron hand wheel.
Face to face	EN 558-1 series 20
Connection	DN40 to DN150 DIN PN10/16 or ANSI 150#
	DN200 to DN600 DIN PN10 or PN16 or ANSI 150#
Flow rate	Liquid up to 3m/sec

Temperature	NBR -10 to 80ºC
	EPDM -20 to 120ºC
	Hi EPDM -20 to 150ºC

Contact

For more information about our Tomoe butterfly valves for control application, please contact us at:

appendages@klinger.nl
