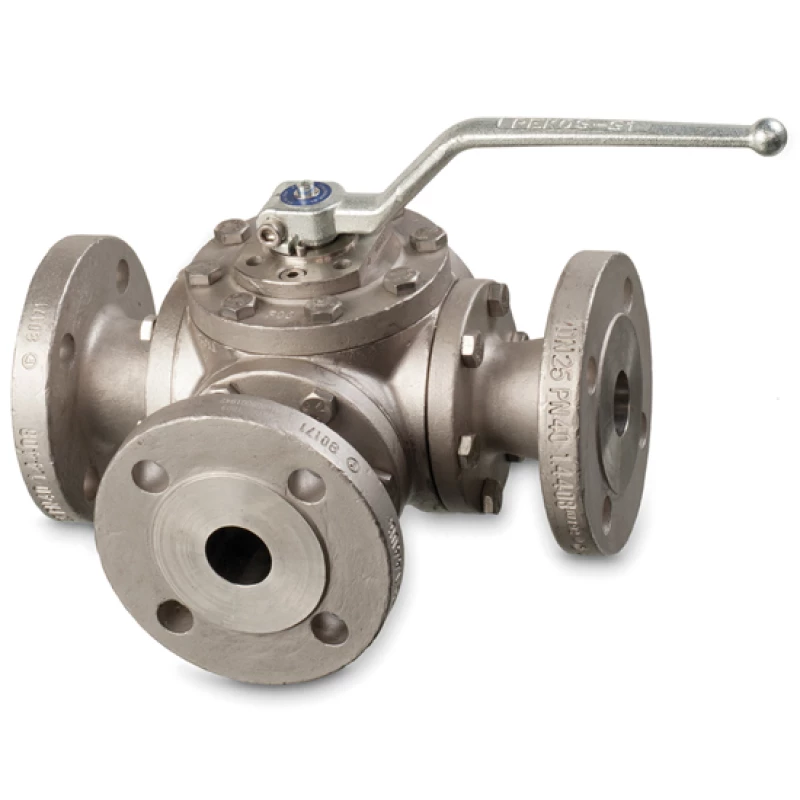

Stainless steel Pekos 3-way ball valve | KP-2522
Flange connection PN 16 / PN 40, full bore, T- or L-bore
Suitable for: water, oil, air, gases and hydrocarbons
- Anti-static, spindle resistant to "blow-outs.
- Spindle seal with TA-Luft approval.
- Equipped with top flange according to ISO 5211 for easy mounting of a control unit or spindle extension.
- Standard with 90º opening.
- ATEX 94/9/EC.
- SIL 3IEC61508.

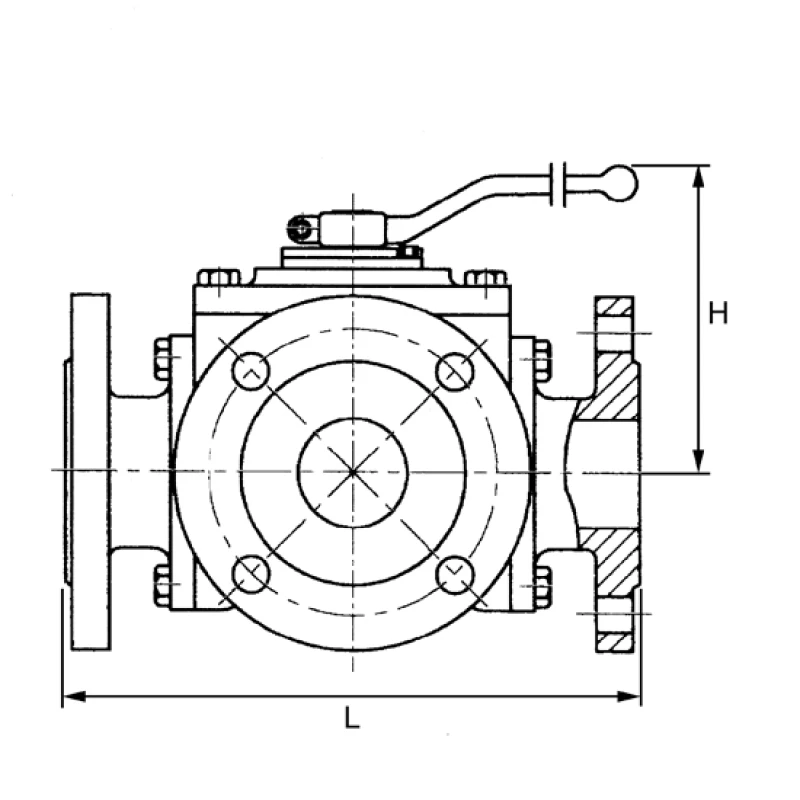

*Height center of pipe to ISO top flange, without handle/gearbox.
Also available
- ANSI 150# or 300# flange connection
- 4-way ball valve with T, L or X bore
- PN 16 model for DN 65, DN 100, DN 100
- complete with pneumatic or electric operation, see automation set Pekos 3-way ball valve
Specifications
| Type | KP-2522 |
| Material | Stainless steel GX5CrNiMo19-11-2 |
| Pressure class | See table |
| Bullet | Stainless steel GX5CrNiMo19-11-2 |
| Spindle | Stainless steel X5CrNiMo17-12-2 |
| Handle | WCB |
| Div.elements | PTFE |
| Spindle seal | PTFE |
|
|
|
| Connection | EN 1092-01 |
|
|
|
| Temperature | -10°C to +240°C (pressure and temperature dependent) |
