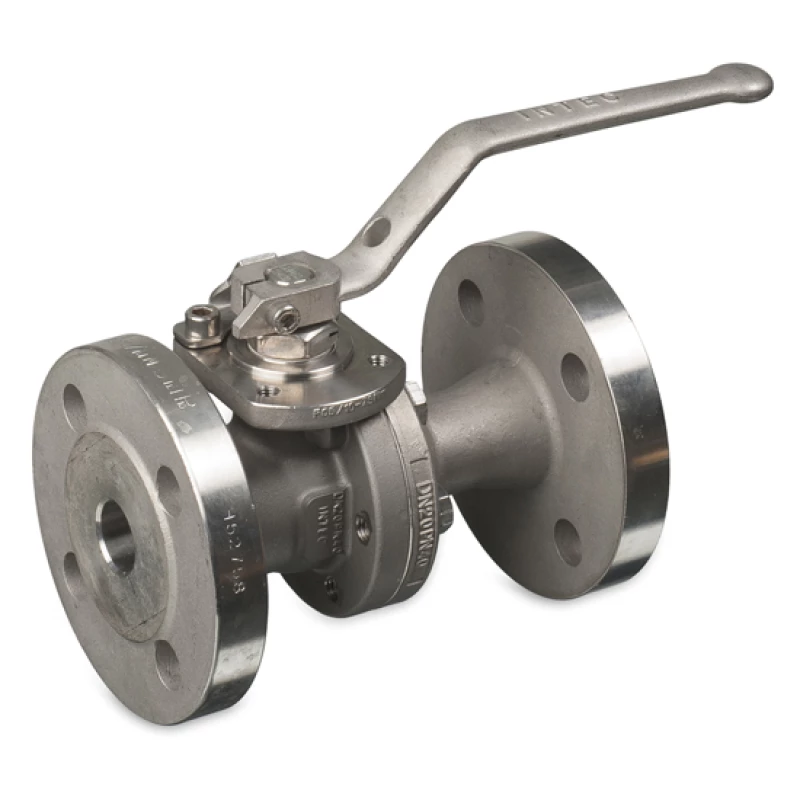

Stainless steel Intec K200 ball valve | KP-2658
Flange connection ANSI 150lbs / 300lbs, full bore, 2-piece
Suitable for: water, oil, gases, steam, hydrocarbons and acids
- Excellent for chemical and petrochemical applications.
- Fire-safe according to DIN EN ISO 10497.
- Spindle resistant to "blow-outs" and anti-static.
- Top flange connection according to DIN EN ISO 5211.
- TA-Luft VDI 2440.
- PED.
- ATEX 94/9/EC.
- Materials according to NACE MR0175.
- SIL 3.
Urgency or questions about availability?
Also available
- complete with pneumatic or electric operation, see automation set Intec ball valves
- spindle extension
- Size 6" and 8" available upon request
Specifications
| Type | KP-2658 |
| Material | STAINLESS STEEL ASTM A351-CF8M |
| Pressure class | ANSI 150lbs / 300lbs |
| Bullet | STAINLESS STEEL ASTM A351-CF8M |
| Spindle | Stainless steel X2CrNiMoN22-5-3 |
| Handle | Up to 3" stainless steel GX5CrNiMo19-11-2 |
| 3" and larger Stainless steel GX5CrNi19-10 / Steel galvanized | |
| Div.elements | KFGN (Glass fiber reinforced TFM, nitrogen sintered) |
| / KFM (modified PTFE) | |
| Spindle seal | KFGN/Graphite/KFAM ((modified PTFE) with antistatic filler |
| House Seal | KF (PTFE) |

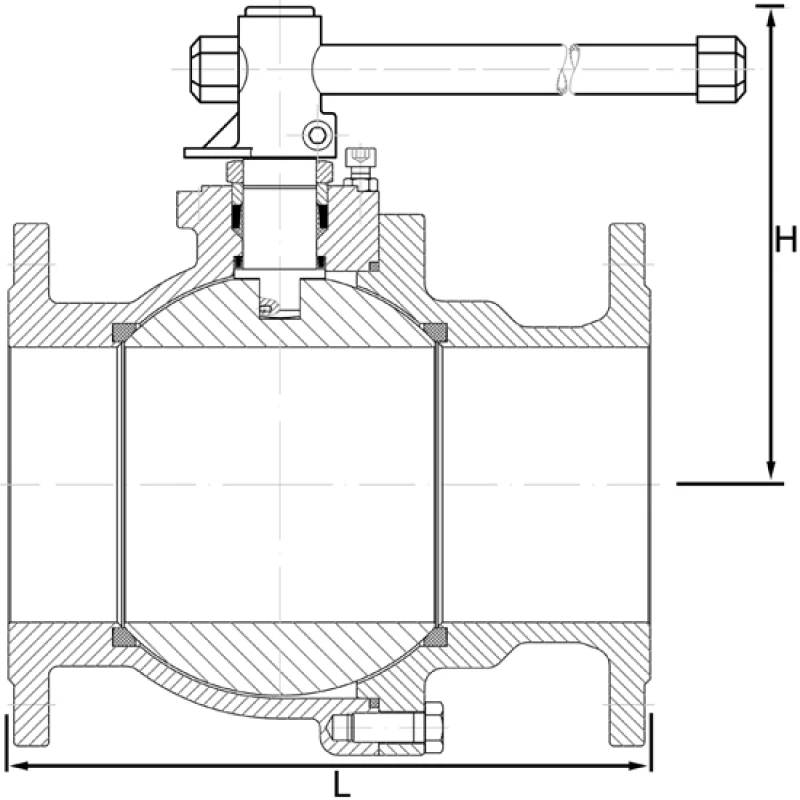

| Face to face | ANSI B 16.10 |
| Connection | Flange connection ANSI B 16.5 |
| Temperature | -29°C to +225°C (pressure and temperature dependent) |
