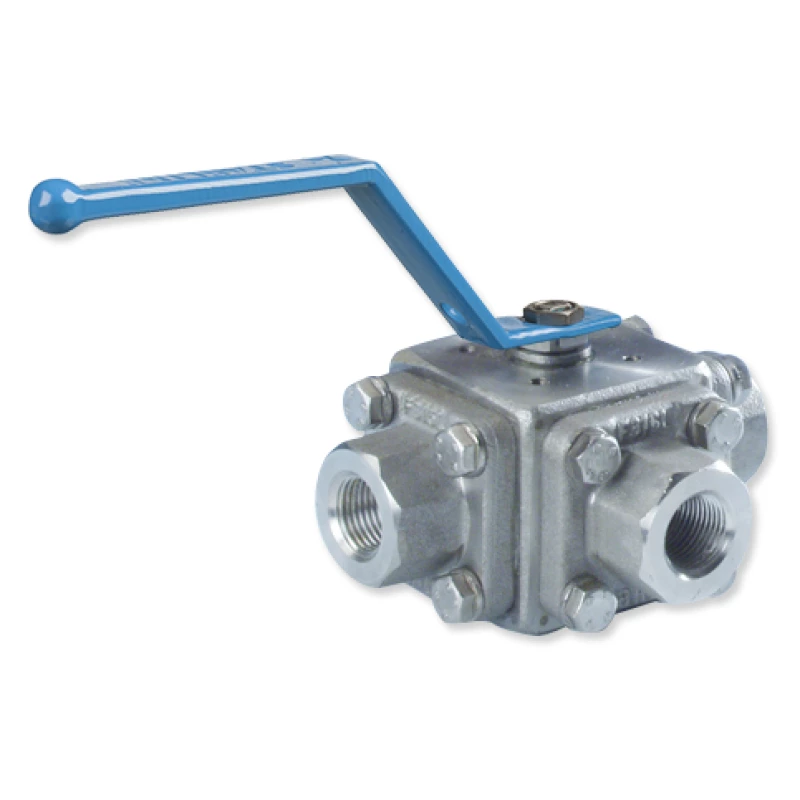

Stainless steel Pekos 3-way ball valve | KP-2590

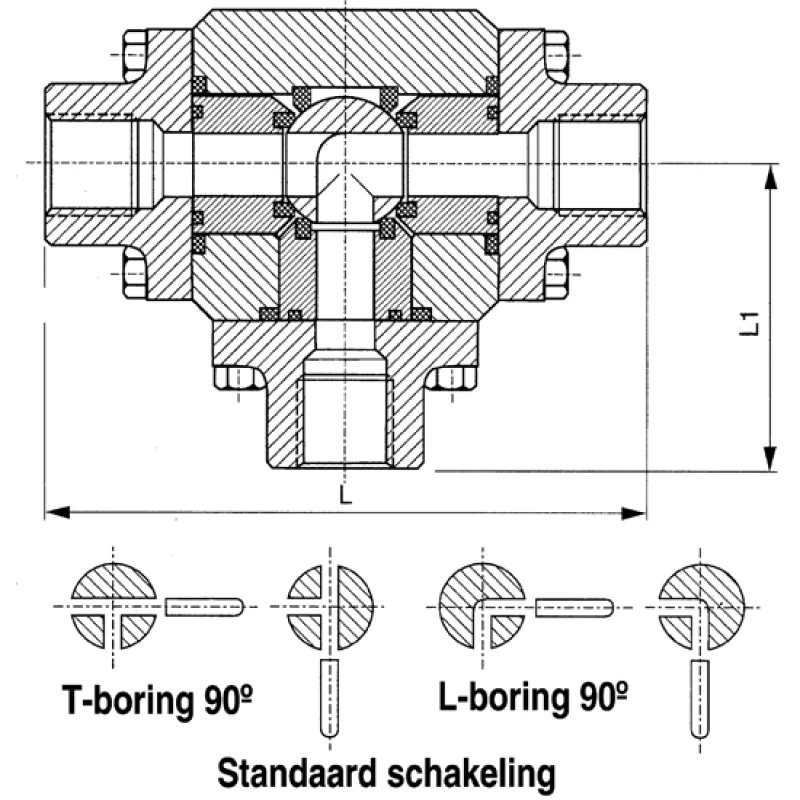

Threaded connection BSP to PN100, full bore, T- or L-bore
Suitable for: water, oil, air, gas and hydrocarbons
- Anti-static, spindle resistant to "blow-outs.
- Equipped with ISO 5211 top flange for easy mounting of a control unit.
- Equipped with 4 sealing rings for perfect sealing and ball guidance.
- Standard with 90° opening.
- P.E.D. 97/23/EC - ATEX 94/9 CE.
- NACE MR 0175 Latest Edition.
- ASME B16.34 - ASME B31.1 - API6D.
Urgency or questions about availability?
Also available
- sizes 1.1/4", 1.1/2" and 2" available on request
- welding connection Butt-Weld or Socket-Weld
- reduced bore
- complete with pneumatic or electric operation, see automation section
Specifications
| Type | KP-2590 |
| Material | AISI 316 STAINLESS STEEL |
| Pressure class | See table |
| Bullet | AISI 316 STAINLESS STEEL |
| Spindle | AISI 316 STAINLESS STEEL |
| Handle | Galvanized steel / epoxy coated |
| Div.elements | Fiberglass reinforced PTFE |
| Spindle seal | Glass fiber reinforced PTFE/Graphite |
|
|
|
| Connection | BSP female thread |
|
|
|
| Temperature | -60°C to +230°C |
Contact
For more information about our Ball valves. please contact us at:
