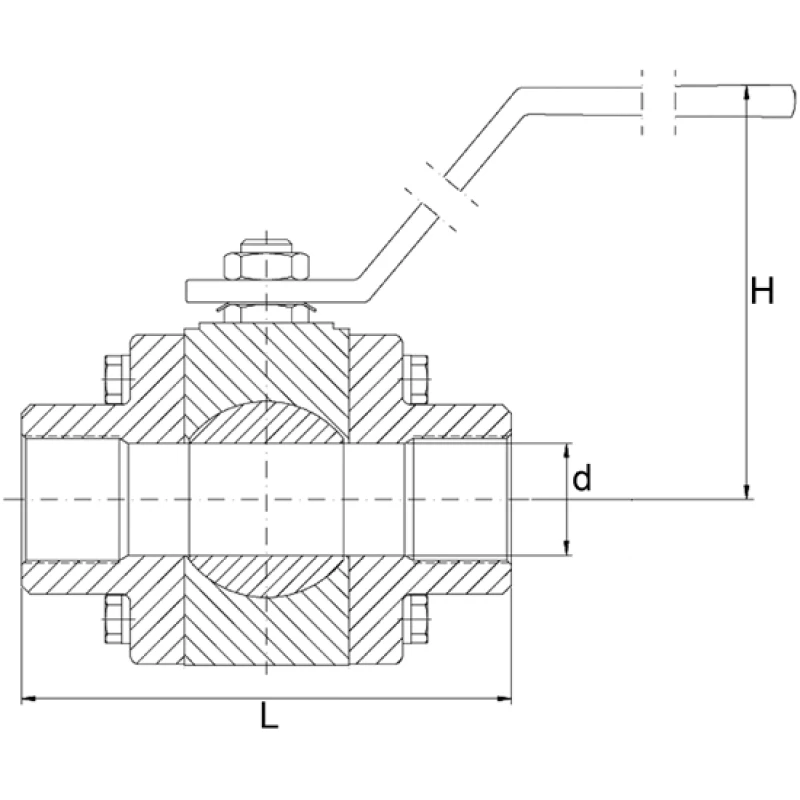

Steel ball valve | KP-2589
Threaded connection BSPP, up to 800 Lbs, full and reduced, 3-piece
Suitable for: hydrocarbons, water, oil and air in (petro)chemistry, industry and off-shore
- Anti-static.
- Spindle anti 'blow-out'.
- Construction according to AP 6D, B16.34.
- ATEX 94/9/EC.
- SIL 3IEC61508.
- TA-Luft according to VDI 2440.
- Equipped with ISO 5211 top flange for easy mounting of a control unit.
- Fire safe EN ISO 10497.
- Material according to NACE MR0175.
Also available
- NPT, BW, SW connection
- locking device
- With pneumatic or electric operation
Specifications
| Type | KP-2589 |
| Material | Steel, ASTM A 350 LF2/A-105 |
| Pressure class | See table |
| Bullet | STAINLESS STEEL AISI 316/316L |
| Spindle | STAINLESS STEEL AISI 316/316L |
| Handle | Steel painted |
| Div.elements | PTFE with carbon graphite |
| Spindle seal | Graphite/ FKM O-ring |
|
|
|
| Connection | BSPP female thread |
| Temperature | -46°C to +250°C. (pressure and temperature dependent) |
