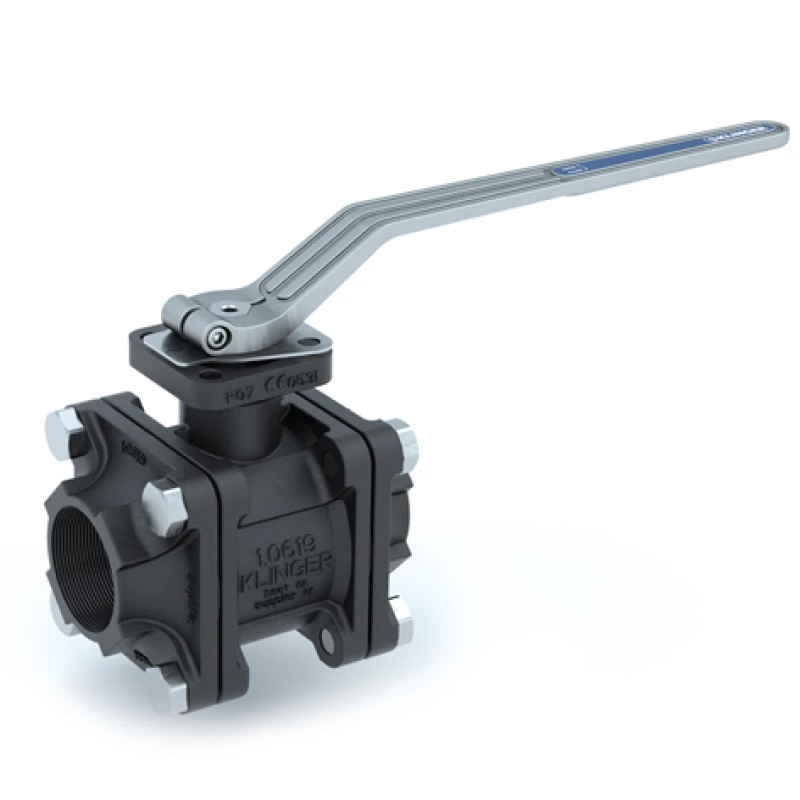

Steel KLINGER Ballostar KHA ball valve | KP-2473

Suitable for: water, oil, gases, steam and hydrocarbons

Maintenance-free
Ball with a cylindrical full bore.
Anti blow-out spindle.
Nastable Gland packing.
Standard model TA luft VDI 2440/ISO15848 certified.
SIL2 IEC61508.
Robust construction excellent resistance to thermal stress.
Unique sealing system with spring-loaded sealing elements enclosed by stainless steel.
Bi directional seal according to EN12266 leakage class A.
Modular design and selection of various components.
To be maintained without disassembly from the pipe.
Anti static design in accordance with ISO7121 / EN1983.
Automation possible afterwards, top flange in accordance with ISO EN 5211.
Special KACP coating.
Lockable handle (by padlock).

Additional information

Metallic sealing system.
Fire Safe model.
Gas model (max 5 bar).
Threaded connection NPT according to ANSI B 2.1.
Complete with pneumatic or electric controls, see Ballostar ball valves automation kit.
Version fire safe certified EN10497 and API607.

Type	KP-2473
Material	Cast steel EN-GP240GH/1.0619
Pressure class	PN 40/63 or 100 (see table)
Bullet	STAINLESS STEEL 1.4401/1.4408
Spindle	STAINLESS STEEL 1.4104 ( ANSI430F)
Handle	STAINLESS STEEL
Div.elements	KFC carbon reinforced PTFE in spring-loaded stainless steel element
House Seal	Graphite+ KLINGERSilC4430®
Spindle seal	graphite + Aflas

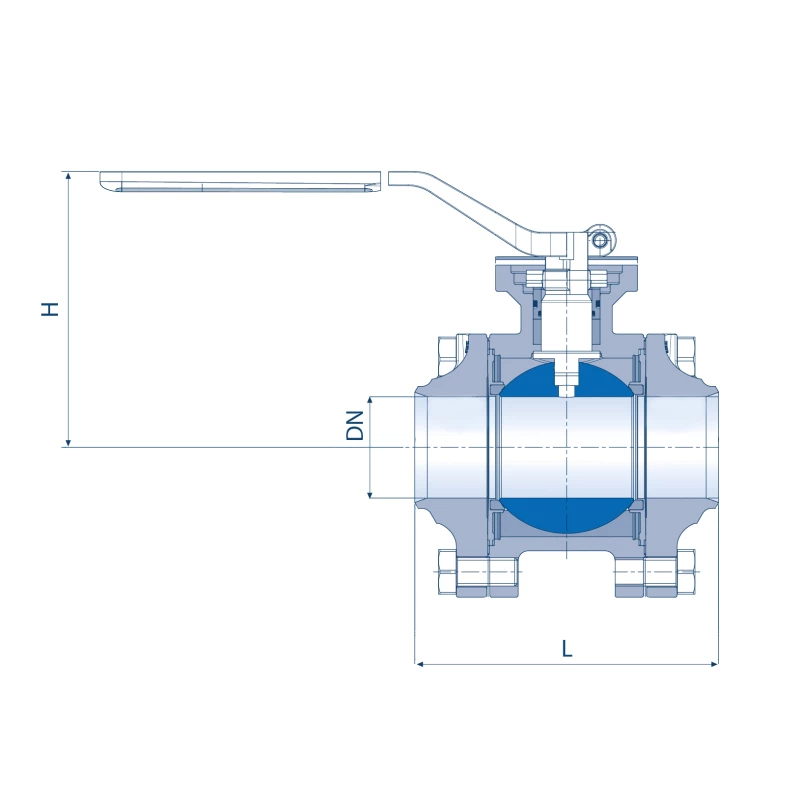

Face to face	EN16722-114
Connection	Rp according to EN12266-1 (BSPT female thread)

Temperature	-10°C to +300°C (pressure and temperature dependent)
