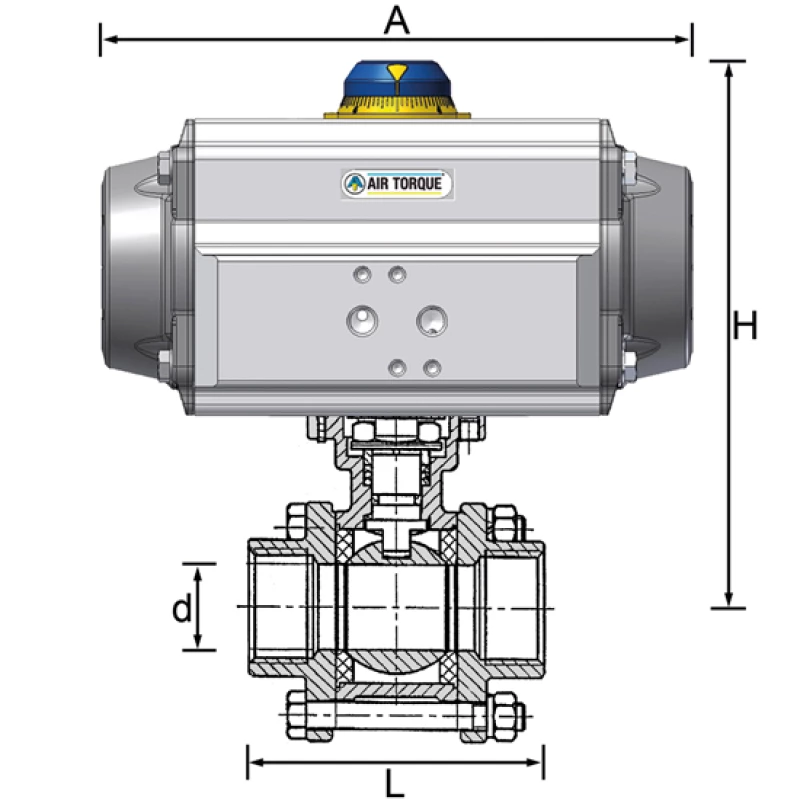

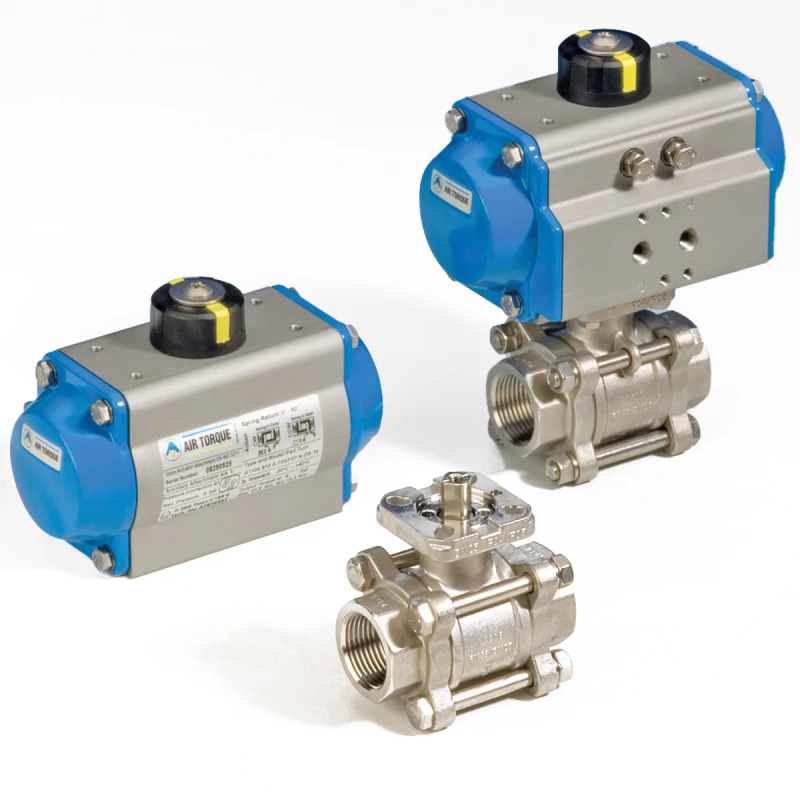

Stainless steel ball valve | KP-2606
Threaded connection BSP, PN 63, full bore, 3-piece, equipped with Air Torque pneumatic actuator
Suitable for: general application: water, oil and air
- Air Torque pneumatic actuator, double-acting or spring return.
- Easily fitted with solenoid valve, positioner or positioner.
- Compact dimensions due to direct mounting.
Urgency or questions about availability?
The spring return actuators are spring-closed as standard. If spring-opening is required, please specify when ordering.
Also available
- limit switchbox
- solenoid valve
- positioner
- air torque actuator E-coating model
Specifications
| Type | KP-2606 |
| Material | Stainless steel GX5CrNiMo19-11-2 |
| Pressure class | PN 63 |
| Bullet | Stainless steel GX5CrNiMo17-12-2 |
| Spindle | Stainless steel GX5CrNiMo17-12-2 |
| Div.elements | PTFE |
| Spindle seal | PTFE |
|
|
|
| Connection | BSP female thread DIN/ISO 228/1 |
|
|
|
| Temperature | -20°C to +200°C |
|
|
|
| Actuator | Air Torque, coating A |
