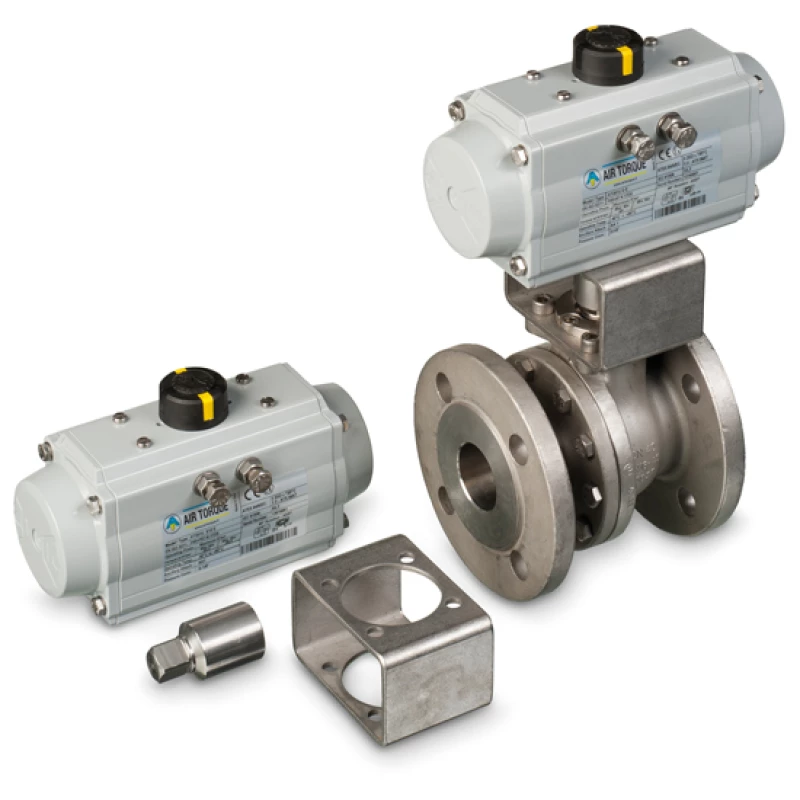

Automation set Pekos ball valve - 2-piece | Pekos
Air Torque actuator A and E coating incl. bridge piece and coupler
Suitable for: standard automated applications
- Air Torque pneumatic actuators are fully standardized.
- Excellent corrosion resistance.
- Adjustable travel stops for open and closed position.
Urgency or questions about availability?
Specifications
| Type | Pekos |
| Material | |
| Mounting bracket | Stainless steel (steel available from F10/F10) |
| Coupling bush | STAINLESS STEEL |
| Actuator | Air Torque pneumatic actuator, coating A |
| Ball valve | For Pekos ball valves of type |
| KP-2502 / KP-2506 / KP-2510 / KP-2520 | |
| KP-2525 / KP-2535 / KP-2528 / KP-2538 | |
|
Actuators
|
|
| selected at | pilot pressure of 6 bar. |
|
|
|
|
For order specify fully automated ball valve
|
|
|
- Item No. ball valve (see section on ball valves)
|
|
|
- Item no. automation set
|
|
|
- Safety factor 1.5
|
|
|
- Differential pressure across the valve of 16 bar
|
|
|
|
|
|
Please contact us for automation kits for cast iron ball valve type KP-2508.
|
|
