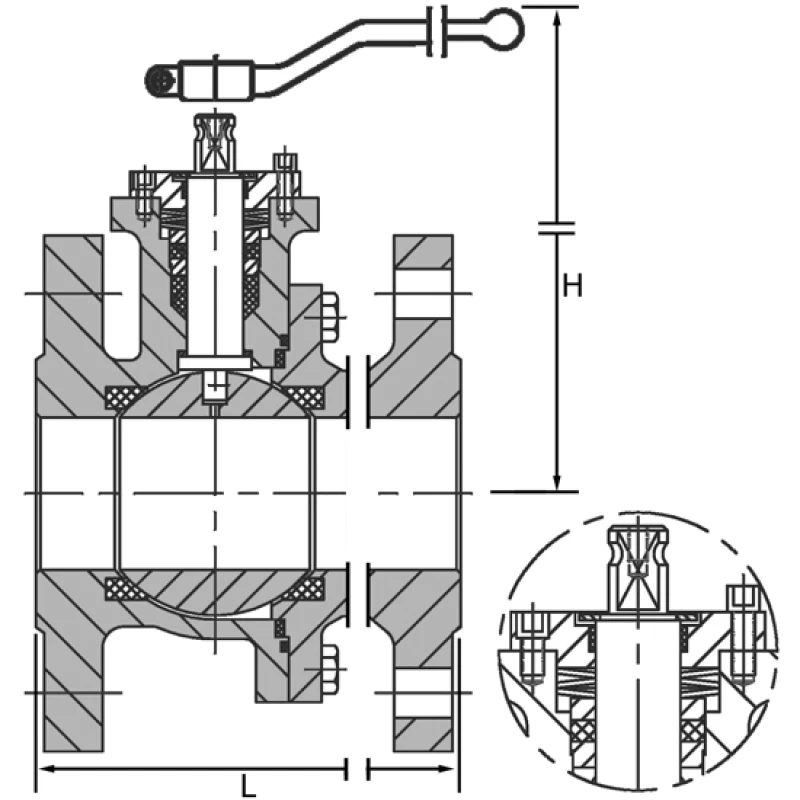

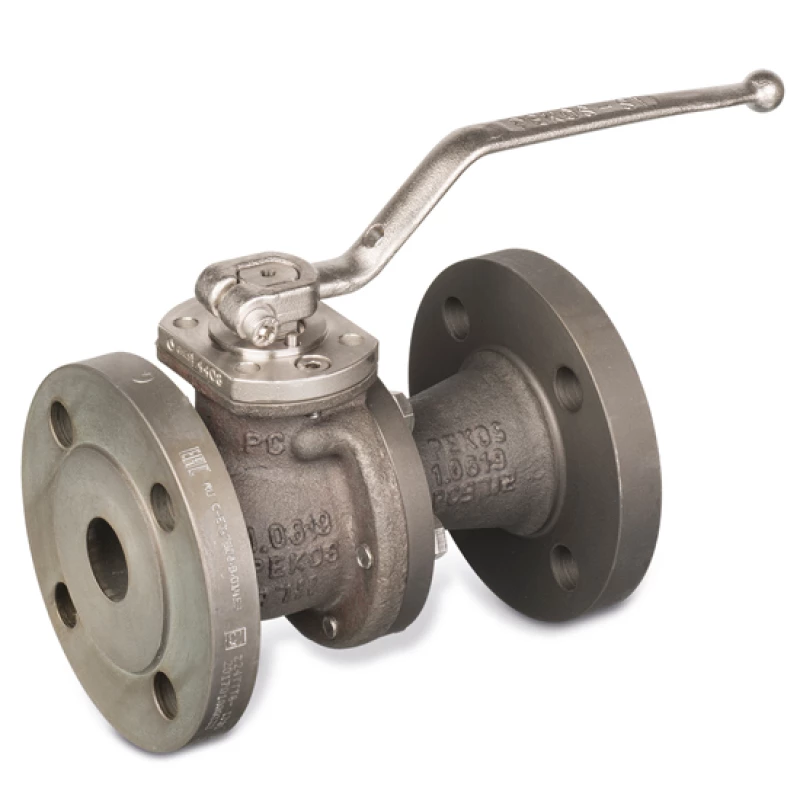

Steel Pekos ball valve | KP-2502
Flange connection PN 16 / PN 40, full bore, 2-piece
Suitable for: water, oil, air, gas, condensate, steam, hydrocarbons
- Long build length.
- Anti-static, spindle resistant to "blow-outs. Spindle seal with TA-Luft approval.
- Features ISO 5211 top flange for easy mounting of a control unit or spindle extension.
- SIL3 IEC61508.
- ATEX 94/9/EC.
- Fire safe EN ISO 10497.
Options
- graphite-filled or fiberglass-reinforced sealing elements
Also available
- complete with pneumatic or electric operation, see automation set Pekos ball valves
Specifications
| Type | KP-2502 |
| Material | Cast steel EN-GP240GH |
| Pressure class | PN 40 / PN 16 |
| Bullet | Stainless steel GX5CrNiMo19-11-2 |
| Spindle | Stainless steel X5CrNiMo17-12-2 |
| Handle | WCB |
| Div.elements | Modified PTFE |
| Spindle seal | PTFE+FG |
|
|
|
| Face to face | EN 558-1 series 1 |
| Connection | EN 1092-01 |
|
|
|
| Temperature | -10°C to +240°C (pressure and temperature dependent) |
