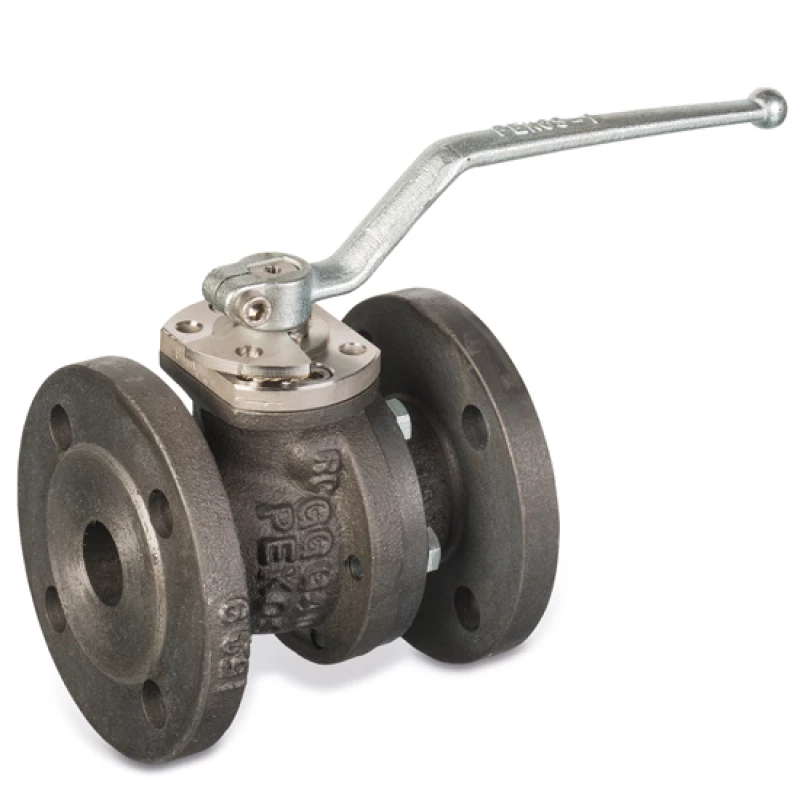

Nodular cast iron Pekos ball valve | KP-2508
Flange connection PN 16, full bore, 2-piece
Suitable for: water, oil, air, gas, condensate
- Short build length.
- Anti-static, spindle resistant to "blow-outs," spindle seal with TA-Luft approval.
- Features ISO 5211 top flange for easy mounting of a control unit or spindle extension.
Options
- graphite-filled or fiberglass-reinforced sealing elements
Also available
- complete with pneumatic or electric operation, see automation set Pekos ball valves
Specifications
| Type | KP-2508 |
| Material | Nodular cast iron EN-GJL-400-15 |
| Pressure class | PN 16 |
| Bullet | Stainless steel G-X 20 Cr 14 |
| Spindle | Stainless steel X20Cr13 |
| Handle | WCB |
| Div.elements | Modified PTFE |
| Spindle seal | PTFE+FG |
|
|
|
| Face to face | EN 558-1 series 14 (DIN 15 to DN 100) |
| EN 558-1 Series 15 (DN 125 to DN 250) | |
| Connection | EN 1092-02 |
|
|
|
| Temperature | -10°C to +240°C (pressure and temperature dependent) |
|
|
|
| Note | Depending on the application, a mechanical drive is recommended from DN 150 onwards. |
