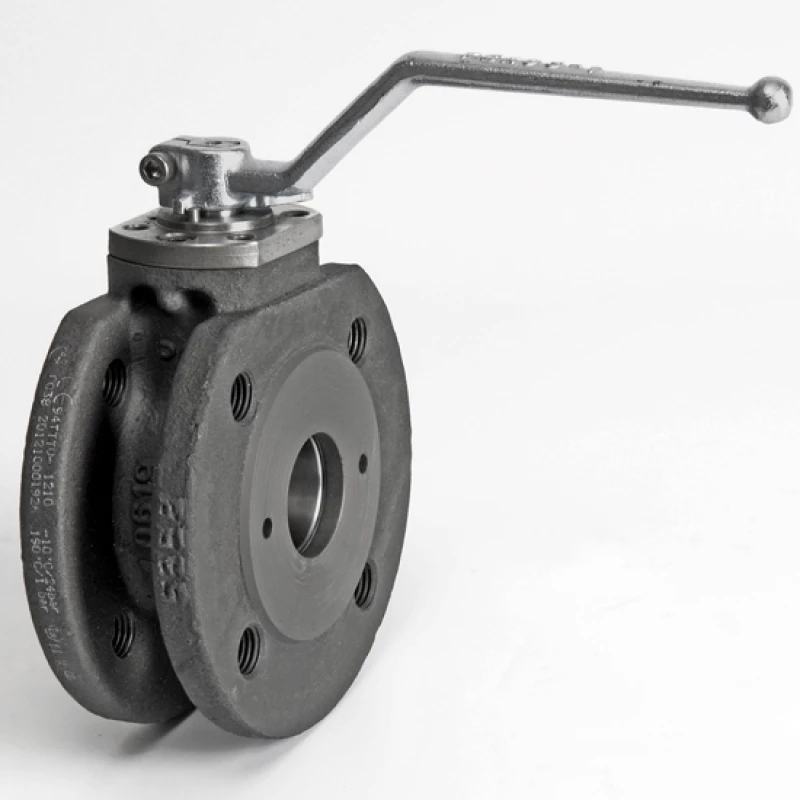

Steel Pekos compact ball valve | KP-2530
Flange connection PN 16 / 40, full bore, 1-piece body
Suitable for: water, oil, air, and hydrocarbons
- Full bore, very short build length.
- Anti-static, spindle resistant to 'blow-outs, spindle seal with TA-Luft approval.
- Features ISO 5211 top flange for easy mounting of a control unit or spindle extension.
- ATEX 94/9/EC.
- SIL3 IEC61508.
Also available
- stainless steel model type KP-2531
- complete with pneumatic or electric operation, see chapter Automation
- with worm gearbox
- ANSI model
- fire safe model
Specifications
| Type | KP-2530 |
| Material | Cast steel EN-GP240GH |
| Pressure class | PN 16 / 40 |
| Bullet | Stainless steel GX5CrNiMo19-11-2 |
| Spindle | Stainless steel X5CrNiMo17-12-2 |
| Handle | WCB |
| Div.elements | Modified PTFE |
| Spindle seal | PTFE+FG |
|
|
|
| Connection | EN 1092-01 |
|
|
|
| Temperature | -10°C to 240ºC (pressure and temperature dependent) |
