Automation kit ball valve | KLINGER Intec

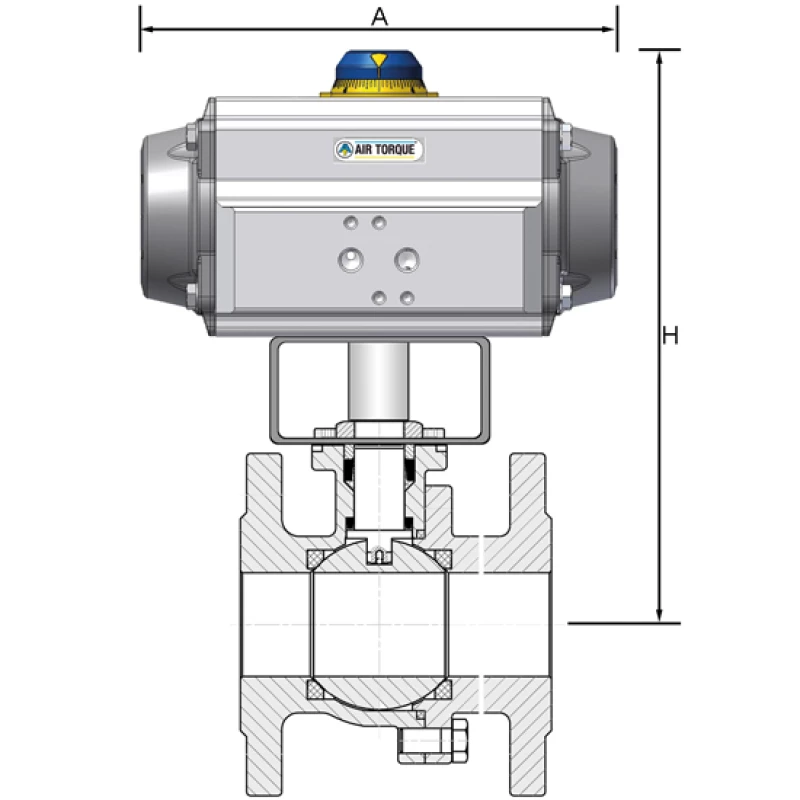

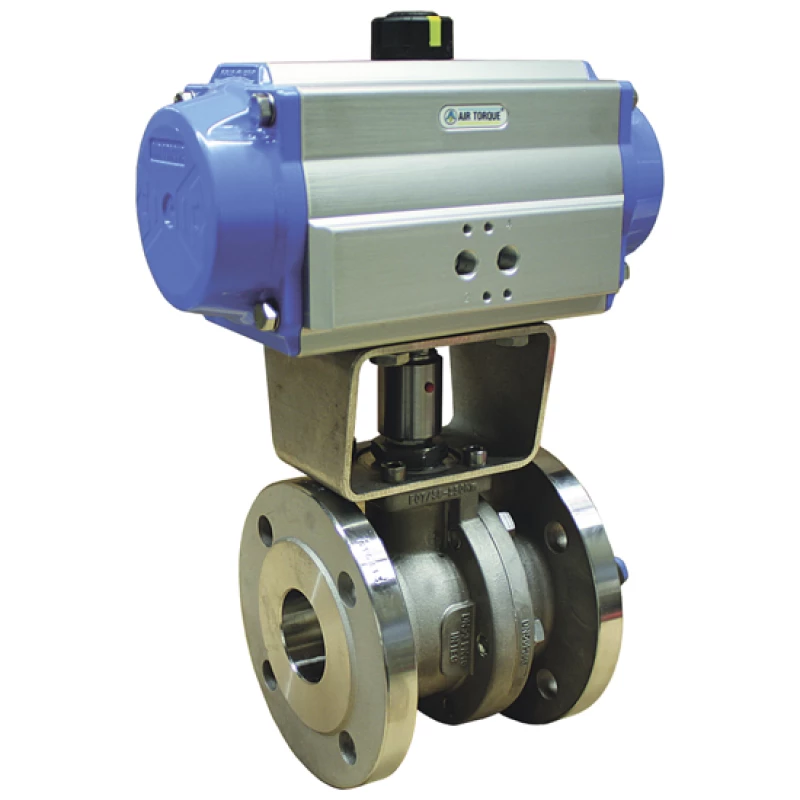

Air Torque actuator A and E coating incl. bridge piece and coupler
Suitable for: standard automated applications
- Air Torque pneumatic actuators are fully standardized.
- Excellent corrosion resistance.
- Adjustable travel stops for open and closed position.
- Actuators selected at control pressure of 6 bar and delta P ball valve 16 bar.
- Safety factor: 1.5.
- Seat: KFGN / KFCM.
- With water at room temperature.
Urgency or questions about availability?
Select a model:
Selecteer een uitvoering
Specifications
| Type | KLINGER Intec |
| Material | |
| Mounting bracket | STAINLESS STEEL |
| Coupling bush | STAINLESS STEEL |
| Actuator | Air Torque pneumatic actuator, coating A or E |
| Ball valve | For KLINGER Intec ball valves of type |
| KP-2641 / KP-2642 / KP-2648 150# | |
| KP-2651 / KP-2652 / KP-2658 150# | |
| (300# on request) | |
|
|
|
|
For order specify fully automated ball valve
|
|
|
- Item No. ball valve (see section on ball valves)
|
|
|
- Item no. automation set
|
|
