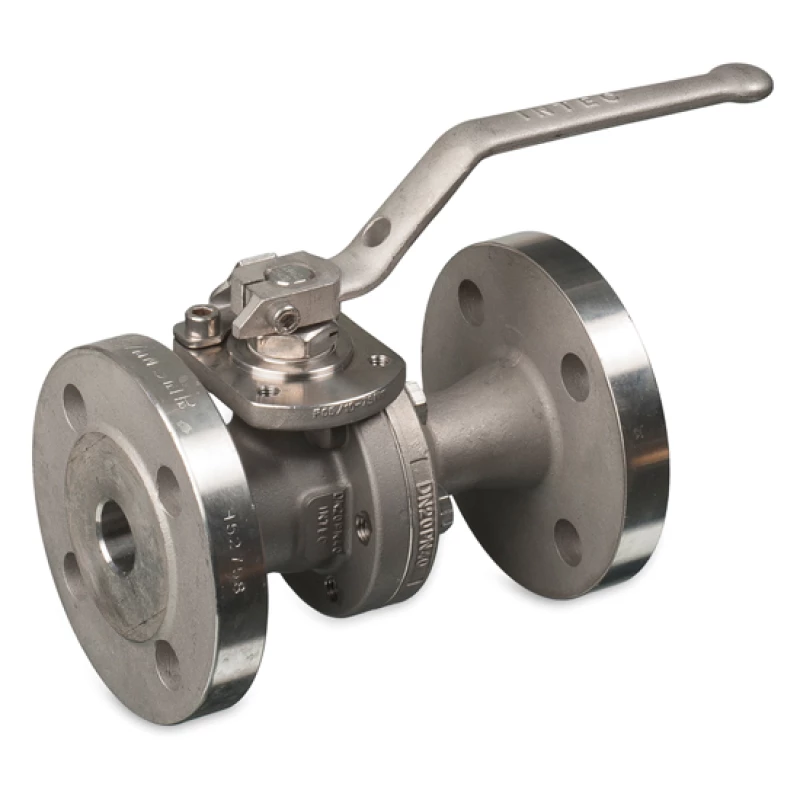

Stainless steel Intec K200 ball valve | KP-2651
Flange connection PN 40 / PN 16, full bore, 2-piece
Suitable for: all the stringent requirements of the chemical industry
- Long build length.
- Anti-static, spindle resistant to "blow-outs.
- Top flange connection according to DIN EN ISO 5211.
- TA-Luft according to VDI 2440.
- Unique maintenance-free spindle seal certified to TA-Luft / VDI 2440.
- SIL3 IEC61508.
- ATEX 94/9/EC.
- PED 97/23/EC.
- Fire Safe according to API 607 and ISO 10497.
Also available
- complete with pneumatic or electric operation, see automation set Intec ball valves
- spindle extension
Specifications
| Type | KP-2651 |
| Material | Stainless steel GX5CrNiMo19-11-2 |
| Pressure class | PN 40 / PN 16 |
| Bullet | Stainless steel GX5CrNiMo19-11-2 |
| Spindle | Stainless steel X2CrNiMoN22-5-3 |
| Handle | Up to DN80 stainless steel GX5CrNiMo19-11-2 |
| DN80 and larger Stainless steel GX5CrNi19-10 / Steel galvanized | |
| Div.elements | KFGN (Glass fiber reinforced TFM, nitrogen sintered) |
| / KFM (modified PTFE) | |
| Spindle seal | KFGN / Graphite / KFAM (TFM with antistatic filler) |
|
|
|
| Face to face | EN 558-1 series 1 |
| Connection | Flange connection EN 1092-1 |
| Temperature | -40°C to +220°C (pressure and temperature dependent) |
