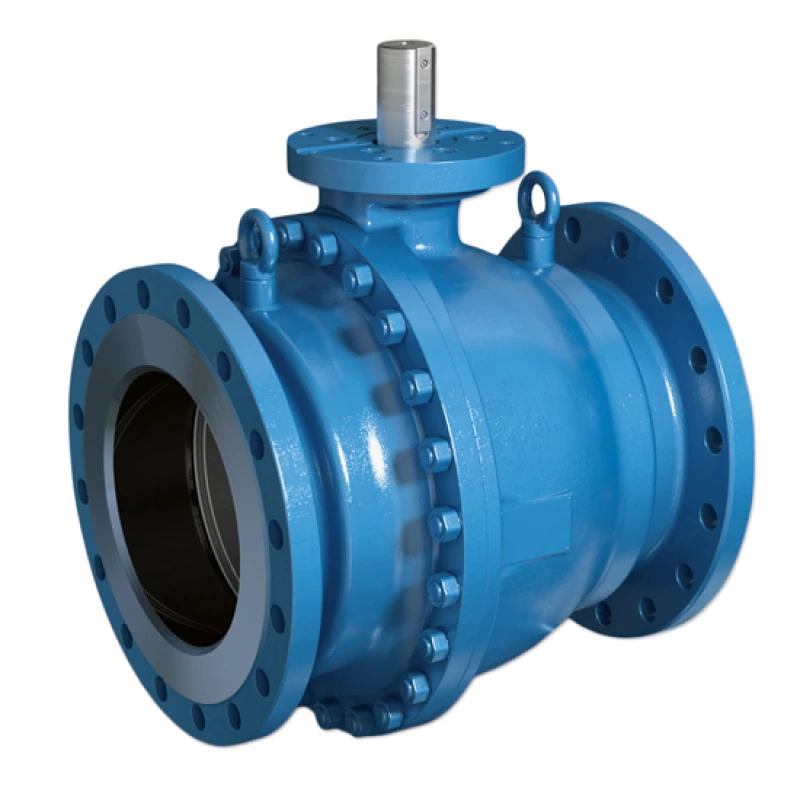

Stainless steel KLINGER Ballostar KHI ball valve | KP-2401
Flange connection PN 16, full bore, 2-piece
Suitable for: water, oil, gases, steam, hydrocarbons, district heating etc.
- Unique sealing system with spring-loaded sealing elements enclosed by stainless steel.
- Ball at bottom bearing. spindle equipped with bearing bushings.
- SIL2 IEC61508.
Options
- metallic sealing system or special model for specific applications
Also available
- model with flange connection PN25
- model pressure class PN40, flange connection PN40
- fire Safe model, Gas model
- complete with pneumatic, hydraulic or electric controls
- fitted with flush connections
- DN150 and DN200 with handle operation
- welding connection
- model with reduced bore
Specifications
| Type | KP-2401 |
| Material | Stainless steel GX5CrNiMo19-11-2 |
| Pressure class | PN 25 |
| Bullet | Stainless steel X5CrNiMo17-12-2 |
| Spindle | stainless steel X14CroS17 |
| Operation | Worm gear box or free shaft |
| Div.elements | KFC carbon reinforced PTFE in spring-loaded stainless steel element |
| Spindle seal | KFC and FPM O-rings |
|
|
|

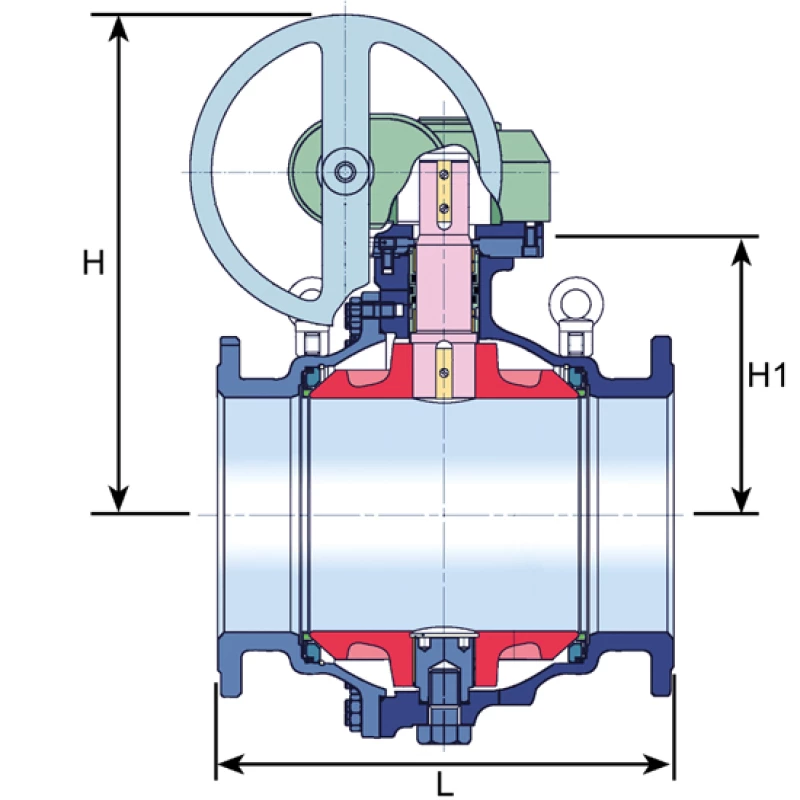

| Face to face | full bore EN 558-1 Series 12 |
| reduced bore EN 558-1 Series 27 | |
|
|
|
| Connection | EN 1092-1 |
| Temperature | -10°C to +230°C (pressure and temperature dependent) |
|
|
|
|
Also available with PN 25 flange connection or pressure class PN 40 with PN 40 flange connection.
|
|
Contact
For more information about our Ball valves. please contact us at:
