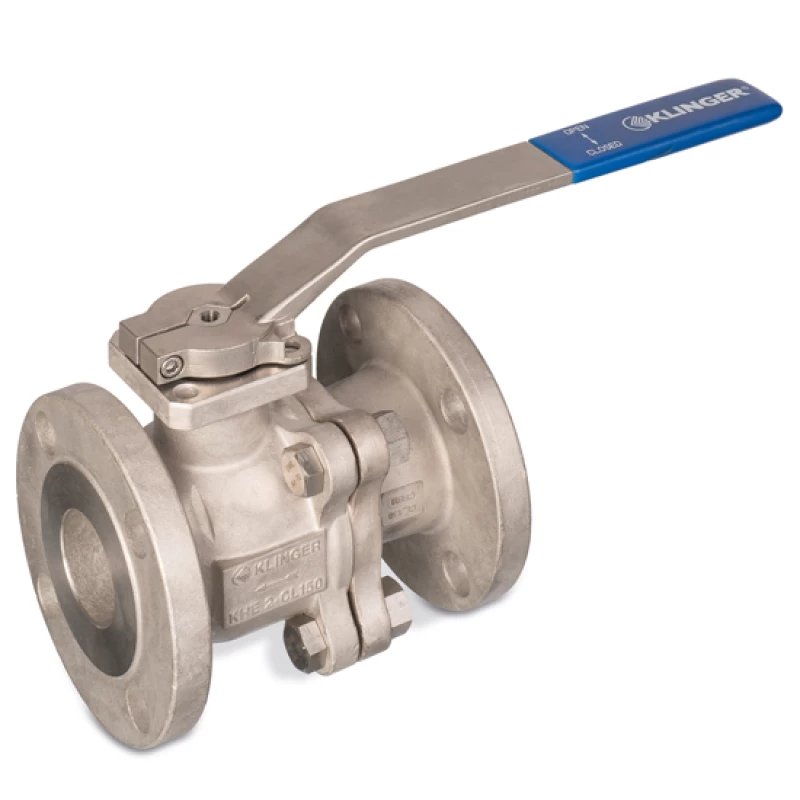

Stainless steel KLINGER Ballostar KHE ball valve | KP-2420
Flange connection PN16/40, full bore, 2-piece, short length of construction
Suitable for: water, oil, gases, steam and hydrocarbons
- Unique sealing system with spring-loaded sealing element enclosed by stainless steel.
- Equipped with ISO 5211 top flange for easy mounting of a control unit.
- Provision for locking.
- SIL2 IEC61508.
Options
- metallic sealing system
- gas or oxygen model
- complete with pneumatic or electric control, see automation set Ballostar ball valves
Specifications
| Type | KP-2420 |
| Material | Stainless steel GX5CrNiMo19-11-2 |
| Pressure class | PN 16/40 |
| Bullet | RVS X5CrNiMo17-12-2 / RVS GX5CrNiMo19-11-2 from DN65 onwards |
| Spindle | Stainless steel X14CrMoS17 |
| Handle | Stainless steel 13% Cr |
| Div.elements | KFC carbon reinforced PTFE in spring-loaded stainless steel element |
| Spindle seal | KFC/RVS labyrinth |
|
|
|
| Fire Safe | according to API Standard 607 and EN ISO 10497 |
|
|
|
| Face to face | short length of construction EN 558-1 |
| Connection | Flange connection EN 1092-1 |
|
|
|
| Temperature | -60°C to +300°C |
