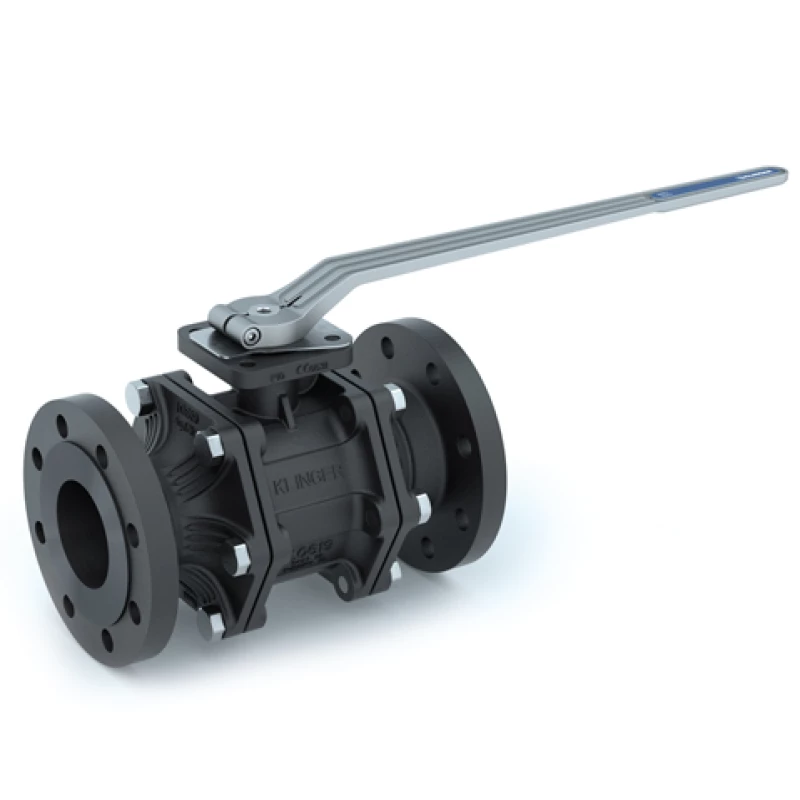

Steel KLINGER Ballostar ball valve, metal-sealed | KP-2471-M

Suitable for: water, oil, gases, steam, hydrocarbons and abrasive media

Maintenance-free
Ball with a cylindrical full bore.
Anti blow-out spindle.
Nastable Gland packing.
Standard model fire safe certified EN10497 and API607.
Standard model TA luft VDI 2440/ISO15848 certified.
SIL2 IEC61508.
Robust construction excellent resistance to thermal stress.
Unique sealing system with spring-loaded sealing elements enclosed by stainless steel.
Metal seal has leakage of approx. 0.0001% of the Kvs.
Modular design and selection of various components.
To be maintained without disassembly from the pipe.
Anti static design in accordance with ISO7121 / EN1983.
Automation possible afterwards, top flange in accordance with ISO EN 5211.
Special KACP coating.
Lockable handle (by padlock).

Additional information

Complete with pneumatic or electric controls, see Ballostar ball valves automation kit.

Type	KP-2471-M
Material	Cast steel EN-GP240GH/1.0619
Pressure class	PN 40
Bullet	Stainless steel 1.4401/1.4408 fitted with 30Mu hard chrome
Spindle	STAINLESS STEEL 1.4104 ( ANSI430F)
Handle	STAINLESS STEEL
Div.elements	Metal-sealing stainless steel X3CrNUMo17-13.3 with geellitized sealing surface in spring-loaded stainless steel element
House Seal	Graphite+ KLINGERSilC4430®
Spindle seal	graphite + Aflas

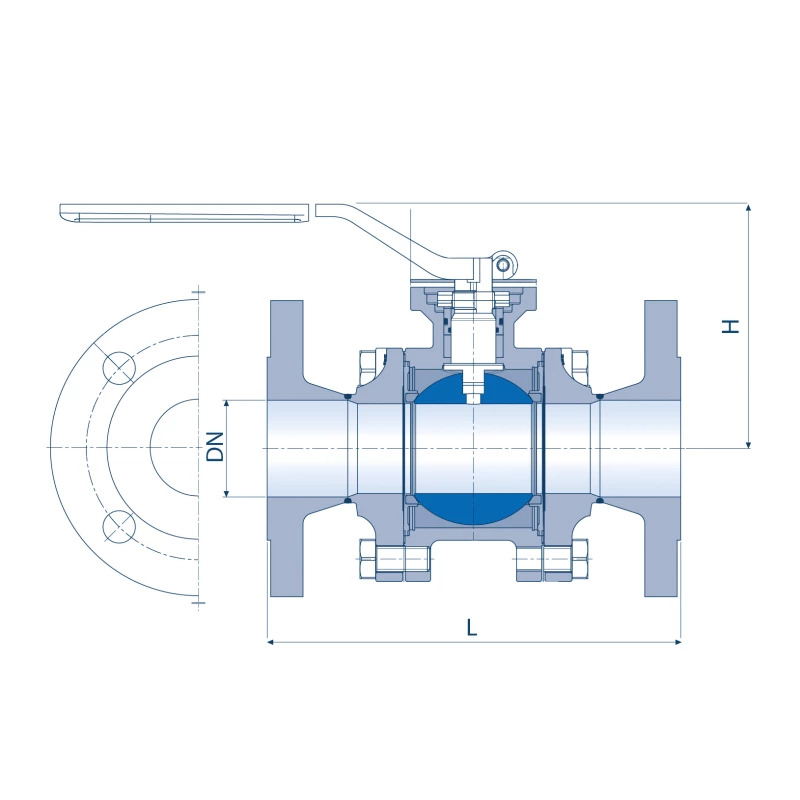

Face to face	EN 558-1 series 1
Connection	RF Flange connection according to EN1092-1

Temperature	-10°C to +400°C (pressure and temperature dependent)
